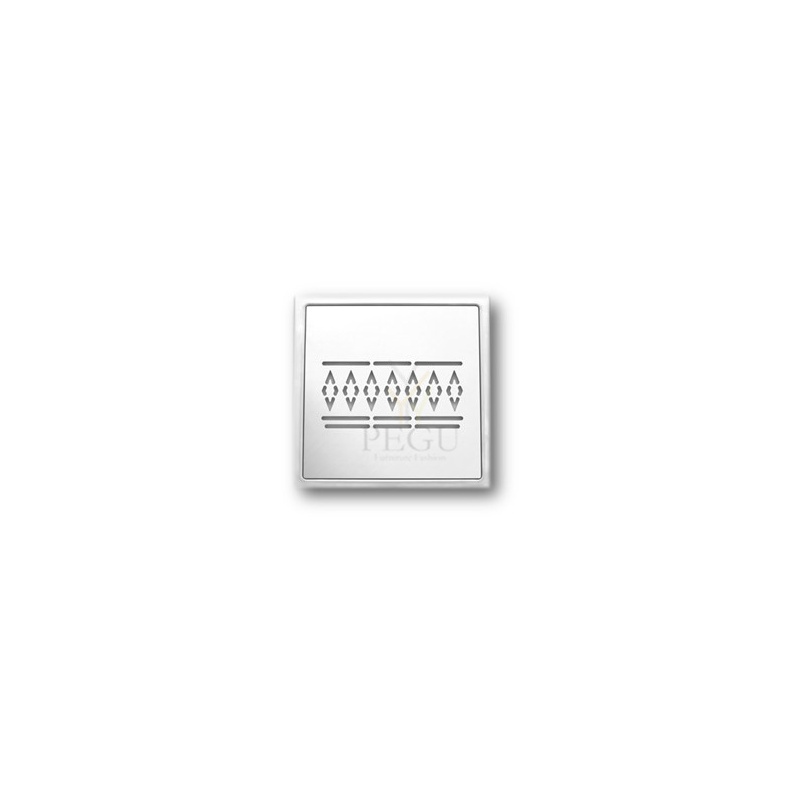

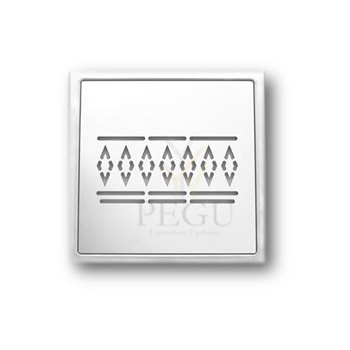

LVI disain roostevaba kaas 197x197x4 JUSSI

Tootekood: LVI3316956
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind:
55,92 €
Kuumakse alates: 4,75 €
Kogus: - +

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.

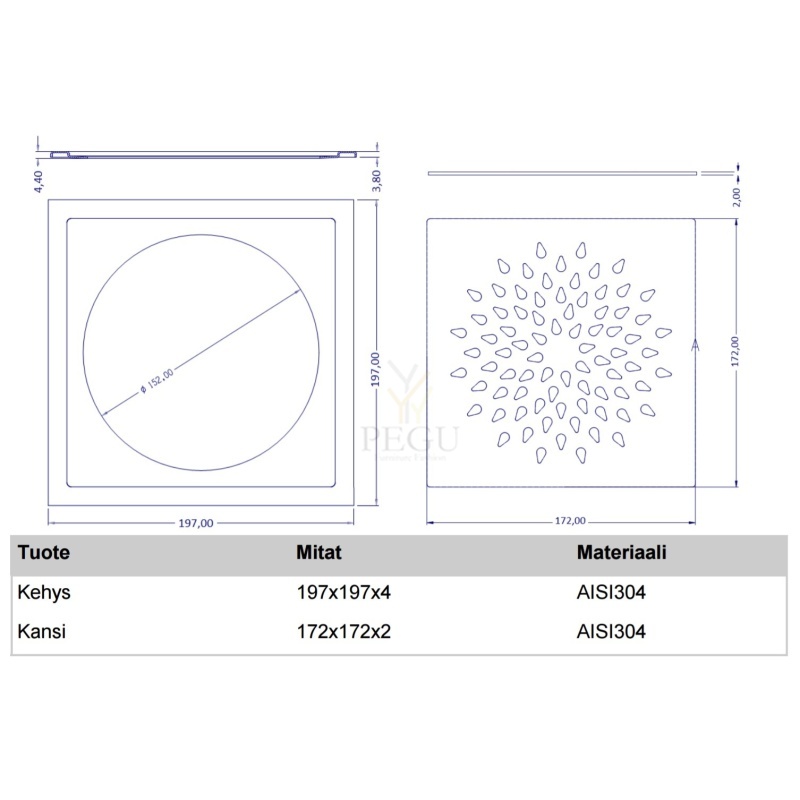

Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Sarnased tooted

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVI3316785 ,   Tarneaeg: 7-14 päeva
55,92 €

Vieser One 6004513 Horisontaaltrapp EXTRA madal 50 1x32 jalgadega



Vieser One horizontal drain DN50 1x32 extra low with support legs

HVAC No. 3317308


The lowest floor drain on the market 69 mm

The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s The low structure is a significant benefit in both renovations and new construction.

Thanks to the efficient flow rate, the drain is suitable for use in both showers and bathtubs, and it is compatible with all Vieser drain covers and extension rings. The drain has one 32 mm side inlet.

Water trap based on membrane technology

The water trap is based on innovative membrane technology. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.

Hygienic and quiet

The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.

The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.

The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:

The watertightness and proper functioning of Vieser floor drains have been proven through rigorous tests according to the standard EN 1253-2, on which the type approvals granted by RISE are also based.

The package includes the drain, water trap, casting shield, clamping ring, support legs and a tool for installing the clamping ring.



Technical specifications

Vieser No.
6004513
HVAC No.
3317308
EAN
6430066742332
Package (box/pallet)
10/80
Package dimensions
35 x 25 x 10 cm
Package weight
0,8 kg
Material
Polypropylene (PP)
Usage
Suitable for regular residential wastewater sewage systems in accordance with the Finnish Ministry of the Environment’s decree on buildings’ water and sewer systems.
Flow
1,2 l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, membrane flange and gratings/covers. The drain has one 32 mm side inlet. The package includes the drain, water trap, casting shield, clamping ring, support legs and a tool for installing the clamping ring.








Tootekood: AKV6004513 ,   Tarneaeg: 3-7 päeva
52,87 €

Horisontaalne trapp VIESER 52615 75 mm

Vieser low model floor drain DN 75

HVAC No. 3315972


Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

Technical specifications

Vieser No.
52615
HVAC No.
3315972
EAN
6418685526151
Package (box/pallet)
24/192
Package dimensions
20 x 11 x 20 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,5l/s
General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.






Tootekood: AKV52615 ,   Tarneaeg: 3-7 päeva
18,30 €

Vieser 51205 Tõsterõngas 25-88mm

Vieser extension ring 25-88mm

HVAC No. 3318415


Compatible with all Vieser floor drains. Installed below the waterproofing.

Raises the floor drain by 25–88 mm.

The package contains the extension ring, a grey lip seal and a white clamping ring.



Tootekood: AKV51205 ,   Tarneaeg: 3-7 päeva
13,22 €

Vieser 6001188 DOT Accoya õlitatud D600MM ümmargune



Vieser Dot Cover Accoya, Oiled

HVAC No. 3315995
EAN 6430066741649

One cover option offered for the Vieser Dot Design floor drain system is Vieser Dot ⌀600mm Accoya, Oiled. Accoya is wood that has been treated using natural methods. Although the treatments provide the covers with a natural protection, we recommend treating the wooden covers with a protective agent once or twice a year.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Accoya wood, produced under the Accoya trademark, is acetylated radiata pine. Acetylation refers to a process in which wood is treated with acetic anhydride. Accoya is naturally renewable, and it is also more durable than many threatened tropical hardwoods. Accoya has been granted numerous environmental certificates, including the Nordic Swan Ecolabel. All Accoya® wood is procured from well-managed forests that meet environmental requirements and which have been granted FSC, PEFC or other regional certification.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Technical specifications

Vieser No.
6001188
HVAC No.
3315995
EAN
6430066741649
Package (box/pallet)
1/10
Package dimensions
66 x 4,5 x 66cm
Package weight
12,5kg
Material
Accoya, Oiled
The size of the wooden lath in the floor drain cover
32,72mm
The size of the openings in the floor drain cover
4mm
General information

The package contains: The Vieser Dot ⌀600 mm Accoya cover and the Vieser lifting tool to make cleaning the drain easier.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Tootekood: AKV6001188 ,   Tarneaeg: 3-7 päeva
1134,60 €
