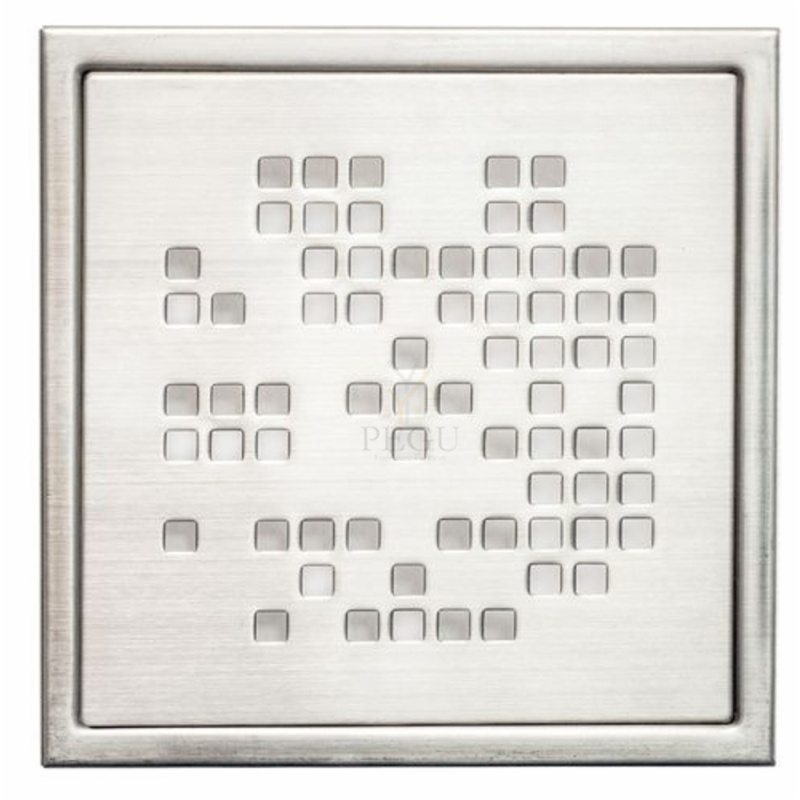

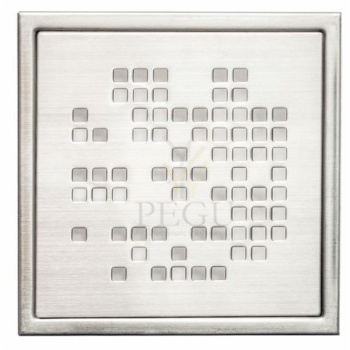

LVI disain roostevaba kaas 197x197x4 RUUTU

LVI disain roostevaba kaas 197x197x4 TÄHKÄ Must

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.

Lattiakaivon kannen lisätiedot:

Valmistaja: LVI-Pörssi
Kehyksen ulkomitat: 197 x 197 mm
Korkeus 4 mm
Materiaali: ruostumaton teräs (AISI304)
Väri: Musta

Tootekood: LVI3316966 , Tarneaeg: 14-21 päeva

55,92 €

Trapikaas VIESER LINK 6005482 reguleeritava terasraamiga 197x197 RST

Trapikaas VIESER LINK 6005482 reguleeritava terasraamiga 197x197

Roostevaba teras

Vieser Link with adjustable steel frame 197x197

HVAC No. 3317316

EAN 6430066742943

NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

Type approved based on European standard
(EN 1253) – Withstands up to 300 kg, excellent flow properties
Strong and pleasant underfoot – remains firmly in place
Manufactured in Finland
Compatible with all Vieser floor drains
Adjustable steel frame – easy to install

The package includes the Vieser stainless steel Link square grating and adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain, for a total adjustment range of 30 mm.

Technical specifications

Vieser No.

6005482

HVAC No.

3317316

EAN

6430066742943

Package (box/pallet)

20/480

Package weight

0,6

Material

Stainless steel (AISI 304)

Durability

300 kg

Tootekood: AKV6005482 , Tarneaeg: 3-7 päeva

88,45 €

Vieser One 52641 Horisontaalne kuivtrapp 32/40

Vieser One 52641 Horisontaalne kuivtrapp 32/40

Vieser One untrapped drain DN32/40 without support legs

HVAC No. 3315942

Suitable for sewerage systems for regular wastewater.

The Vieser One untrapped drain is part of the Vieser floor drain system.

The untrapped drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool.

An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

You can download water proofing pictures as a PDF & DWG file.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Vieser untrapped drain is compatible with Vieser design floor drains:

Technical specifications

Vieser No.

52641

HVAC No.

3315942

EAN

6418685526410

Package (box/pallet)

15/180

Package dimensions

24 x 14,5 x 22,5 cm

Package weight

0,54 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

0,6l/s

General information

The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating.

The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

Tootekood: AKV52641 , Tarneaeg: 3-7 päeva

25,42 €

Horisontaalne trapp VIESER 52615 75 mm

Vieser low model floor drain DN 75

HVAC No. 3315972

Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

Technical specifications

Vieser No.

52615

HVAC No.

3315972

EAN

6418685526151

Package (box/pallet)

24/192

Package dimensions

20 x 11 x 20 cm

Package weight

0,5 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,5l/s

General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.

Tootekood: AKV52615 , Tarneaeg: 3-7 päeva

18,30 €

Vieser nurgatrapikaas 6005080 Corner Modern 376 x 376 x 526 RST

Roostavaba teras

Vieser Corner Modern triangular floor drain 376 x 376 x 526

HVAC No. 3317311

An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Modern adds a personal touch and a polished look to your bathroom.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system

Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
Suitable for both new construction and renovations.
To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an easy-to-use installation template.
The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate).
Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser Corner floor drain system - Tiling example

(DWG)Vieser Corner floor drain system - Tiling example

Technical specifications

Vieser No.

6005080

HVAC No.

3317311

EAN

6430066742790

Package (box/pallet)

12/144

Package dimensions

410 x 410 x 580

Package weight

1,2 kg

Material

Stainless steel (AISI 304)

Durability

200kg

Usage

For tiled floors on top of the floor drain. Installation takes place when the floor is being tiled. The gap between the floor drain and the triangular grating must not be sealed.

General information

The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an installation template.

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system

Tootekood: AKV6005080 , Tarneaeg: 3-7 päeva

303,98 €
