Mediclinics käetugi parem sinale/põrandale, roostevaba teras AISI304 poleeritud
General description
-

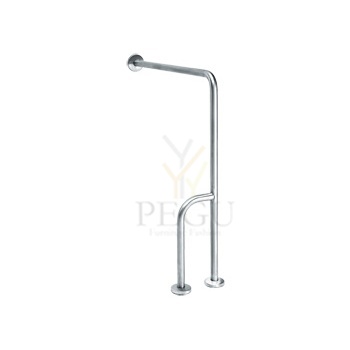

Wall-floor grab bar, with three support points, made of a diameter of 32 mm AISI 304 stainless steel tube, bent in an "L" shape at 90o and with a 32mm diameter lateral arm, welded on the lower part of the grab bar and also bent at 90°.
-
With snap flange covers that conceal the installation screws, improving the aesthetics of the bars once installed on the wall.
-
These grab bars offer a great safety and comfort to the user, helping to make the bathroom much safer for the elderly or those with reduced
mobility. Models suitable for public use.
-
Well suited for keeping bathrooms and public enclosures barrier-free.
-
Highest durability and great resistance to rusting.
-
Optionally, these grab bars can be electrically isolated, installing the electrical isolation kit code KA0020.
-
Supplied with plugs and screws to fix the bar to a brick wall.
Components and materials
-
BSD020C: right hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSI020C: left hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSD020CS: right hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
BSI020CS: left hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
TUBING: made of a 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screw holes for wall mounting.
-
SNAP FLANGE COVER: three units made of AISI 304 stainless steel, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
-
Failid
Seebidosaator
poleeritud
R/V teras AISI 304
1,5L
Vandaalikindel lukuga korpus
*R/V teras 0,8 mm, poleeritud
*AISI304
*Paigaldusplaat seinale kinnitamiseks
Nagi oksaga.
harjatud
AISI 304
Käetugi 845mm sirge
R/V teras AISI304
d 32mm
toru paksus 1,5mm
Pelavajutav äärikukate d 81mm
