Ø 45 x 170 x 155 mm
normal pressure

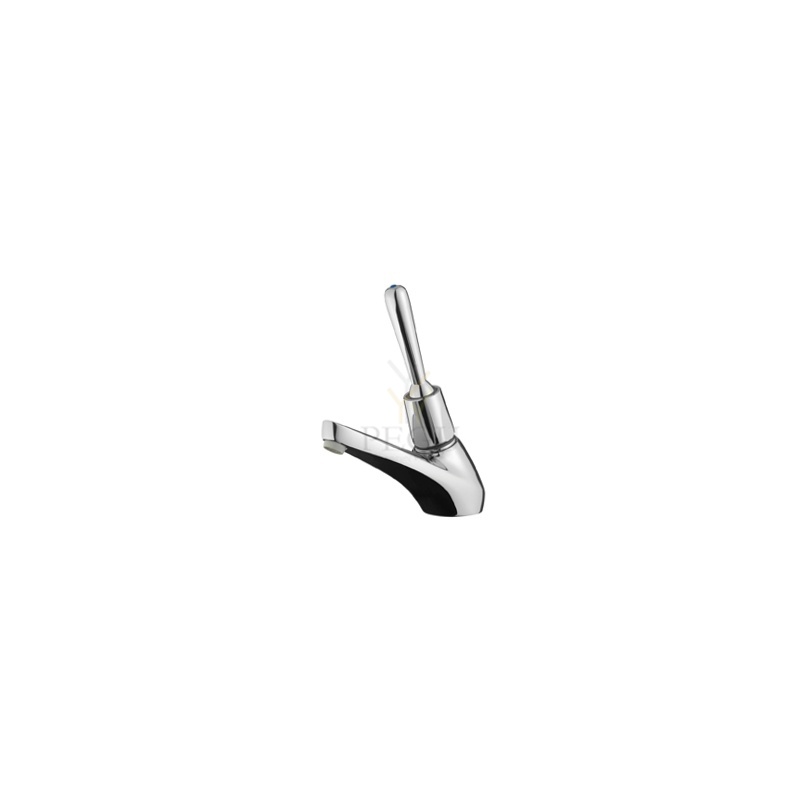

• Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
• Version: normal pressure. Operating pressure 2–6 bar.
• Solid stainless steel body; visible surfaces satin finished.
  Further available surfaces: see below.
• High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
• Neoperl® air bubble spray M22 x 1 mm.
• Design height: 171 mm
  Outlet height: 87 mm
  Projection: 98 mm
  Length of lever: 40 mm
• Wear parts can be replaced as modules.
• Installation dimensions: Ø 33-40 mm
  Surface thickness max. 40 mm
• Mounting: With one counternut.
• Delivery includes fixing material and two flexible connecting hoses clad in stainless steel.

• Weight (in kg): 1,60

Ø 45 x 333 x 107 mm

• Triple reserve toilet roll holder, right angled, in solid, germ-reducing and easy-care stainless steel (AISI 303), satin finished.
  Further available surfaces: see below.
• Designed for up to three standard toilet rolls with dimensions:
  Outer diameter max. 125 mm
  Width max. 100 mm
  Core diameter min. 38 mm
• Concealed anti-theft two-point rosette wall mounting.
• Holder diameter 20 mm, length 333 mm.
• Mounting with two screws.
• Delivery includes fixing material.

• Weight (in kg): 0,80

86 x 298 x 121 mm

• Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• With EWAR® eModule touch-free operated and non-drip soap pump with 850 ml plug-in tank.
• Designed for standard liquid soaps or hand lotions.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries. Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With three screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material and batteries.

• Weight (in kg): 1,8
