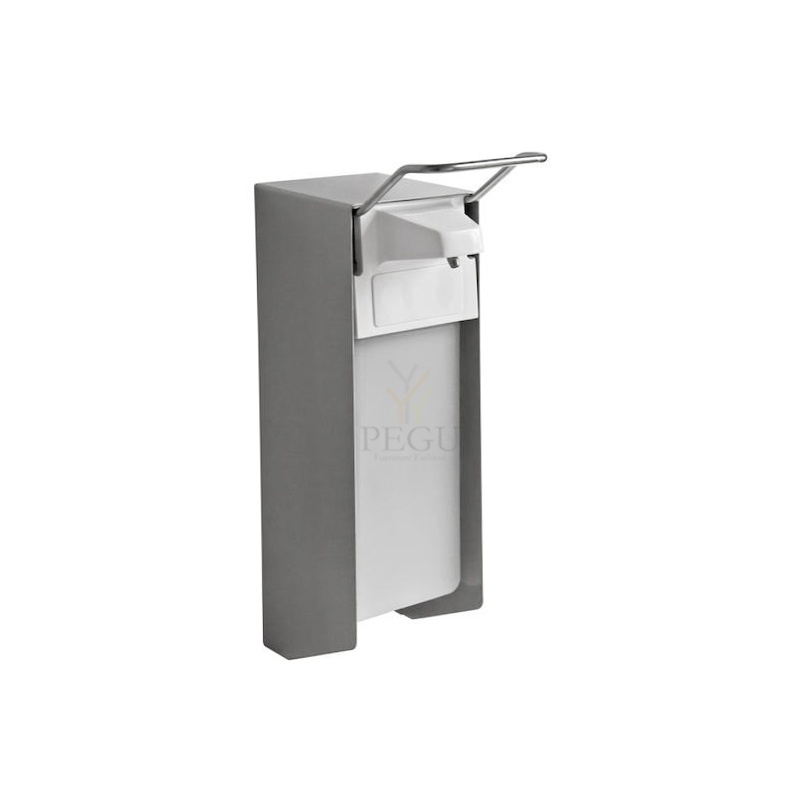

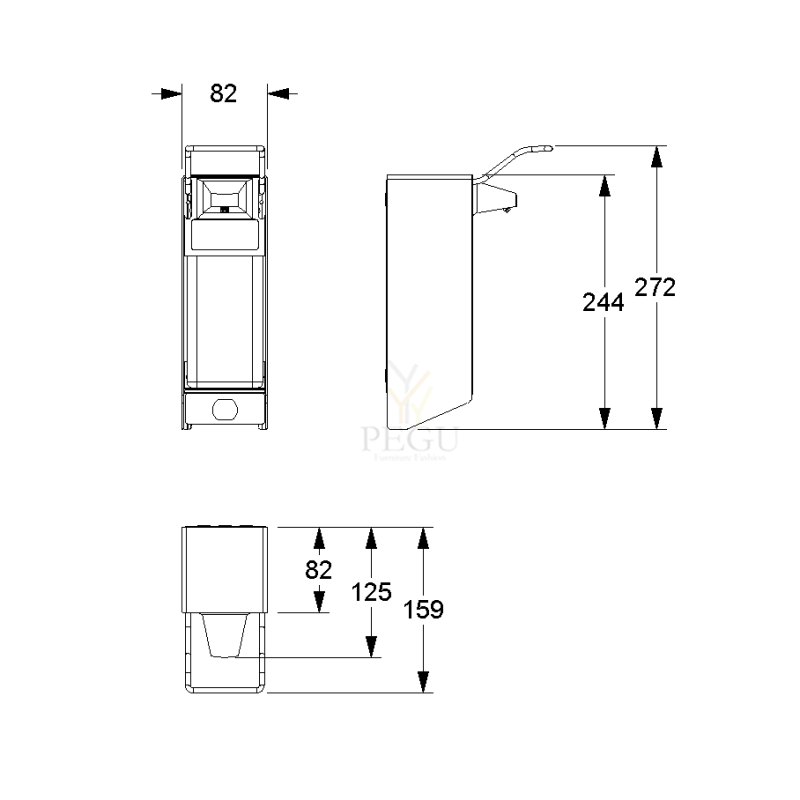

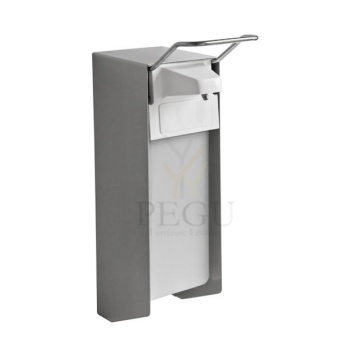

Normbau 2290044 desinfektandi ja seebi dosaator, 82 x 159 x 272mm, 500 ml

Seebidosaator

süvistatav

kroomitud messing

0,95L

Ava laiapinnas d25mm

86 x 298 x 121 mm

• Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• With EWAR® eModule touch-free operated and non-drip soap pump.
• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With three screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries and first fill with soap.

• Weight (in kg): 2,8

148 x 448 x 120 mm
950 ml tank

• Disinfectant dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed. Further available surfaces: see below.
• One-hand operated and non-drip disinfectant pump with 950 ml tank.
• Tank with large, lockable refill opening.
• Designed for standard disinfectants.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, removable front panel with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts and front panel can be replaced as modules.
• Installation dimensions: 150 x 450 x 110 mm
• Mounting: With four screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material and first fill with soap.

• Weight (in kg): 3,0

Ø 30 x 86 mm
projection 90 mm

• Tabletop disinfectant dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• Solid stainless steel body; visible surfaces satin finished. Further available surfaces: see below.
• Design height:86 mm
  Outlet height: 68 mm
  Projection: 76 mm
• Non-drip disinfectant pump with 500 ml disinfectant bottle in plastics and pressure valve in stainless steel.
• Also available with 250 ml or 1000 ml containers in plastics.
• 500 ml container in stainless steel as an option for a surcharge.
• Designed for standard disinfectants.
• Refillable from above by unscrewing the top part.
• Wear parts can be replaced as modules.
• Installation dimensions: Ø 22-26 mm,
  surface thickness max. 40 mm.
• Mounting: With one counternut.
• Delivery includes fixing material.

• Weight (in kg): 0,7

Ø 30 x 86 mm
projection 90 mm

• Tabletop disinfectant dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• Solid stainless steel body; visible surfaces satin finished. Further available surfaces: see below.
• Design height:86 mm
  Outlet height: 68 mm
  Projection: 76 mm
• Non-drip disinfectant pump with 500 ml disinfectant bottle in plastics and pressure valve in stainless steel.
• Also available with 250 ml or 1000 ml containers in plastics.
• 500 ml container in stainless steel as an option for a surcharge.
• Designed for standard disinfectants.
• Refillable from above by unscrewing the top part.
• Wear parts can be replaced as modules.
• Installation dimensions: Ø 22-26 mm,
  surface thickness max. 40 mm.
• Mounting: With one counternut.
• Delivery includes fixing material.

• Weight (in kg): 0,7
