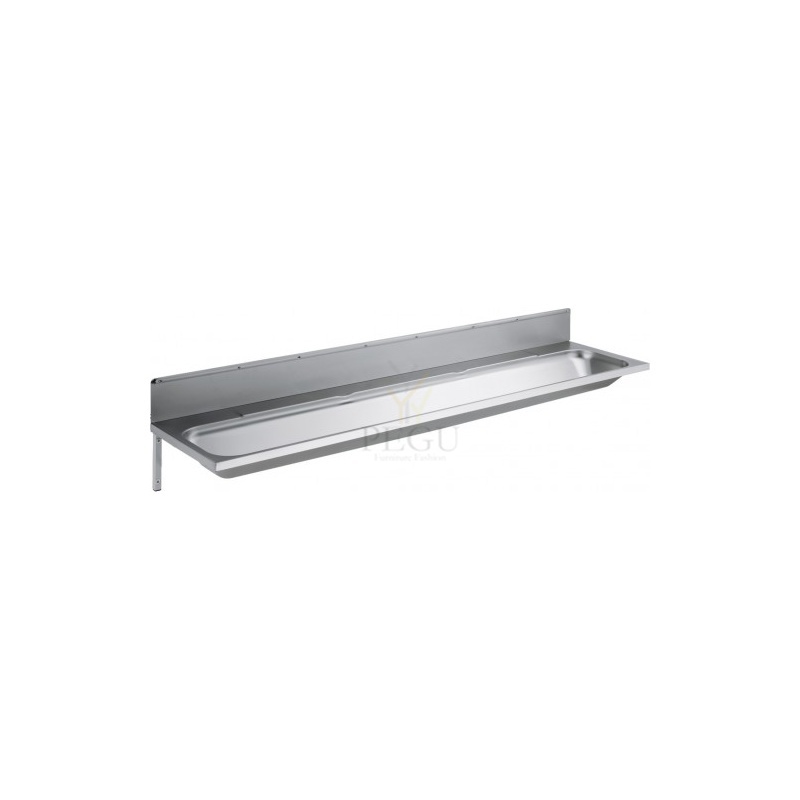

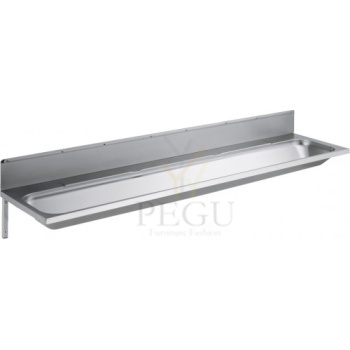

Pesurenn roostevabast terasest 1800mm Intra PV180, konsoolidega

WC poti raam loputuskastiga , antivandaalse R/V teras katega

BSAZ 5 Wall module construction for WC with vandal-resistant st.steel cover

BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).

The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover

Basic technical information
Dimensions of wall module:	(1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover:	510 × 230 × 30 mm
Water inlet:	G 1/2"
Outlet:	DN 100

Requirements for setting up the construction
Space for mounting the wall module Water inlet G 1/2" Waste pipe for outlet connection (DN 100)

Complete delivery
wall module with cistern st.steel cover with vandal-proof buttons

Tootekood: AZP-BSAZ 5 , Tarneaeg: 3-4 nädalad

1055,00 €

AZP Brno adapter 1-3 punkte

	ZAC 1/20, ZAC 1/50, ZAC 1/36L power supply

ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).

Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage:	230 V, 50 Hz
Output voltage:	12 V, 50 Hz
Power requirement:	20 VA (ZAC 1/20)
	50 VA (ZAC 1/50)
	36 VA (ZAC 1/36L)
Electricity protection:	IP 55 (ZAC 1/20, ZAC 1/50)
	IP 20 (ZAC 1/36L)
Weight:	0,8 kg (ZAC 1/20, ZAC 1/36L)
	1,2 kg (ZAC 1/50)

Requirements for setting up the construction

ZAC 1/20, ZAC 1/50

Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
Set-up niche for flush mounting – size as per installed source
Distribution to each device is carried out by cable CYKY 2Ax1,5

ZAC 1/36 L

It is installed on the DIN-rail - width of 4 modules

Figure
ZAC 1/20

ZAC 1/50

Product title

ZAC 1/20 -

power supply for up to 3 devices - 230V, 50Hz

ZAC 1/50 -

power supply for up to 8 devices - 230V, 50Hz

ZAC 1/36L -

power supply for up to 6 devices - 230V, 50Hz

Tootekood: AZP-ZAC 1-20 , Tarneaeg: 3-4 nädalad

105,00 €

Automatne kummikute pesur düüsiga, 12V, 50Hz

automatic washing system for wellingtons with jets - 12V, 50Hz

AMO 01 is a stainless steel automatic washing system for wellingtons with sensor-controlled water nozzles. When stepping into the washing chamber of the system (scanning zone) water starts to flow from the nozzles automatically and wellingtons are cleaned of dirt. Water stops flowing with a certain time delay after the foot has been removed from the scanning zone.
AMO 01 is designed for a single pipe inlet of pre-mixed water from the circulation or water pre-mixed by means of a thermostatic valve.
The AMO 01 automatic washing system is intended mainly for operations with slight shoe contamination where quick washing at maximum water savings is guaranteed.

Package contents

body of the washing machine
photocell head
nozzles – 8 pcs
electromagnetic valves 2 pcs
corner valves with filter
connecting hoses

Radius of sensor	0 – 0,4 m
Water inlet	G 1/2“
Water pressure	0,3 – 1,0 MPa
Outlet	d = 32 mm
Inner dimensions of the trough	250 x 400 x 280 mm
Electricity protection	IP 55
Power supply	12 V, 50 Hz
Power requirement	10 VA
Source of power supply	ZAC 1/20 (max. 2 x AMO 01)
	ZAC 1/50 (max. 5 x AMO 01)
Weight	18 kg

Set up water inlet as per picture
Set up outlet d = 32 mm
Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC

Tootekood: AZP-AMO 01 , Tarneaeg: 3-5 nädalat

2405,00 €

Delabie valamu CANAL 2400mm, R/V teras (4 kohta)

CANAL wall-mounted wash trough
Ref. 120300

Wall-mounted wash trough for 4 posts - 2,400mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 20kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800007).

Height	250mm
Length	2400mm
Width	400mm
Thickness	1mm (basin) et 1.5mm (edge and fixing brackets)
Finish	304 polished satin stainless steel

Tootekood: DE-120300 , Tarneaeg: 14-21 päeva

1239,00 €
