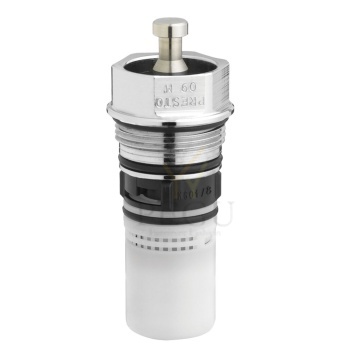

Pissuaari cartrige sisu pissuaarikraanile Presto 120B 6 sek
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ
Teie valik on tehtud – nüüd on aeg tellida ja nautida!
PEGU.ee e-poest ostmine on kiire, lihtne ja turvaline:
✔ Lisage tooted ostukorvi ja täitke tellimusandmed.
✔ Valige sobiv tarneviis ja maksemeetod.
✔ Kinnitame tellimuse ning asume kohe selle täitmisele!
Kiire tarne, mugav ostlemine ja usaldusväärne teenindus – kõik selleks, et saaksite oma uue lemmiktoote kiiresti kätte!
PEGU.ee – kvaliteet, stiil ja mugavus ühes kohas!
Pissuaari cartrige sisu pissuaarikraanile Presto 120B 6 sek
Valamu ventiil antivandaalne Presto 500 S 15 sek 1/2"
Presto pulk põlvekraanile P712 265mm P.31683
Presto dušiventiil 500 S antivandaalne, seina taha paigaldusega 1/2" 30sek
TECHNICAL DATA SHEET
Range: CROSS PARTITION SHOWER CONTROL
Ref: 38370 - Presto 500 S tap for cross partition shower - tap only
> Working pressure :
1 to 5 bar
> Flow :
5 l/min at 3 bar with delivered flow limiter Anti-water-hammering design
> Flow time :
Adjustable by washer 30 second (-10/+5seconds) timer
> Hydraulic supply :
Inlet M G 1/2" (15x21) - Cold or premixed water
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Patented anti-blocking "S" system to avoid the water to flow continuously
> Delivered with :
2 washers for flow time adjustment 1 Flow limiter
1 Nut 1/2’’ (15x21)
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
X.Eclair XL TC Presto ref.13015, läbi seina paigaldus, nuputa, tagant kinnine
Recommended operating pressure: 1 to 5 bar
Flush volume: 6 to 9 l, adjustable by operating the shut-off valve Anti-water hammer device
Flow time: 7 to 9 seconds
Hydraulic supply: In line, double male G 1"1/4 (33x42) Outlet connection on flush tube Ø 32 mm
Material and colour of finish: Brass body, raw
Delivered with: 1 Flash box with syphonic action 1 Assembly instructions
Standards / Approvals : Brass body in compliance with NF EN1982 / NF EN12164 / NF EN12165 standards
