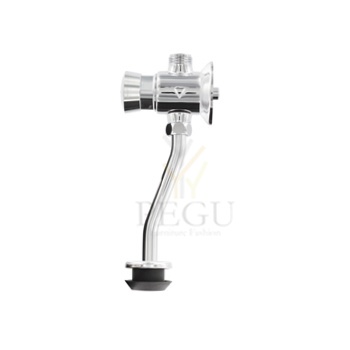

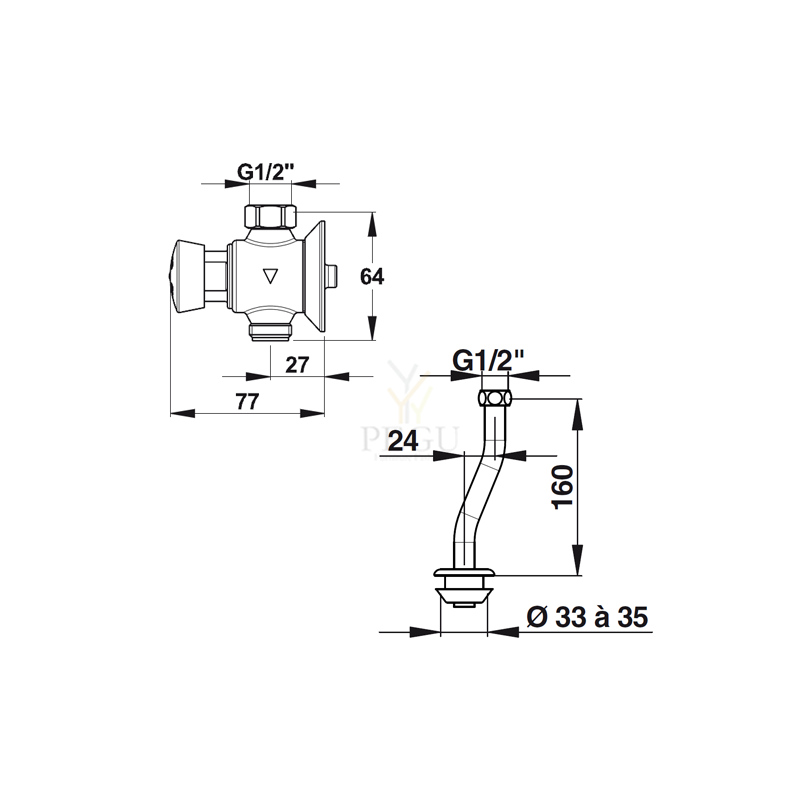

Pissuaari kraan presto P12 komplektne, ühendus 1/2"
Kaubamärk:
Ühik: kompl
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ
Avasta PEGU.EE lai valik kvaliteetset santehnikat ja tarvikuid, sealhulgas prügikastid, kätekuivatid, rannadušid, koristajavalamud, laborivalamud ja hädaabidušid. Lisa sobivad kaubad ostukorvi ja kasuta promokoodi PEGU-LUMI erihindade saamiseks! Promokood kehtib toodetele, mis pole hetkel muudes kampaaniates.
Pissuaari kraan presto P12 komplektne, ühendus 1/2"
> Working pressure:
1 to 5 bar
> Flow:
9 l/min at 3 bar - 4 positions flow adjustment device Anti-water-hammering design
> Flow time:
6 seconds (± 2 sec.)
> Hydraulic supply:
In-line water inlet
Arrivée et sortie M G 1/2" (15x21)
> Application:
Complete kit Complete kit Complete kit Complete kit Complete kit Complete kit Complete kit Complete kit Complete kit Complete kit Complete kit Complete kit
ready to install for ALLIA urinal reference Satolas
ready to install for DURAVIT urinal reference Ben / Katja / Pago // Jim / Starck 3 ready to install for IDEAL STANDARD urinal reference Esprit / San/ Remo ready to install for JACOB DELAFON urinal reference Kerax
ready to install for LAUFEN urinal reference Caprino / Como
ready to install for PORCHER urinal reference 2691
ready to install for ROCA urinal reference Mural / Urito
ready to install for SELLES urinal reference Euroline 8645 / 8620/ / Mistral ready to install for SPHINX urinal reference Eurobase 75 / 85 // Europa 85 ready to install for VILLEROY & BOCH urinal reference Targa/ pro
ready to install for VILLEROY & BOCH urinal reference Architect
ready to install for VITRA urinal reference Architek
> Delivered with:
1 PRESTO 12, urinal valve compatible NF 1 Equipped pipe 1/2" with water effect
1 Flat gasket
1 Nut
1 Loose wall flange Instruction manual
> Standards & approvals:
Brass body in accordance with EN 1982, EN 12164, EN 12165
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
WC isesulguv mehhanism
367,00 €
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering device
Fixed shower head with anti-limescale spikes
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS casings
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
"Legionella" version: pre-equipped for PRESTO solutions
Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540
1336,00 €
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering device
Fixed shower head with anti-limescale spikes
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II with cold water or pre-mixed water
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Non turnable push button Non-removable, wear-proof red marker
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in concordance with ISO 9227
969,00 €
Keraamiline pissuaar kaanega Vila radariga Sanela, integreeritud adapter 230V/ AC
SLP 37RZ
Urinal Vila with cover, with a radar flushing unit and with integrated power supply, 230 V AC
Characteristics
- economy flushing by 1 liter of water
- easy installation
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- water flow could be regulated by ball valve
- radar flushing unit recharges a water to the siphon after each flushing
| Order number | 01375 |
| Code | SLP 37RZ |
Supply specification
Technical information
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf.data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing
AFO 01.SC
drinking fountain with cooling designed to stand and to be attached to wall
AFO 01.SC is a drinking fountain with cooling designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. The fountain is operated by means of two piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
ttles
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.S is manufactured from the stainless steel AISI 304.
Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
| dimensions | 330 x 900 x 365 mm |
| water outlet | d = 40 mm |
| water inlet | G 1/2" |
| water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
| power supply | 230 V, 50 Hz |
| power input | 820 W |
| weight | 24 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or electric cable CYKY 3C x 1,5
