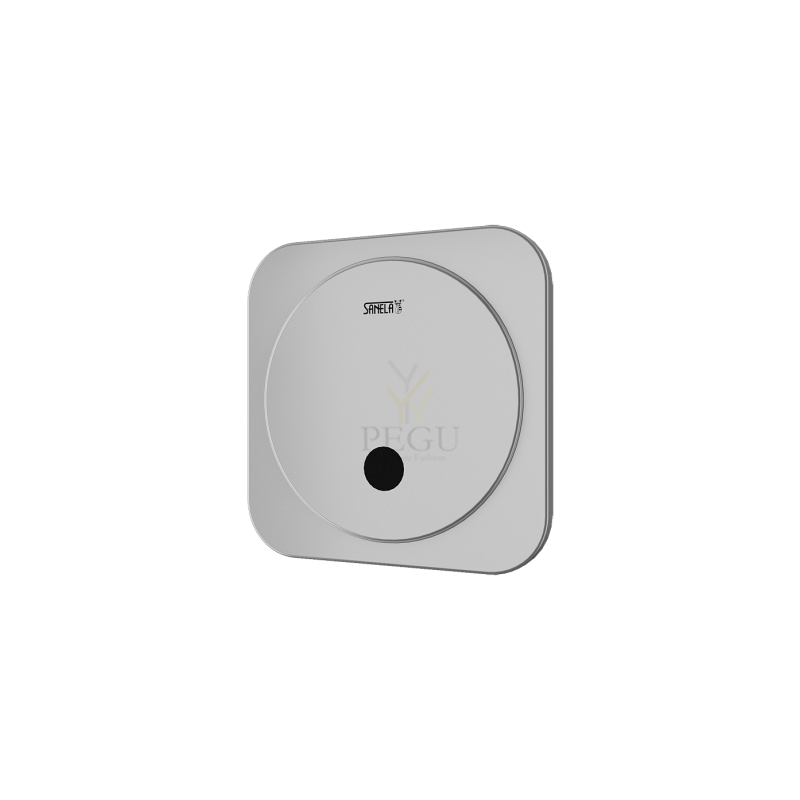

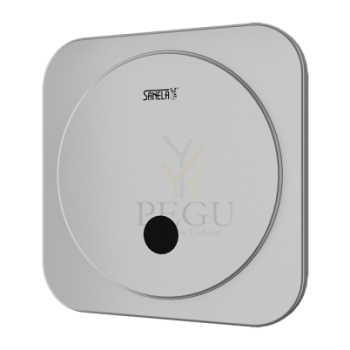

Pissuaari mehhanism infra-red paigalduse karbiga, adaptoriga 230V/AC

Tootekood: SA-SLP02NZ
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
415,00 €
Kuumakse alates: 35,40 €
Kogus: - +

Pissuaari mehhanism infra-red paigalduse karbiga, adaptoriga 230V/AC

SLP 02NZ



Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC



Characteristics

  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • possibility to regulate a water flow by the ball valve
Order number 42023
Code SLP 02NZ


Supply specification

SLP 02NZ - Supply No. 42023 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, power supply

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“

Video



Failid

Kokku sobivad tooted

Adapter 220/24V DC 1-2 segistile, 1-3 pissuaare

Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.

Tootekood: SA-SLZ01Y ,   Tarneaeg: 14 päeva
129,00 €
