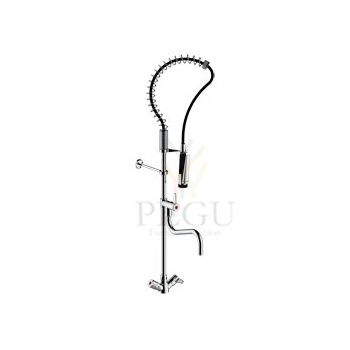

Presto CHEF professionaalne köögisegisti dušiga 1 auk ref.70820
Ref: 70820 - Column – deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Fast filling of tanks: 30L / min at 3 bar
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Single-turn mixer with ceramic head 1/4 turn with flow rate of 30L / min at 3 bar
1/4 turn ceramic head tap with filling spout - adjustable
Black M 1/2'' hand shower with grip surface limiting the risk of burns. Regulated flow: 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated NF check valve.
Guide spring for stainless steel hose

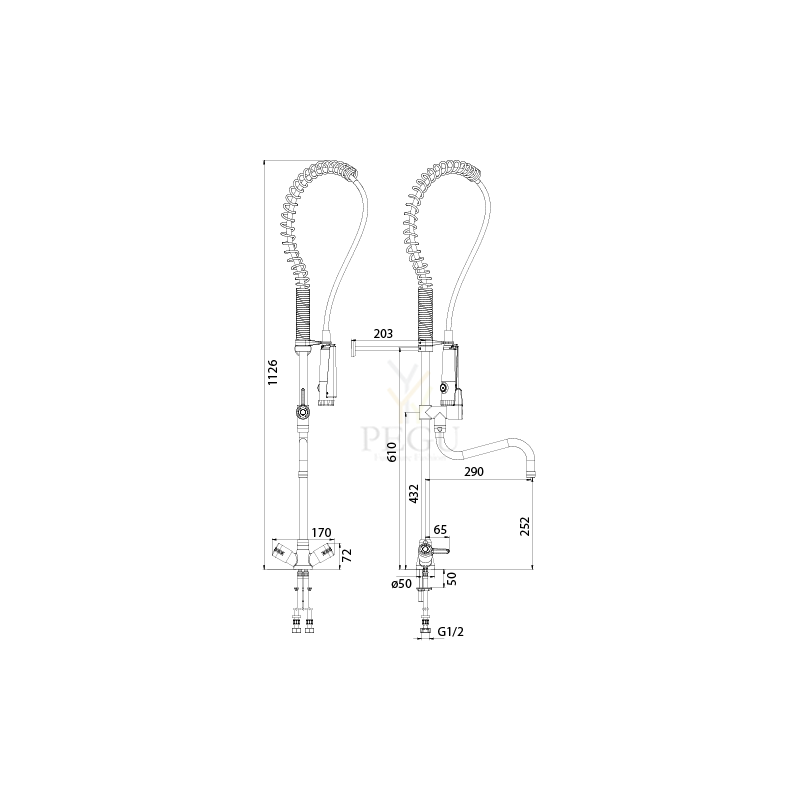

Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
30 L / min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance:
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Service operating temperature at 70 ° C maximum continuously
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Failid
Köögisegisti Damixa Titan kroom
- Ceramic head part
- Eco-Click water saving feature
- Swivel spout
- 120° swivel limitation
215,00 €
7408646
Teras
Silhouet
Halskov & Dalsgaard
339,00 €
Kangsegisti keraamilise töörganiga
Kahes suuna pööratava jooksutoruga.
Paigaldusava:42mm, jooksutorule: 22mm
DESCRIPTION
Auto-rewind 304 stainless steel hose reel - Ref. 5675T2
FOR CLEANING FLOORS AND WORK SURFACES
Auto-rewind hose reel with flexible hose L. 15m and guide rollers: Maximum temperature 70°C.
Flow rate 23 lpm at 3 bar.
Maximum pressure 20 bar, 12 bar with trigger-op hand spray. 304 Stainless steel base and drum Ø 390mm.
Order separately: an angled stopcock with integrated vacuum breaker to prevent the back flow of polluted water into the mains supply.
TECHNICAL FEATURES
Auto-rewind 304 stainless steel hose reel
Ref. 5675T2
Connector | 3/4" |
---|---|
Height | 400mm |
Depth | 410mm |
Length | 186mm |
Flow rate | 14 lpm |
Finish | 304 Stainless steel |
2824,30 €
Pre-rinse set with mixer
Ref. 5626
Complete pre-rinse set without bib tap.
Single hole deck-mounted mixer with slimline control lever.
Supplied with F3/8" flexible hoses and non-return valves.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade black flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. 5626
Connector | F3/8" |
---|---|
Height | 1105-1225mm |
Drop height | 340 - 580mm |
Flow rate | 9 lpm |
Width to the wall | 35-162mm |
Finish | Chrome-plated brass |
939,40 €
