Presto CHEF professionaalne köögisegisti ref.70832
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ

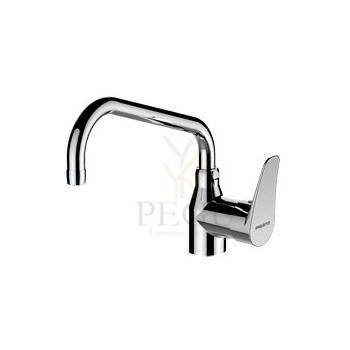

Ref: 70832 - Special ' Under Counter ' Bar- Deck-mounted mixer tap
> THE PRODUCT BENEFITS
Special "Bar" application:
the spout is hidden under the counter: more aesthetic
offset of the joystick on the side: easy access for washing
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: Ø 22 mm - thickness 1.5mm
Ergonomic and robust control: easy grip
Hygiene: spout with smooth interior
Product design
Ease of cleaning
Ease of maintenance: availability of all spare parts
Flow straigntener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:

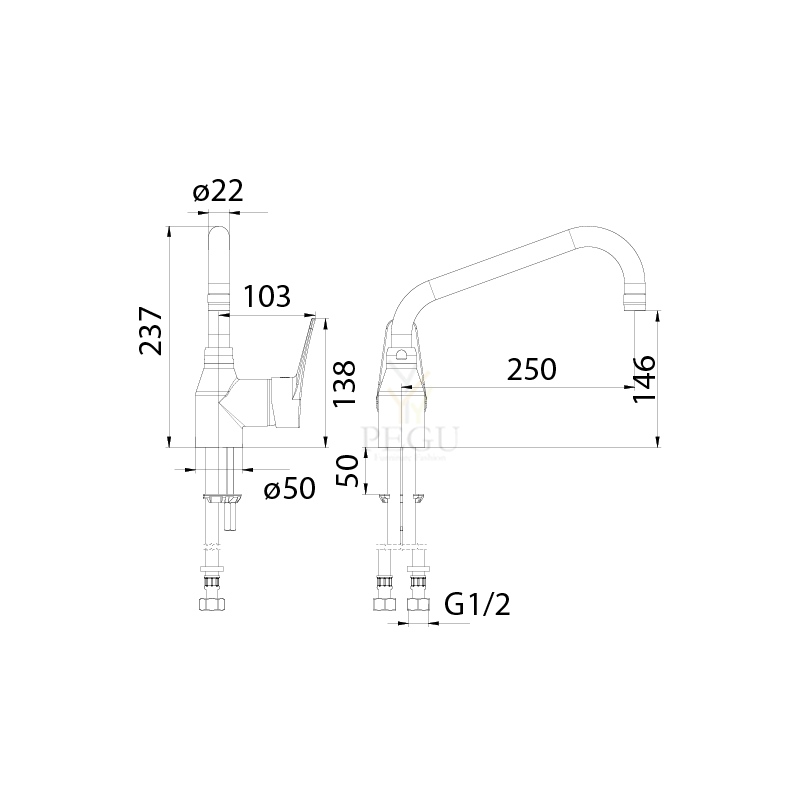

360 ° swivel spout 250 mm projection. Height under spout 146 mm - diameter 22 mm Spout thickness: 1.5 mm
Ceramic cartridge with flow 25 L / min at 38°C at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
25L / min at 38°C at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with:
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
> Option:
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Failid
Köögisegisti
Keraamilise käepidega.
P.Mont Blank
Kroom viimistlusega CR
Mora Cera Duo Miniprofi
Mora CeraDuo miniprofi brings the benefits from a professional restaurant kitchen to your private home. The sensor function makes the mixer more hygienic aswell as watersaving and environmentalfriendly. A convenient cleaning mode, and a removable nozzle with two spray-modes are included. Mora Cera Duo miniprofi makes your life in the kitchen easier, more environmentalfriendly and best of all- more good looking.
Technical information & spareparts
- ESS (energy saving system)
- Ceramic cartridge with soft closing function
- Swivel spout, limitation part for 60°, 85°, 110° or 360° included
- Nozzle with two spray patterns (normal and rinse)
- Flush Timeout - safety shut-off to prevent flooding
- Can be turned off for 5 min. (eg for cleaning)
- Low power consumption - Long life
- IP class sensor, IP67
- Approved non-return valves, EN-Standard EN1717
Installation: - Automatic sensor calibration
- All models can be adapted for either battery 6V or mains operation 12V AC/DC
- Mains operation requires installation of the AC adapter art.no. 729478.AE and power supply art.no. 729470, alternatively transformer art.no. 729475
- Soft PEX® hoses with 3/8" connecting nut (stainless steel braided)
- Hole diameter Ø34-37 mm
Settings: - Programmable detection distance
- Adjustable flush time
Twin hole pillar-mounted mixer - 100 lpm
Ref. 5603
Twin hole mixer, M3/4" with 150mm centres on pillar mounts for plunge sinks.
Swivelling, tubular spout Ø 22mm H. 380mm L. 300mm.
Star-shaped, brass flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant ergonomic ball levers.
Flow rate 100 lpm at 3 bar suitable for plunge sinks.
Full flow rate within the first 90°.
Spout with smooth interior.
One-piece body and spout in chrome-plated brass.
Reinforced fixings and recessed inlets.
1024,80 €
Pre-rinse set with mixer
Ref. 6693
Complete pre-rinse set without bib tap.
Deck-mounted single hole mixer with slimline control lever.
Supplied with F3/8" flexibles and non-return valves.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade, white flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. 6693
| Connector | F3/8" |
|---|---|
| Height | 1105-1225 mm |
| Drop height | 340-580 mm |
| Flow rate | 9 lpm |
| Width to the wall | 35-162 mm |
| Finish | Chrome-plated brass |
725,90 €
Twin hole pre-rinse set with mixer
Ref. 5680
Complete pre-rinse set without bib tap.
Deck-mounted twin hole mixer with 150mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Twin hole pre-rinse set with mixer
Ref. 5680
| Connector | M1/2" |
|---|---|
| Height | 1110 - 1230mm |
| Drop height | 345 - 585mm |
| Flow rate | 9 lpm |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
1067,50 €
