Tootegrupid

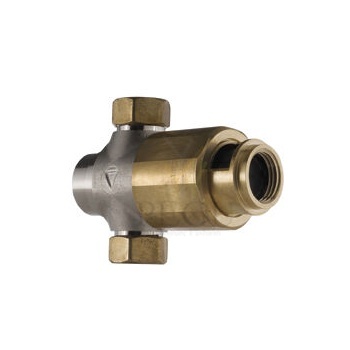

Presto dušiventiil 38370.jpg Zoom

Presto dušiventiil 500 S antivandaalne, seina taha paigaldusega 1/2" 30sek

Tootekood: P38370
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
179,00 €
Kuumakse alates: 15,17 €
Kogus: - +
   - või -

Presto dušiventiil 500 S antivandaalne, seina taha paigaldusega 1/2" 30sek

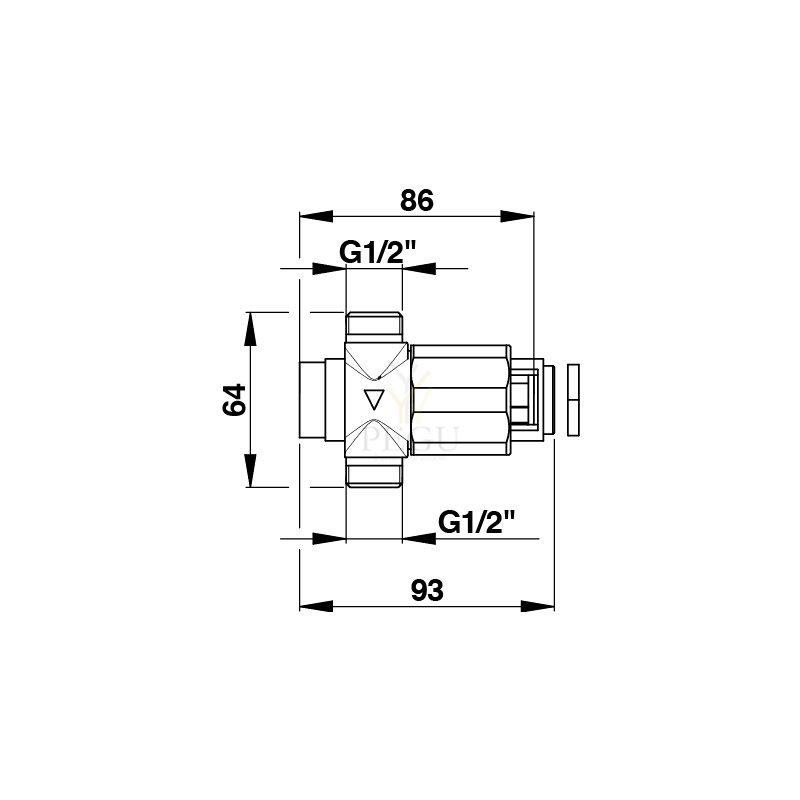

TECHNICAL DATA SHEET
Range: CROSS PARTITION SHOWER CONTROL
Ref: 38370 - Presto 500 S tap for cross partition shower - tap only

> Working pressure :

1 to 5 bar

> Flow :

5 l/min at 3 bar with delivered flow limiter Anti-water-hammering design

> Flow time :

Adjustable by washer 30 second (-10/+5seconds) timer

> Hydraulic supply :

Inlet M G 1/2" (15x21) - Cold or premixed water

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Patented anti-blocking "S" system to avoid the water to flow continuously

> Delivered with :

2 washers for flow time adjustment 1 Flow limiter
1 Nut 1/2’’ (15x21)

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Sarnased tooted
Tootekood: D7651700 ,   Tarneaeg: 7 päeva
421,20 € (10%)
468,00 €
9000E Tronic
Kontaktivaba valamusegisti temperatuuriseade kahvaga
Kroom FMM-nr:1641-0000

Kroom

  • Temperatuuriseade nupuga, akutoitel (aku kaasas)
  • Vandalismikindel, kest üleni metallist
  • ECO funktsioon (vett ja energiat säästev õhusti 5 l/min)
  • Aegreleega loputuse lõpetus üleujutamise vältimiseks
  • 30-sekundiline loputusaeg (anduriga)
  • Võimalik välja lülitada 60 sekundiks (näiteks puhastamiseks)
  • Madal voolutarve, pikk eluiga
  • Võimalik kuuma veega läbi loputada, et desinfitseerida legionella vastu
  • IP-klassi andur, IP67
  • Keskkonnasõbralik materjal, pliivaba, niklivaba

    Paigaldamine:
  • Anduri automaatne kalibreering
  • Pärast seadistamist sobivale temperatuurile, on võimalik nupp asendada ehiskaanega
  • Kõiki mudeleid on võimalik kasutada nii 6V aku toitel või 12V vooluadapteriga
  • Võrguvoolu kasutamiseks on tarvis paigaldada vooluadapter 1623-0000 ja toide FMM 1619-4000 või teise võimalusena trafo FMM 1619-3000
  • Pehmed PEX® voolikud koos integreeritud tagasilöögiklappide ja filtritega (roostevabast terasest)
  • Ava läbimõõt Ø 33,5–37 mm

    Seaded:
  • Reguleeritav maksimaalne temperatuur
  • Programmeeritav hügieeniloputuse funktsioon
  • Seadistatav loputusaeg

    Keskselt juhitav mudel:
  • Komplektis kaabel, millega on võimalik juhtida hügieeniloputust
  • Loputus toimub, kui sissevool on suletud
Tootekood: FMA-16410000 ,   Tarneaeg: 7-14 päeva
515,00 €

Sensoriga valamusegisti

kroom

VOLTA

Presto

kroom





Tootekood: P55160 ,   Tarneaeg: 7 päeva
695,40 €

Sisu 30 sek

Tootekood: P01022 ,   Tarneaeg: 3-7 päeva
329,40 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad
105,00 €
Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
