Tootegrupid
66225.jpg Zoom

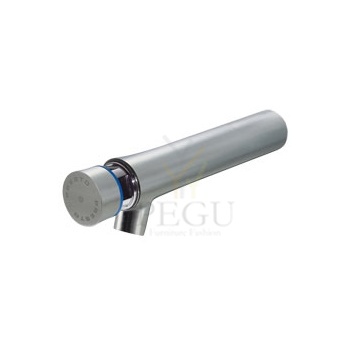

Presto NEO anti-block Isesulgev kraan 1/2" 7 sek 150mm roostevaba teras AISI304L

Tootekood: P66225
Kaubamärk:
Ühik: tk
Tarneaeg: 14 päeva
Hind:
219,60 €
Kuumakse alates: 18,72 €
Kogus: - +

> Working pressure: 1 to 5 bar

> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system

> Flow time: 7 seconds

> Hydraulic supply: G 1/2" x 15 - cold water

> Dimensions : 150mm projection

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

> Safety: With S® antiblocking system to prevent blocking in continuous flow Interchangeable head and non-turnable push button to avoid premature wear Non-removable blue circled marker

> Delivered with: 1 Installation manual

> Standards / Approvals: Stainless steel body (304 L) Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Sarnased tooted

Dušikomplekt SPORT isesulguv temperatuuri regulaatoriga KSA32/36 30sek

Dushikomplekt

kroom

30 sek töötsükkel

Segistiga+toru+otsik

Tootekood: IDR-KSA32/36 30 sek ,   Tarneaeg: 7 päeva
545,00 €
Tootekood: P30302 ,   Tarneaeg: 7 päeva
122,00 €

1/2" väliskeere

Tootekood: P29255 ,   Tarneaeg: 7-14 päeva
164,70 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €

390-WATERTAP WALL MOUNTED



DAN DRYER WaterTap is with automatic sensor for touch-free operation is a hygienic solution for all private and commercial washrooms.

The water faucet is part of a complete product line, which also includes hand dryer and soap dispenser. The product line is available for either deck or wall mounting.

The water tap features a minimalist, modern design in stainless steel with satin finish. It is easy to operate and to clean.



PRODUCT DESCRIPTION

• Wall mounting.

• Activation distance adjustable between 20-120 mm.

• Water pressure: 10-15 PSI.

• Water flow less than 3,8 l/m.

• Stainless steel with satin finish.

• Infra-red sensor and elektronic timer.

• 2-year warranty.




Tootekood: DAN390 ,   Tarneaeg: 14-21 päeva
866,20 €
Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
