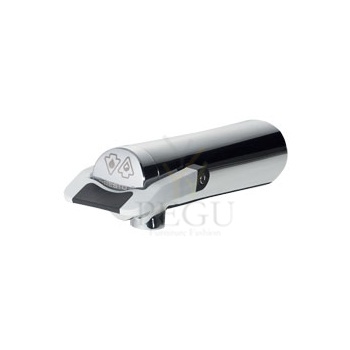

PRESTO NEO DUO S® isesulguv kraan 7/11 sek, antiblocking system
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Müüja: PEGU OÜ
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system
> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards
> Hydraulic supply: G 1/2'' x 15
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme > Safety: With S® antiblocking system to prevent blocking in continuous flow
> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer
> Delivered with: 1 Filter gasket 1 coloured sticker
> Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
Failid
1/2" väliskeere
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bar - 4 position-setting Anti water-hammer system
> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards
> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Safety: With S® antiblocking system to prevent blocking in continuous flow With temperature limiter (at 38°C for cold water at 15°C/3 bar and hot water at 60°C/3 bar)
> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer
> Installation: Cross-partition Wall thickness: 0 to 50 mm
> Delivered with: 2 PEX hoses with swivel nut and NF check valves 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 clamping nut > Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
> Working pressure : 1 to 5 bar
> Flow : 6 l/min with integrated flow limiter Anti-water-hammering device Hand-held shower on rail with chrome plated slide
> Flow time : 30 seconds (± 5 sec.)
> Hydraulic supply : G 1/2"(15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)
> Material : Anodised aluminum profile (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 High resistance RAL 7005 coloured ABS casings
> Functioning: Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security : Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°
> Delivered with : 1/2" hoses with revolving nuts MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual > Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
AFO 01.SC
drinking fountain with cooling designed to stand and to be attached to wall
AFO 01.SC is a drinking fountain with cooling designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. The fountain is operated by means of two piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
ttles
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.S is manufactured from the stainless steel AISI 304.
Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
| dimensions | 330 x 900 x 365 mm |
| water outlet | d = 40 mm |
| water inlet | G 1/2" |
| water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
| power supply | 230 V, 50 Hz |
| power input | 820 W |
| weight | 24 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or electric cable CYKY 3C x 1,5
PREMIX SECURITY
Ref. 731055
Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Anti-scalding safety.
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermostatic cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
15% energy savings: optimised heat loss (comparison between a circulating loop at 55°C and a non-circulating system at 70°C).
Safety and prolongation of system life span (Hot water at >65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
190 lpm - M1 1/2".
