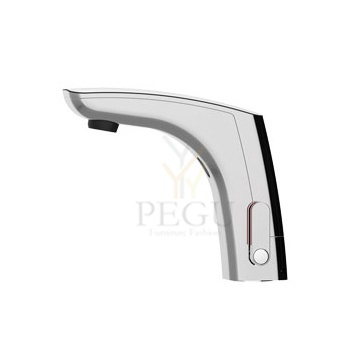

Presto NOVA IR segisti patartei kroom
> Working pressure : 1 to 5 bar
> Flow : 3 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design
> Hydraulic supply : G 3/8" (12x17)
> Power supply : Integrated 6V CRP2 lithium battery
> Material and colour finish : Injected molded metal body and cover Chrome finishing
> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shocks
> Security : Temperature limiting system to avoid any risk of scalding Anti-overflow security time is set to 30 seconds Anti-blocking system preventing the water to flow continuously
> Delivered with : 1 Brass clamping nut 1 Gasket and 1 Washer 2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves 2 Filter gaskets 1 Self-adhesive sticker Instruction manual
> Standards & approvals : Molded chrome-plated body in accordance with EN 12540 Brass in accordance with NF EN1982, EN12164, EN12165 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
Video
Sensoriga valamusegisti
kroom
VOLTA
Presto
kroom
Elektroisolatsioon klass 1
Kaal 3,8 kg
Voolutarve 1,3-4,8 A
Koguvõimsus 1010W-1150W
Kaitseklass IP23
Müratase 58-68dB(2m kaugusel)
Kuivatusaeg 10-15 sek.
Vedelseebidosaator kontaktivaba
Dimensions - 265 x 118 x 110 mm
Capacity - 0,8 L
Quantity dispensed per pulsation - 1 ml
Weight (empty dispenser) - 0,750 Kg
GENOU wall-mounted hand washbasin
Reference: 180330
CCTP description
Wall-mounted, knee-operated hand washbasin.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm
Rounded edges prevent injury.
Supplied with swan neck spout and time flow
tap with 7 second time flow.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5kg.
Keraamiline pissuaar Livo radariga Sanela, integreeritud adapter 230V/ AC
SLP 31RZ
Urinal Livo with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 (without the necessity to dismantle the urinal from the wall)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the ball valve
- radar flushing unit recharges a water to the siphon after each flushing
Order number | 01315 |
Code | SLP 31RZ |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
