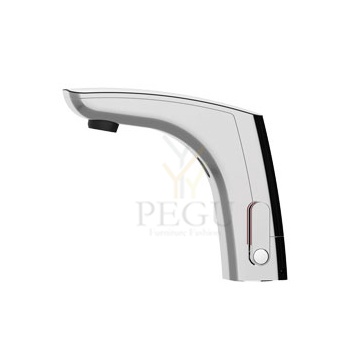

Presto NOVA IR sensoriga segisti AC kroom
> Working pressure :
1 to 5 bar
> Flow :
3 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design
> Hydraulic supply :
G 3/8" (12x17)
> Power supply :
230 VAC / 7 VDC transformer in IP65 waterproof case
> Material and colour finish :
Injected molded metal body and cover Chrome finishing
> Thermal resistance :
Resistant to a temperature of 75°C for 30 minute thermal shocks
> Security :
Temperature limiting system to avoid any risk of scalding Anti-overflow security time is set to 30 seconds
Anti-blocking system preventing the water to flow continuously
> Delivered with :
1 Brass clamping nut
1 Gasket and 1 Washer
2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves
2 Filter gaskets
1 Self-adhesive sticker
Instruction manual
> Standards & approvals :
Molded chrome-plated body in accordance with EN 12540
Brass in accordance with NF EN1982, EN12164, EN12165
200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
Video
Seinale kinnituv käsiföön,
valge
ABS
Toitelüliti ja polüpropüleenist suunaotsakuga föön
Toeküljes pistikuga juhe, 650-1800mm
ABS seinatugi
kiirusevalits (kaks asendit)
Termokaitselülitiga mootor
Pinge 220V
Sagedus 50/60 Hz
Elektroisaolatsioonini klass 2
Voolutarve 2,7-4,9A
Kaal 0,7 kg
KOguvõimsus 540-1240 W
Nootorivõimsus 40W
Kütteelemendi võimsus 1200W
Õhu liikmiskiirus 54km/h
Müratase 60dB
61,00 €
SENSOR - LIQUID SOAP DISPENSER 950ML BOTTLE WP 102E
86 x 298 x 121 mm
Choose product variant
- Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
- All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
Further available surfaces: see below. - With EWAR® eModule touch-free operated and non-drip soap pump.
- Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
- Inspection slot to indicate fill level.
- Accessible for refilling through lockable, hinged housing.
- Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
- eModule battery-powered with two 1.5 V Baby/LR14 batteries.
Power supply available as an option. - Wear parts can be replaced as modules.
- Mounting: With three screws through key holes and one optional anti-theft hole in the back wall.
- Delivery includes fixing material, batteries and first fill with soap.
- Weight (in kg): 2,8
500,20 €
Keraamiline pissuaar Golem radariga Sanela, 24V/ DC
SLP 19RS
Urinal Golem with a radar flushing unit, 24 V DC
Characteristics
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 to 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
Order number | 11195 |
Code | SLP 19RS |
SLP 19RS
Urinal Golem with a radar flushing unit, 24 V DC
Characteristics
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 to 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
Order number | 11195 |
Code | SLP 19RS |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
915,00 €
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
water inlet | G 1/2" |
water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
outlet | d = 40 mm |
bowl inner dimension | d = 245 mm |
weigth | 4 kg |
suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
> Working pressure : 1 to 5 bar
> Flow : 1.9 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design
> Hydraulic supply : G 3/8" (12x17) - Cold or premixed water > Power supply : 230 VAC / 7 VDC transformer in IP65 waterproof case
> Material and colour finish : Injected molded metal body and cover Chrome finishing
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security : Anti-overflow security time: 30 seconds Anti-blocking system preventing the water to flow continuously
> Delivered with : 1 Brass clamping nut 1 Gasket and 1 Washer 1 Hose with revolving nut 1 Stop valve MM G 3/8" (12x17) 1 Filter gasket 1 Self-adhesive sticker Instruction manual
> Standards & approvals : Brass body in accordance with NF EN1982, EN12164, NF EN 12165 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
