Presto pissuaari kraan 120 B mehhaaniline 1/2" R/V teras
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ
> Working pressure :
1 to 5 bar
> Flow :
5 l/min at 1 to 10 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time :
6 seconds (± 2 sec.)
> Hydraulic supply :
In-line water inlet

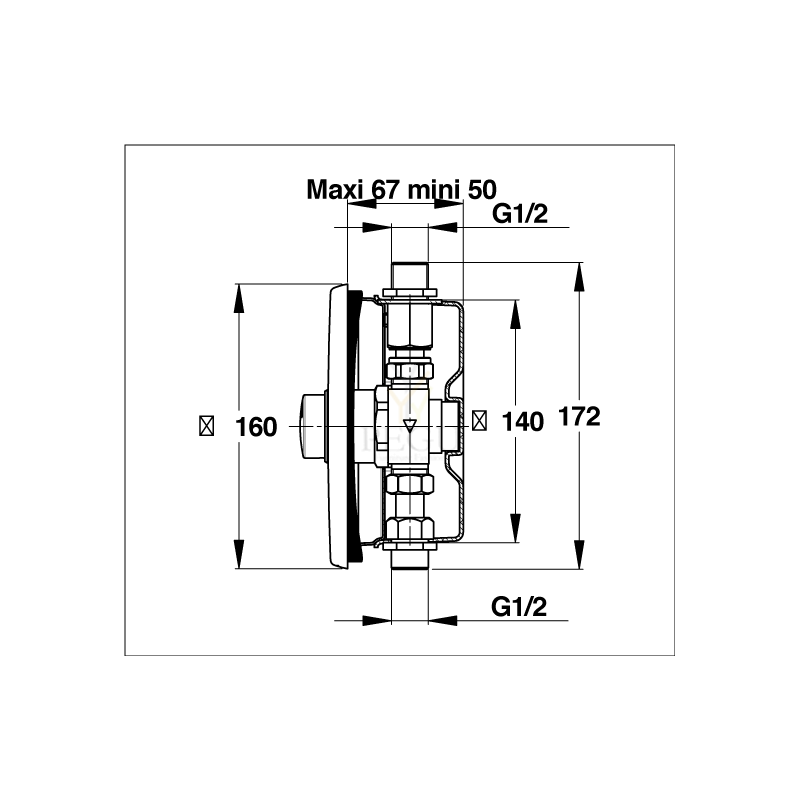

M G 1/2" Inlet and outlet
> Material and colour finish :
160x160 stainless steel vandal proof front, brushed finish
> Delivered with :
1 Flush-mounting case
1 Vandal-proof rose 160x160 (Brushed stainless steel) 1 Stop valve MF G 1/2" (15x21)
1 Douille lisse MF G 1/2" (15x21)
Instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Failid
TEMPOMIX shower kit
Ref. 790912
Recessed time flow shower kit:
Standard recessing housing. Recessing depth can be adjusted.
Chrome-plated wall plate Ø 195mm.Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX 3/4" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof TONIC JET shower head with scale-resistant nozzle and automatic flow rate regulation.
M1/2" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
10-year warranty.
This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
TECHNICAL FEATURES
TEMPOMIX shower kit
Ref. 790912
| Connector | 1/2" |
|---|---|
| Technology | Time flow |
| Flow rate | 6 lpm |
Keraamiline pissuaar Vila ilma kaaneta, radariga, 230 V/ AC
SLP 12RZ
Urinal Vila without cover with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
- economy flushing by 1 liter of water
- easy installation
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- water flow could be regulated by ball valve
- radar flushing unit recharges a water to the siphon after each flushing
| Order number | 01125 |
| Code | SLP 12RZ |
Supply specification
Technical information
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf.data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing
1256,00 €
Keraamiline pissuaar Caprino Plus radariga Sanela, integreeritud adapter 230V/ AC
SLP 49RZ
Urinal Caprino Plus with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the ball valve
- radar flushing unit recharges a water to the siphon after each flushing
| Order number | 01495 |
| Code | SLP 49RZ |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
1342,00 €
Joogifontään veejahutussüsteemiga, pudeli taitmisega põrand/sein piezo nupp, R/V teras AISI304 230V/50Hz
AFO 01.SCL
drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall
AFO 01.SCL is a drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. Uncooled water is used for bottle filling as a standard – can be changed. Start/stop control by piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.SCL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
| dimensions | 330 x 900 x 365 mm |
| water outlet | d = 40 mm |
| water inlet | G 1/2" |
| water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
| power supply | 230 V, 50 Hz |
| power input | 830 W |
| weight | 25 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or set up electric cable CYKY 3C x 1,5
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system
> Flow time: 7 seconds
> Hydraulic supply: G 1/2" x 15 - cold water
> Dimensions : 150mm projection
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Safety: With S® antiblocking system to prevent blocking in continuous flow Interchangeable head and non-turnable push button to avoid premature wear Non-removable blue circled marker
> Delivered with: 1 Installation manual
> Standards / Approvals: Stainless steel body (304 L) Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
