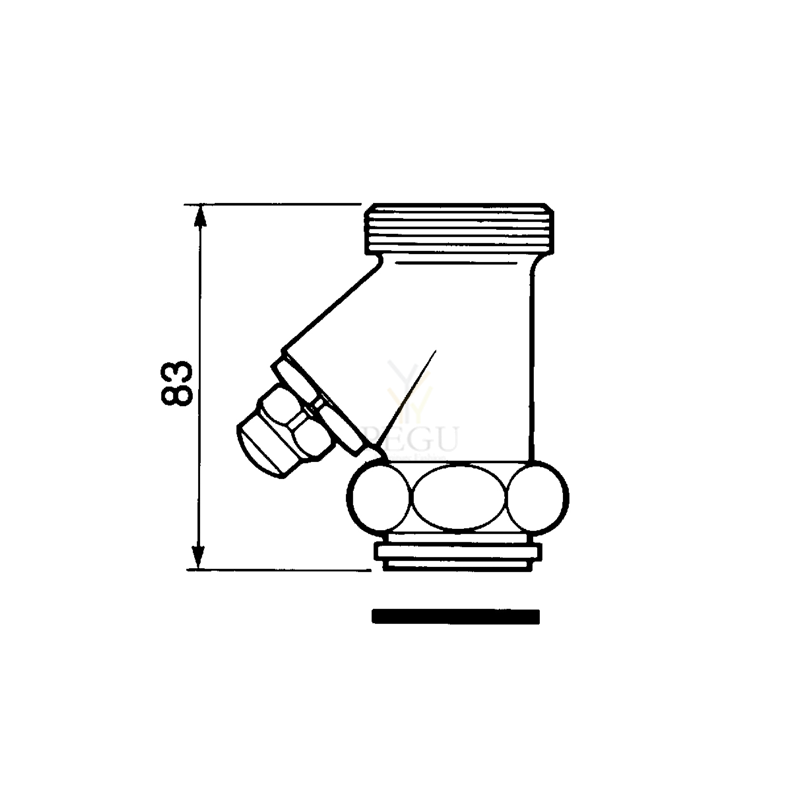

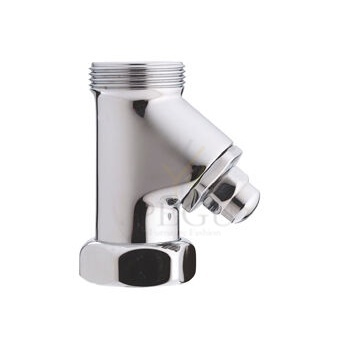

Presto sirge STOP kraan P41000 WC ECLAIR XL mehhanismile 1 1/4" 13060, 13070

> Working pressure : 1 to 5 bar

> Volume of water delivered : Adjustable from 6 to 9 litres with stop valve Anti-water-hammering design

> Flow time : From 7 to 9 seconds

> Hydraulic supply : MM G 1"1/4 In line Outlet connection on flush pipe Ø 32 mm

> Material and colour finish : Body and cross-partition control in Brass Push Button in Brass, chrome finish

> Security : Anti-siphonic device

> Delivered with : 1 Ball valve integrated 1 cross partition control 15 to 200m 1 fitting out, 1 bent tube and 1 junction nozzle

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

X.Eclair XL TC Presto ref.13070, läbi seina paigaldus ,nuputa

Recommended operating pressure: 1 to 5 bar

Flush volume: 6 to 9 l, adjustable by operating the shut-off valve Anti-water hammer device

Flow time: 7 to 9 seconds

Hydraulic supply: In line, double male G 1"1/4 (33x42) Outlet connection on flush tube Ø 32 mm

Material and colour of finish: Brass body, raw

Delivered with: 1 Flash box with syphonic action 1 Assembly instructions

Standards / Approvals : Brass body in compliance with NF EN1982 / NF EN12164 / NF EN12165 standards
