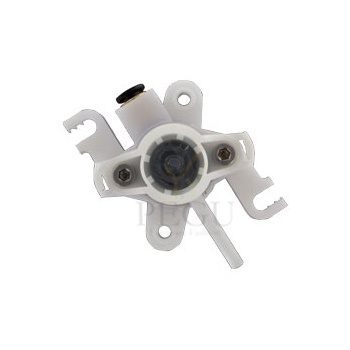

Presto Varuosa nupukomplekt DL300/400 vana mudel seinapealne(kandiline nupp)
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ
Varuosa Presto dushile , eelsegatud paneel 27401
Function
- This ¼ turn 1/3’’ (15x31) ceramic head can be used to refurbish all professional kitchen tapware in the PRESTO Maestro line Standards and approvals: The PRESTO spare parts contained in this packaging make it possible to maintain the NF and ACS certifications for the finished products they are designed to be used on.
Packaging:
- 1 unit
Material and finish colour
- Nitrile/EPDM elastomer seals
Varuosa Presto dushile , eelsegatud paneel DL300S
5 Garnitures de pomme de douche
Presto dušiventiil 500 S antivandaalne, seina taha paigaldusega 1/2" 30sek
TECHNICAL DATA SHEET
Range: CROSS PARTITION SHOWER CONTROL
Ref: 38370 - Presto 500 S tap for cross partition shower - tap only
> Working pressure :
1 to 5 bar
> Flow :
5 l/min at 3 bar with delivered flow limiter Anti-water-hammering design
> Flow time :
Adjustable by washer 30 second (-10/+5seconds) timer
> Hydraulic supply :
Inlet M G 1/2" (15x21) - Cold or premixed water
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Patented anti-blocking "S" system to avoid the water to flow continuously
> Delivered with :
2 washers for flow time adjustment 1 Flow limiter
1 Nut 1/2’’ (15x21)
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Pissuaari ventiil antivandaalne Presto P12, 6 sek 1/2"
> Working pressure :
1 to 5 bar
> Flow :
9 l/min at 1 bar - 4-positions flow adjustment device Anti-water-hammering design
> Flow time :
6 seconds (± 2 sec.)
> Hydraulic supply :
In-line water inlet
M G 1/2" Inlet and outlet
> Delivered with :
1 Flat gasket and 1 Union nut 1 Nut for 12x14 tube
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
