Tootegrupid
B0080.jpg Zoom

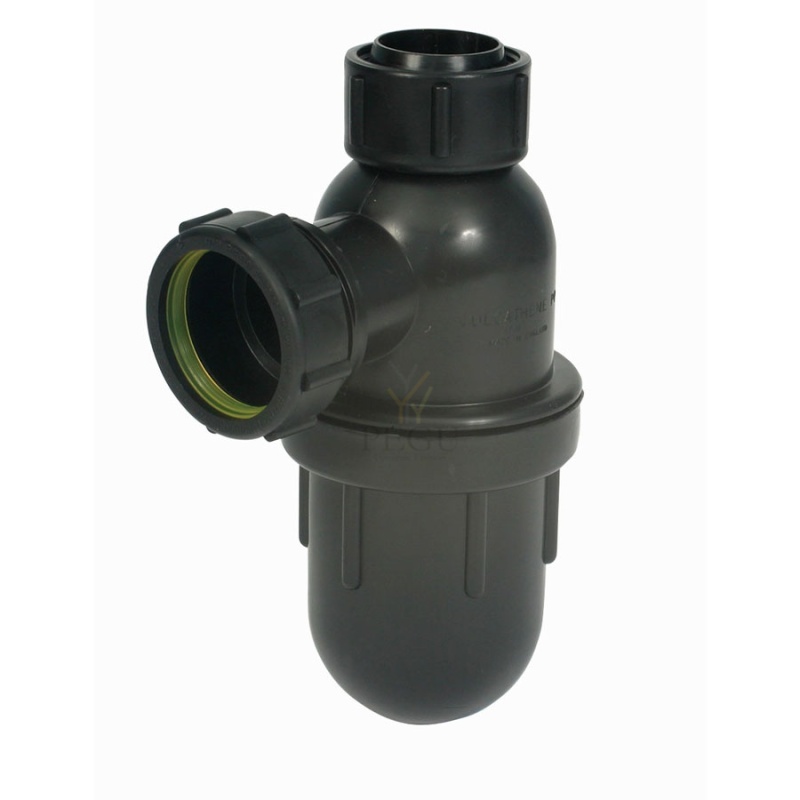

Pudelisifoon labori valamule 1 1/2"

Tootekood: B-97B0040 (97B0080)
Kaubamärk:
Ühik: tk
Tarneaeg: 2-3 nädalad
Hind:
56,93 €
Kuumakse alates: 4,95 €
Kogus: - +
   - või -

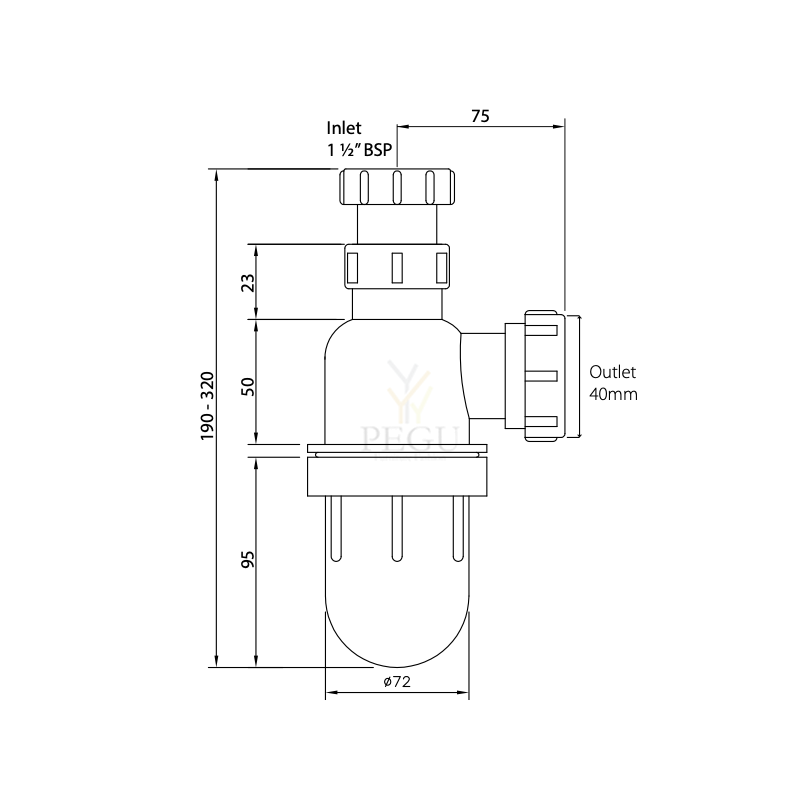

SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black (other colours available on request )
Net weight: 0.5 kg
Dimensions: IN: 1½” BSP
OUT: 40mm (metric)
Height adjustable: telescopic bottle trap
Injection moulded from polypropylene copolymer resin, this anti-siphon bottle trap come with inlet of 1½” BSP, with black bowl.
PP BOTTLE TRAP
PRODUCT NUMBER 97B0040
PRODUCT NUMBER 97B0023
SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black (other colours available on request )
Net weight: 0.5 kg
Dimensions: IN: 1½” BSP
OUT: 40mm (metric)
Injection moulded
Sarnased tooted
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- fixed spout
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
- WPH (Water Potable Hot)
- WNH (Water Non-Potable Hot)
Tootekood: B-25340161001-52B ,   Tarneaeg: 3-7 päeva
256,20 €
Ögondusch för bänk med skål

Ögon/ansiktsdusch med skål och bänkfäste. Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att ögon- & ansiktsduschen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme. Utrustad med FLOWFIX som gör spolbilden stadig i varierande vattentryck.

• Min. arbetstryck: 1,5 bar
• Fälls in i bänk
• POLYCOAT står emot de flesta kemikalier
• Uppsamlingsskål i rostfritt stål med POLYCOAT
• FLOWFIX: 26 l/min
• 2-sidig efterlysande skylt, dekal & testkort
• Vikt: ca. 3,5 kg
• Anslutning: inv. DN15
• Avloppsanslutning: inv. DN32

Artikelnummer: 17 934 009

Tootekood: B-17934009 ,   Tarneaeg: 3-4 nädalad
1213,90 €

Min. working pressure: 1.5 bar for all Eye Showers

Tootekood: B-17744204 ,   Tarneaeg: 14-21 päeva
658,80 €
Eye shower, wall mounted in brass with chemical resistant BROEN Polycoat.
The water is regulated with a built-in FLOWFIX (26 l/min).
Min. working pressure: 1.5 bar.
Tootekood: B-17250009 ,   Tarneaeg: 14 päeva
676,08 €

Eye wash and safety shower combination
Ref. 9203

Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: "Safety Shower" and "Eye Wash".

Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).

TECHNICAL FEATURES

Eye wash and safety shower combination
Ref. 9203

Supply F1"
Height 2207mm
Length 660mm
Drop height 2115mm
Flow rate 120 lpm at 3 bar dynamic pressure
Tootekood: DE-9203 ,   Tarneaeg: 14-21 päeva
1428,00 €
Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
