Roostevaba teras peegel Wagner Ewar 600x600mm

Tootekood: WAG-WP601
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 213,50 €
202,83 €
Kuumakse alates: 17,24 €
Kogus: - +
   - või -

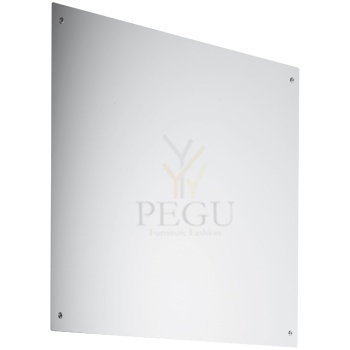

Roostevaba teras peegel Wagner Ewar 600x600mm

  • Mirror in robust, germ-reducing and easy-care stainless steel mirror sheet metal (AISI 304).
  • Mounting: With four Torx® locking screws.
  • Delivery includes fixing material.

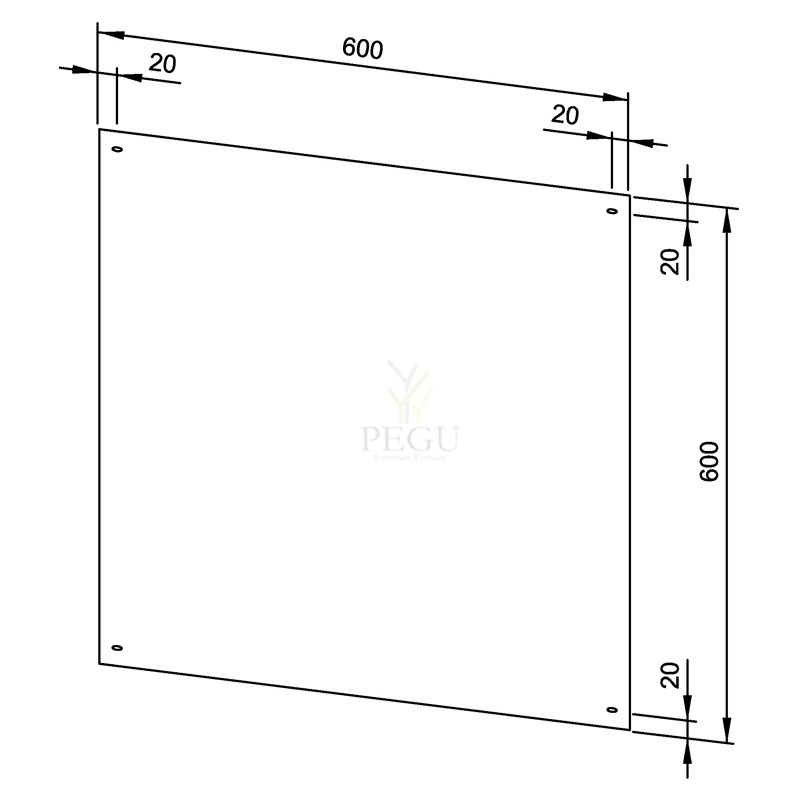

  • Other dimensions available upon request.
  • Weight (in kg): 2,9
Sarnased tooted

Seinakraan, vooliku otsaga

Poleeritud messing

1/2"

Tootekood: IDR-0151G12 ,   Tarneaeg: 7 päeva
45,00 € (10%)
50,00 €
Small rectangular UNU mirror with hook.
Height: 160mm
Width: 80mm
Depth: 38mm
Weight: 0,2 kg.
Designer: Bønnelycke mdd
Material: Aluminium
Tootekood: FROU4121-C ,   Tarneaeg: 14-21 päev
38,00 € (5%)
40,00 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €
UNU mirror with shelf frame. Mirror for hallway, bedroom or bathroom.
Height: 900mm
Width: 600mm
Depth: 110mm
Weight: 18 kg.
Designer: Bønnelycke mdd
Material: Aluminium
Tootekood: FROU4128-B ,   Tarneaeg: 14-21 päeva
492,10 € (5%)
518,00 €

REDO wall-mounted washbasin
Ref. 121710

Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.



TECHNICAL FEATURES

REDO wall-mounted washbasin
Ref. 121710

Height 150mm
Length 375mm
Width 430mm
Thickness 1.2mm
Finish 304 polished satin stainless steel

Tootekood: DE-121710 ,   Tarneaeg: 14 päeva
472,50 € (10%)
525,00 €
