Roostevaba terasest WC pott põrandale Delabie BCN P

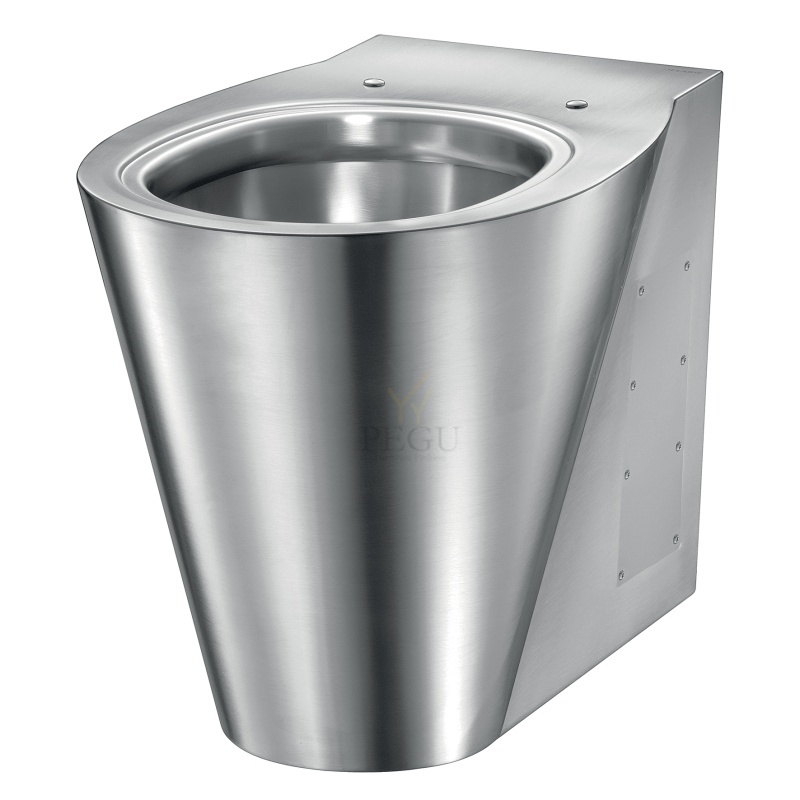

BCN P floor-standing stainless steel pan
Ref. 110100
Floor-standing WC pan, 360 x 400 x 580mm.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal or vertical waste outlet: Ø 100mm. Supplied with PVC pipe.
Water saving: works with 4L or more of water.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 12kg.
Failid
KOMPACT TC washbasin and wall-hung WC combination
Ref. 166500
Combination unit: washbasin and WC pan suspended centrallywith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Central WC pan
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130005]
TECHNICAL FEATURES
KOMPACT TC washbasin and wall-hung WC combination
Ref. 166500
Height | 1000mm |
---|---|
Length | 615mm |
Width | 725mm |
Thickness | 2mm |
Finish | 304 polished satin stainless steel |
KOMPACT washbasin and floor-standing WC combination
Ref. 160700
Combination unit: washbasin and floor-standing WC pan on left sidewith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030007]
TECHNICAL FEATURES
KOMPACT washbasin and floor-standing WC combination
Ref. 160700
Height | 1000mm |
---|---|
Length | 735mm |
Width | 725mm |
Thickness | 2mm |
Finish | 304 polished satin stainless steel |
Delabie KOMPACT TC WC+valamu vasakul põranda antivandaalne R/V teras AISI304
KOMPACT TC washbasin and floor-standing WC combination
Ref. 166600
Combination unit: washbasin and floor-standing WC pan on right sidewith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130006]
Technical features
KOMPACT TC washbasin and floor-standing WC combination
Ref. 166600
Height | 1000mm |
---|---|
Length | 615mm |
Width | 725mm |
Thickness | 2mm |
Finish | 304 polished satin stainless steel |
LP individual urinal
Ref. 130300
Floor-standing urinal.
Bacteriostatic 304 stainless steel.
Polished satin stainless steel.Stainless steel thickness: 1.2mm
Rear water inlet.
Central drainage.
Supplied with 1 stainless steel rinser and a flexible hose.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½". Supplied with waste and integrated trap (ref. 785000).
Easy to install and maintain thanks to access panels with theft prevention TORX security screws.
Weight: 15.2kg.
TECHNICAL FEATURES
LP individual urinal
Ref. 130300
Height | 1020mm |
---|---|
Length | 300mm |
Width | 600mm |
Thickness | 1.2mm |
Finish | Polished satin 304 stainless steel |
Delabie TEMPOMATIC WC ventiil 3/4" seina süvistav baas 6V bat kit 1/2 (liskas on vaja DE-464006)
Recessed waterproof housing for TEMPOMATIC dual control WC
Ref. 464PBOX
Flush system without cistern: directly connected to pipework.
Compatible with electronic WC valve.
CR123 6V Lithium battery-operated.
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, activation and electronic unit are all integrated and accessible from the front.
Backflow prevention device inside the housing.
Secure system flush without sensitive elements.
Outlet connection for PVC tube Ø26/32mm.
Order with control-plate reference 464006.
TECHNICAL CHARACTERISTICS
Recessed waterproof housing for TEMPOMATIC dual control WC
Ref. 464PBOXConnector | F¾" |
Technology | Electronic and time flow |
Height | 150mm |
Depth | 93 to 190mm |
Width | 225mm |
