Wall-mounted washbasin, cross wall installation for service ducts.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin.
200mm threaded rod can be cut to size (other lengths available on request.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standardEN 14688.
Weight: 4.5kg.

TECHNICAL FEATURES

PMR XS TC wall-mounted washbasin
Ref. 160250

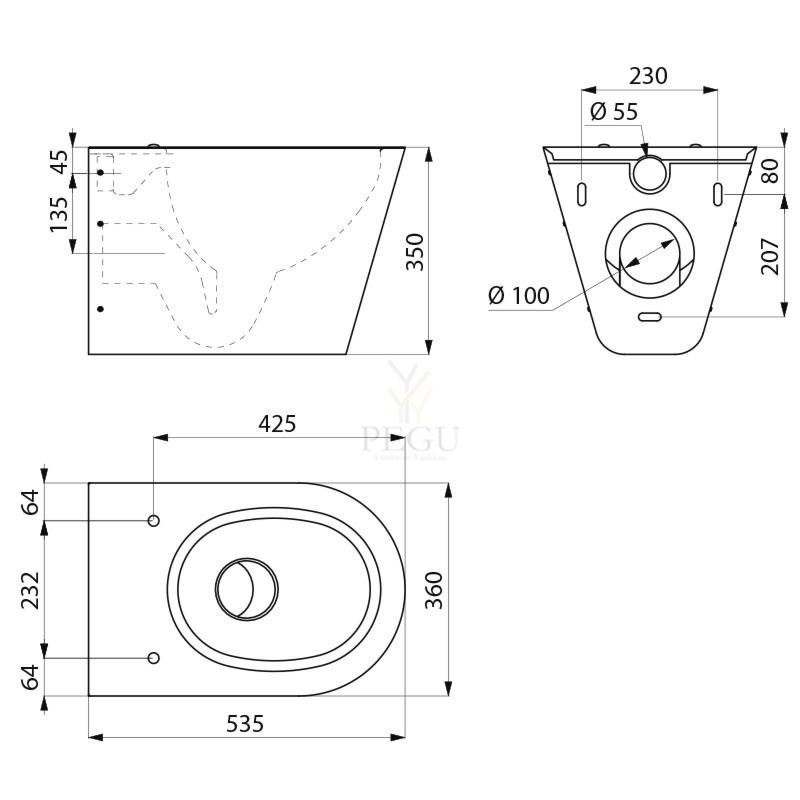

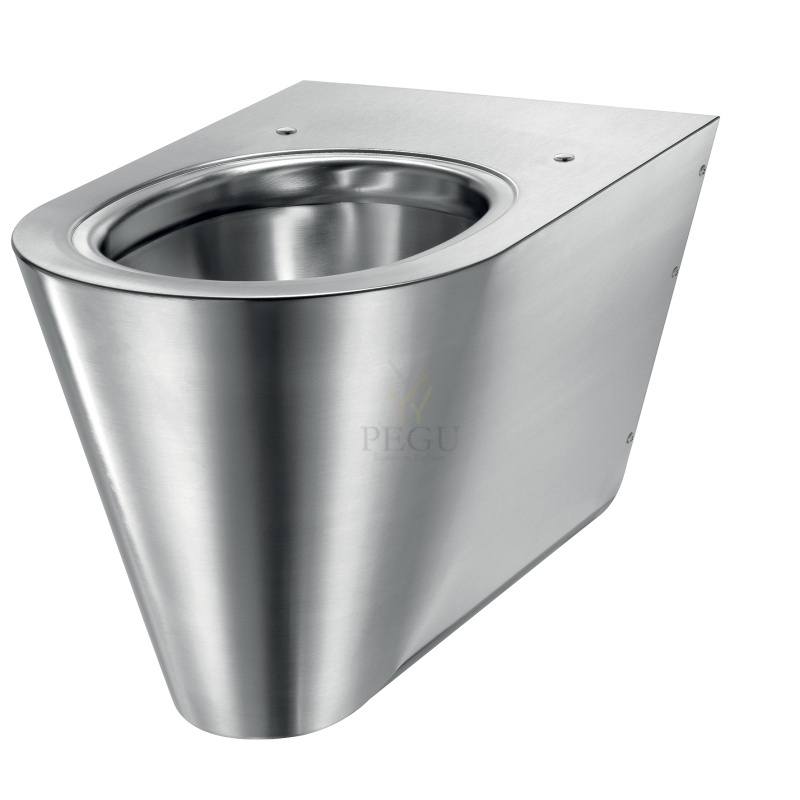

Wall-hung WC pan with through-the-wall installation for service ducts.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
One-piece pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm
Horizontal waste outlet: Ø 100mm
Water saving: works with 4L or more of water.
200mm threaded rod can be cut to size (other lengths are available on request).
Shrouded WC pan.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 11kg.
[Formerly ref: 0116320001]

TECHNICAL FEATURES

S21 S TC wall-hung WC pan
Ref. 160310

Combination unit: washbasin and suspended WC pan on left sidewith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Left hand WC pan
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130004]

Combination unit: washbasin and floor-standing central WC pan with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top, with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7-second time flow, M½".
Available with 2 buttons cold water/mixed water.
WC equipped with time flow flush valve, 7-second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin trap.
Easy to install: only one water outlet for both washbasin and WC, water inlet and outlet already connected.
Weight: 36kg.

TECHNICAL FEATURES

Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161800

Washbasin combination unit with cistern, mounted WC pan on right side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC fitted with 6-litre cistern.
Water inlets: washbasin M1/2", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.

TECHNICAL FEATURES

KOMPACT washbasin and wall-hung WC combination
Ref. 162300
