Termoregulaator paralleelse ühendusega 1/2"
Thermostatic mixing valve with internal temperature limiter Ref: 29006 - Thermostatic mixing valve with parallel 1/2'' inlets
> Flow:
maximum: 43 l/min at 3 bars minimum: 4 l/min at 3 bars
> Temperature :
Factory setting: 38°C
Temperature, hot water inlet: 85°C max
Minimum differential temperature: 15°C (Between hot water inlet and mixed outlet) Temperature control plan: 20 to 65°C at 3 bar
Mixed Temperature Stability: +/- 2°C from 37 to 42°C for a flow range from 12 to 47L/mn
> Hydraulic supply :
G 1/2" (15x21) Inlet & Outlet
Red tag for hot water, and blue tag for cold water
> Thermal resistance :
Designed to withstand thermal shocks at temperatures over 75°C during 30 min
> Security :
Anti-scald system: flow is immediately stopped if the cold water is cut off Internal temperature blocker
> Delivered with :
2 Filter gaskets
2 NF check valves Instruction manual
> Standards & approvals :
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227 Brass body in accordance with EN 1982, EN 12164, EN 12156
CLASSIC 23 G VEEKRAAN
1⁄2” külmumiskindel kraan, kasutamiseks just koduaias. Valmistatud matistatud pinnatöötlusega roostevabast terasest. Heade proportsioonidega klassikaline veekraan on stiilne ja funktsionaalne lisandus igasse aeda kus vajatakse värsket, külma vett. Kaev tarnitakse koos paigaldamiseks vajaliku kaevuga.
Veekraan on varustatud isetühjeneva 3-suuna liugventiiliga kindlustamaks kraani külmakindlust ka väga madala välistemperatuuri korral. Võimalikud hooldustööd ja tihendite vahetamise saab teostada ilma kaevetöödeta.. Tuleb vaid kraani korpus kaevust välja tõsta ning teostada hooldustööd kohapeal või viia töökotta.
Juhul kui kraan paigaldatakse eriti rasketesse välistingimustesse, näiteks mere lähedale, on soovitatud valida spetsiaalse pinnaviimistlusega – elektropoleeritud pinnatöötlusega toode.
Müüja: PEGU OÜ

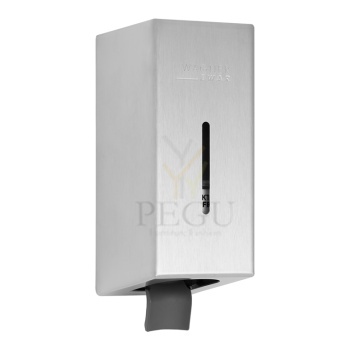

Seebidosaator 0,2l seinale, satiin

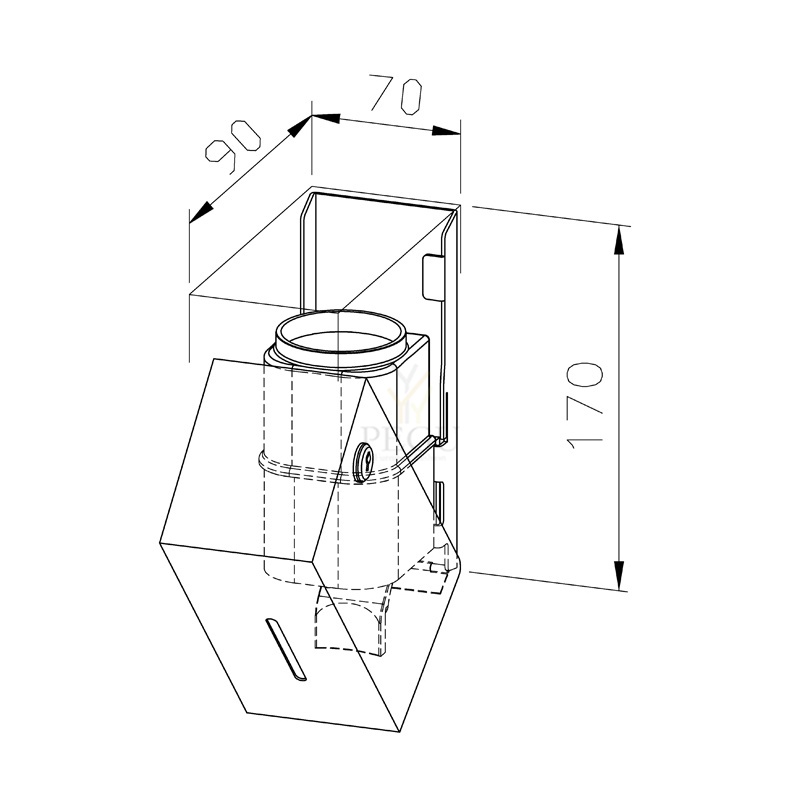

70 x 170 x 90 mm
200 ml soap tank
| AVAILABLE SURFACES | ORDER NUMBERS |
|---|---|
| satin finished (standard) | 727307 |
| highly polished | 731307 |
| (coloured) plastic powder - coating | 728307 |
Seebidosaator
harjatud, R/V teras AISI304
Maht 0,2L
70x172x90mm
• Winner of a Red Dot Design Award!
• Holds approx. 9,5 dl liquid soap (= 800-950 doses).
• Battery-operated. Connection to power supply via a transformer.
• An intelligent sensor automatically sets the best sensor range.
• LED light indicates when dispenser is in use.
• Comes in trendy matt black and classic white as standard.
• Also available in all RAL colours and coated with different prints.
• Top plate in 6 optional standard designs.
• 2-year warranty.
| SPECIFICATIONS | |
|---|---|
| Product number: | 3056 / EAN no. 5-709818-030562 |
| Technical data: |
Touch-free soap dispenser for liquid soap/disinfectant. Matt black steel housing (RAL 9005, gloss 3). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
|
| Dimensions | H: 330 mm, W: 139 mm, D: 127 mm |
| Net Weight: | 2.3 kg |
148 x 448 x 120 mm
950 ml bottle
Seebidosaatori pudel
IMP ELS - IMP T P Warning Colour
Soap-/disinfectant dispenser for disposable bottles as well as refillablecontainers and hygiene packages, aluminium housing, powder-coated warning colours, short operating lever, 1000 ml
