Range: SO'O
Ref: 56196 - Deck-mounted mixer sensor tap - Battery - Black and pink gold cover
132
Powered by TCPDF (www.tcpdf.org)
> Working pressure :
1 to 5 bar
> Flow :
3 l/min with integrated flow regulator High quality anti-limescale aerator Anti-water-hammering design
> Hydraulic supply :
G 3/8" (12x17)
> Power supply :
6 V lithium battery (CRP2 type) in a casing placed within the tap body
> Material and colour finish :
Chrome-plated metal alloy components Injected molded metal body and cover Black finish with pink gold cover
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Temperature limited by adjustable stop
Anti-overflow security time: 30 seconds
Anti-blocking system preventing the water to flow continuously
Solenoid valve automatically shut down in case of power shortage or in case of sensor degradation
> Delivered with:
2 Fastening nuts
1 Gasket and 1 Washer
2 PEX flexible hoses with F 3/8'' nut (12x17) and NF non-return valve 2 Straight stop valves G 3/8" (12x17)
2 Filter gaskets
Instructions manual
> Standards & approvals :
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Components y materials
FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.
WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.
FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.
UNLOCK HANDLE: made of black thermoplastic.
BG0089CS Satin finish
Technical specifications
Dimensions
Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter
700 x 835 x 100 mm
Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm
Müüja: PEGU OÜ
Olete teinud oma valiku – nüüd jääb vaid nautida ostu!
Tellimuse vormistamine on kiire ja lihtne:
✔ Lisage soovitud tooted ostukorvi.
✔ Täitke andmed – kas eraisikuna või juriidilise isikuna.
✔ Valige sobiv tarneviis.
Pärast ostu kinnitamist saadetakse teile e-kirjaga teavitus ning meie asume tellimust täitma!
PEGU OÜ – neile, kes hindavad stiili, kvaliteeti ja laitmatut teenindust.

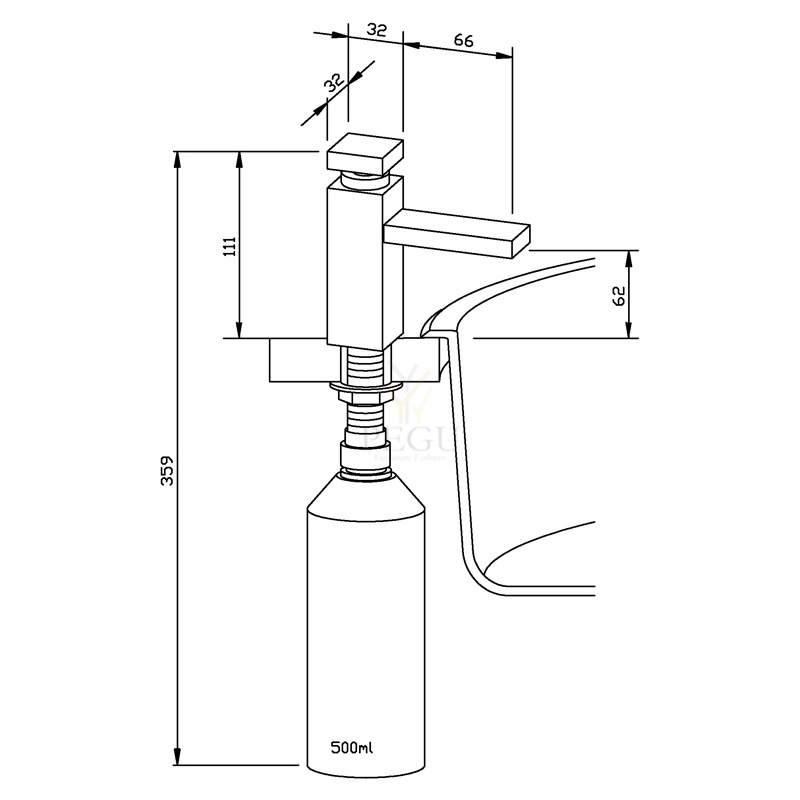

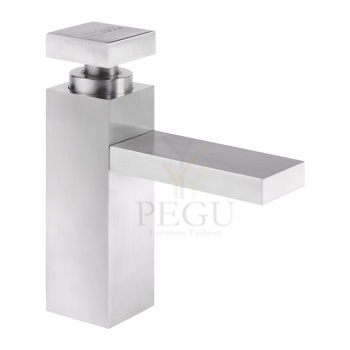

32 x 32 x 111 mm
projection 87 mm
| AVAILABLE SURFACES | ORDER NUMBERS |
|---|---|
| satin finished (standard) | 923376 |
| highly polished | 931376 |
• Winner of a Red Dot Design Award!
• Holds approx. 9,5 dl liquid soap (= 800-950 doses).
• Battery-operated. Connection to power supply via a transformer.
• An intelligent sensor automatically sets the best sensor range.
• LED light indicates when dispenser is in use.
• Comes in trendy matt black and classic white as standard.
• Also available in all RAL colours and coated with different prints.
• Top plate in 6 optional standard designs.
• 2-year warranty.
| SPECIFICATIONS | |
|---|---|
| Product number: | 3056 / EAN no. 5-709818-030562 |
| Technical data: |
Touch-free soap dispenser for liquid soap/disinfectant. Matt black steel housing (RAL 9005, gloss 3). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
|
| Dimensions | H: 330 mm, W: 139 mm, D: 127 mm |
| Net Weight: | 2.3 kg |
148 x 448 x 120 mm
950 ml bottle
148 x 148 x 120 mm
1000 ml soap tank
