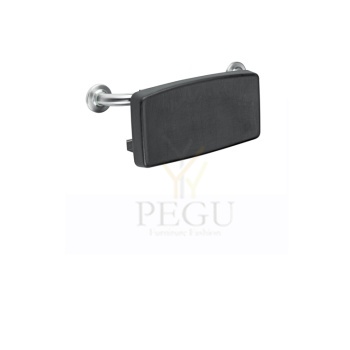

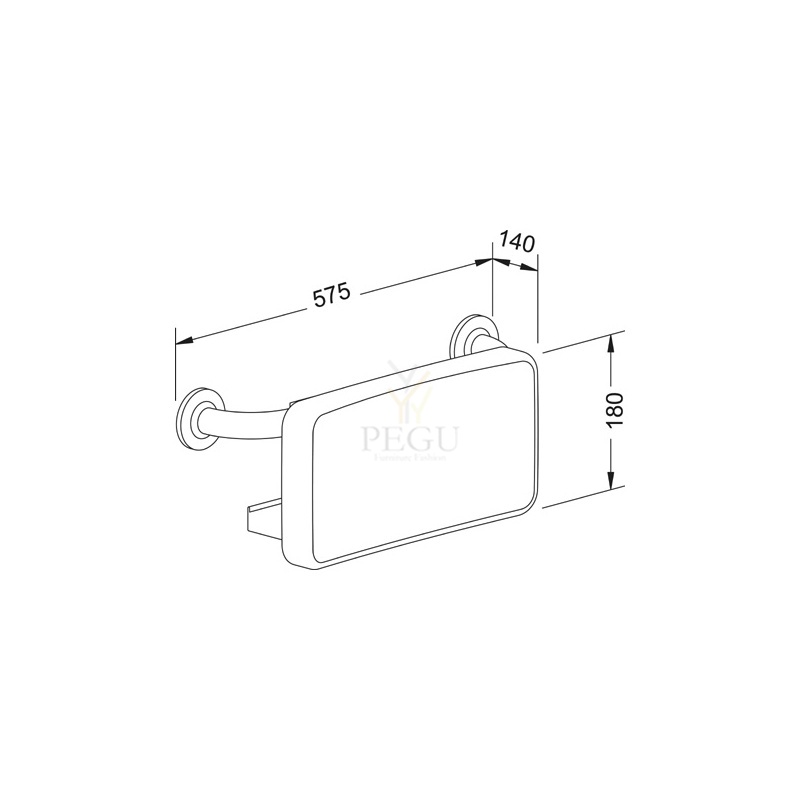

Seljjatugi sinale + käetugi kinnitus
Kaubamärk:
Ühik: kompl
Tarneaeg: 14 päeva
Müüja: PEGU OÜ
Teie valik on tehtud – nüüd on aeg tellida ja nautida!
PEGU.ee e-poest ostmine on kiire, lihtne ja turvaline:
✔ Lisage tooted ostukorvi ja täitke tellimusandmed.
✔ Valige sobiv tarneviis ja maksemeetod.
✔ Kinnitame tellimuse ning asume kohe selle täitmisele!
Kiire tarne, mugav ostlemine ja usaldusväärne teenindus – kõik selleks, et saaksite oma uue lemmiktoote kiiresti kätte!
PEGU.ee – kvaliteet, stiil ja mugavus ühes kohas!
Failid
General description
-
Wall-floor grab bar, with three support points, made of a diameter of 32 mm AISI 304 stainless steel tube, bent in an "L" shape at 90o and with a 32mm diameter lateral arm, welded on the lower part of the grab bar and also bent at 90°.
-
With snap flange covers that conceal the installation screws, improving the aesthetics of the bars once installed on the wall.
-
These grab bars offer a great safety and comfort to the user, helping to make the bathroom much safer for the elderly or those with reduced
mobility. Models suitable for public use.
-
Well suited for keeping bathrooms and public enclosures barrier-free.
-
Highest durability and great resistance to rusting.
-
Optionally, these grab bars can be electrically isolated, installing the electrical isolation kit code KA0020.
-
Supplied with plugs and screws to fix the bar to a brick wall.
Components and materials
-
BSD020C: right hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSI020C: left hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSD020CS: right hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
BSI020CS: left hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
TUBING: made of a 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screw holes for wall mounting.
-
SNAP FLANGE COVER: three units made of AISI 304 stainless steel, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
-
214,00 €
Be-line lift-up shower seat with leg
Ref. 511930W
Be-line removable lift-up for people with reduced mobility.
Large model.
Removable: easy to remove with anti-theft locking system. Reduces the number of shower seats in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Suitable for intensive use in public places or the healthcare sector.
Solid seat made from high strength polymer.
Non-slip surface.
Reinforced by a central, hinged leg which folds automatically.
Matte white aluminium finish provides a good visual contrast with the wall.
5 concealed fixing points.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 443 x 450 x 480mm.
Folded dimensions: 87 x 541mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-line lift-up shower seat with leg
Ref. 511930W
| Height | 480mm |
|---|---|
| Depth | 443mm |
| Width | 450mm |
| Finish | Matte white |
Be-Line drop-down support rail with leg, L. 650mm, anthracite
Ref. 511962C
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 650 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail with leg, L. 650mm, anthracite
Ref. 511962C
| Height | 210mm |
|---|---|
| Length | 650mm |
| Width | 120mm |
| Finish | Powder-coated metallised anthracite aluminium |
Be-Line drop-down support rail with leg, L. 850mm, white
Ref. 511963W
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCs or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 850 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail with leg, L. 850mm, white
Ref. 511963W
| Height | 210mm |
|---|---|
| Length | 850mm |
| Width | 120mm |
| Finish | Powder-coated matte white aluminium |
