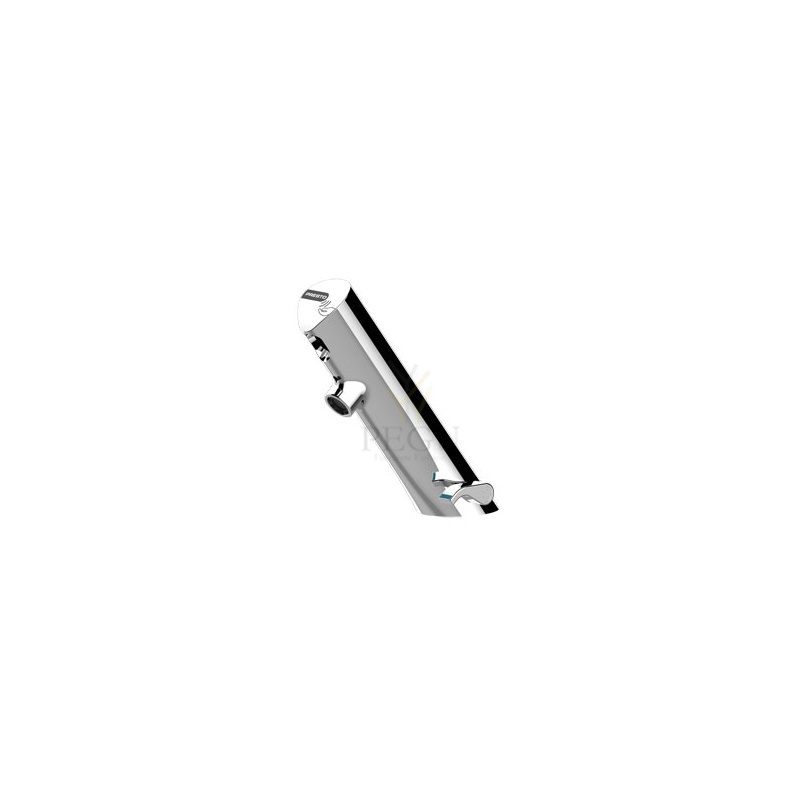

Sensoriga IR segisti kontaktivaba valamule PRESTO SAFE 68077 3l/min
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ
PRESTO SAFE
Viide: 68077 - Sensoriga kontaktivaba segisti PRESTO SAFE - 3l / min
Töörõhk: 1 kuni 5 baari Voog: 3 l / min integreeritud vooluregulaatoriga Kvaliteetne katlakivivastane aeraator Veevarraste vastane disain Voolu aeg: 7 sekundit reguleeritav PRESTOCOMiga: http://www.presto.fr/whatabout/prestocom/ Eakate ja puuetega inimeste jaoks mõeldud elektrooniline päästikuteta päästik Hüdrauliline toiteallikas: G 3/8 "(12x17) Toide: Integreeritud 9V liitiumaku Materjali ja värvi viimistlus: Messingist kroomitud viimistlus Termiline takistus: Vastupidav temperatuurile 75 ° C 30-minutiliste termiliste löökide korral
PRESTO SAFE
Ref: 68077 - Deck-mounted mixer sensor tap - 3l/min
> Working pressure :
1 to 5 bar
> Flow :
3 l/min with integrated flow regulator High quality anti-limescale aerator Anti-water-hammering design
> Flow time:
7 sec adjustable with PRESTOCOM : http://www.presto.fr/whatabout/prestocom/ Electronic effortless trigger suitable for elderly and disabled people
> Hydraulic supply :
G 3/8" (12x17)
> Power supply :
Integrated 9V lithium battery
> Material and colour finish :
Brass body Chrome finishing
> Thermal resistance :
Resistant to a temperature of 75°C for 30 minute thermal shocks
> Security :
One position temperature limiting system to avoid any risk of scalding Automatic shutdown of solenoid valve in case of power failure or sensor error Duty flush 30 sec each 24h after last use (adjustable flow time and frequency) Low battery alert (blinking led light)
> Delivered with :
1 Brass clamping nut
1 Gasket and 1 Washer
2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves
2 Filter gaskets
1 Self-adhesive sticker
Instruction manual
> Standards & approvals :
Molded chrome-plated body in accordance with EN 12540
Brass in accordance with NF EN1982, EN12164, EN12165, UBA list compliant 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227 ACS
Video
Sensoriga valamusegisti
kroom
VOLTA
Presto
kroom
Joogifontaan kinnitus seina FP-004, satiin
622,20 €
SENSOR - LIQUID SOAP DISPENSER 950ML BOTTLE WP 102E
86 x 298 x 121 mm
Choose product variant
- Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
- All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
Further available surfaces: see below. - With EWAR® eModule touch-free operated and non-drip soap pump.
- Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
- Inspection slot to indicate fill level.
- Accessible for refilling through lockable, hinged housing.
- Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
- eModule battery-powered with two 1.5 V Baby/LR14 batteries.
Power supply available as an option. - Wear parts can be replaced as modules.
- Mounting: With three screws through key holes and one optional anti-theft hole in the back wall.
- Delivery includes fixing material, batteries and first fill with soap.
- Weight (in kg): 2,8
439,20 €
SENSOR - DISINFECTANT DISPENSER 950ML TANK WP 102E-7
86 x 298 x 121 mm
- Sensor disinfectant dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
- All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
Further available surfaces: see below. - With EWAR® eModule touch-free operated disinfectant pump with 950 ml tank.
- Designed for standard disinfectants.
- Inspection slot to indicate fill level.
- Accessible for refilling through lockable, hinged housing.
- Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
- eModule battery-powered with two 1.5 V Baby/LR14 batteries.
Power supply available as an option. - Wear parts can be replaced as modules.
- Mounting: With two screws through key holes and one optional anti-theft hole in the back wall.
- Delivery includes fixing material and batteries.
- Weight (in kg): 1,8
457,50 €
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
water inlet | G 1/2" |
water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
outlet | d = 40 mm |
bowl inner dimension | d = 245 mm |
weigth | 4 kg |
suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
