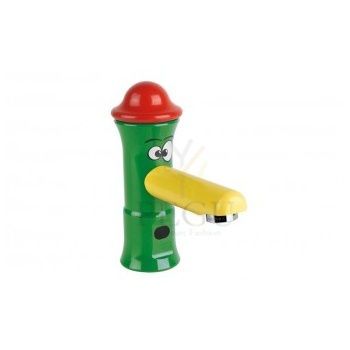

Sensoriga veekraan KIDS, eelsegatud vesi
Kaubamärk:
![Idral-PEGU](https://www.pegu.ee/media/gavial/.image/brand-thumb/general/Idral/IDRAL_uff.jpg)
Ühik: tk
Tarneaeg: 4-5 nädalad
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ
Veekraan sensoriga
Failid
Kraan, külma või eelsegatud veele
Elektroisolatsioon klass 1
Kaal 3,8 kg
Voolutarve 1,3-4,8 A
Koguvõimsus 1010W-1150W
Kaitseklass IP23
Müratase 58-68dB(2m kaugusel)
Kuivatusaeg 10-15 sek.
Automatne kummikute pesur düüsiga, 12V, 50Hz
automatic washing system for wellingtons with jets - 12V, 50Hz
AMO 01 is a stainless steel automatic washing system for wellingtons with sensor-controlled water nozzles. When stepping into the washing chamber of the system (scanning zone) water starts to flow from the nozzles automatically and wellingtons are cleaned of dirt. Water stops flowing with a certain time delay after the foot has been removed from the scanning zone.
AMO 01 is designed for a single pipe inlet of pre-mixed water from the circulation or water pre-mixed by means of a thermostatic valve.
The AMO 01 automatic washing system is intended mainly for operations with slight shoe contamination where quick washing at maximum water savings is guaranteed.
Package contents
- body of the washing machine
- photocell head
- nozzles – 8 pcs
- electromagnetic valves 2 pcs
- corner valves with filter
- connecting hoses
Radius of sensor | 0 – 0,4 m |
Water inlet | G 1/2“ |
Water pressure | 0,3 – 1,0 MPa |
Outlet | d = 32 mm |
Inner dimensions of the trough | 250 x 400 x 280 mm |
Electricity protection | IP 55 |
Power supply | 12 V, 50 Hz |
Power requirement | 10 VA |
Source of power supply | ZAC 1/20 (max. 2 x AMO 01) |
ZAC 1/50 (max. 5 x AMO 01) | |
Weight | 18 kg |
- Set up water inlet as per picture
- Set up outlet d = 32 mm
- Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC
Keraamiline pissuaar Caprino radariga Sanela, integreeritud adapter 240V/AC
SLP 23RZ
Urinal Caprino with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal,when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
Order number | 01235 |
Code | SLP 23RZ |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
1207,00 €
> Working pressure : 1 to 5 bar
> Flow : 3 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design
> Hydraulic supply : G 3/8" (12x17)
> Power supply : Integrated 6V CRP2 lithium battery
> Material and colour finish : Injected molded metal body and cover Chrome finishing
> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shocks
> Security : Temperature limiting system to avoid any risk of scalding Anti-overflow security time is set to 30 seconds Anti-blocking system preventing the water to flow continuously
> Delivered with : 1 Brass clamping nut 1 Gasket and 1 Washer 2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves 2 Filter gaskets 1 Self-adhesive sticker Instruction manual
> Standards & approvals : Molded chrome-plated body in accordance with EN 12540 Brass in accordance with NF EN1982, EN12164, EN12165 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
