Sisu kraanile Presto MAESTRO G 1/2"
Kui oled leidnud endale sobiva toote, klõpsa lihtsalt LISA KORVI,
mine OSTUKORVI, vali TELLI, täida andmed ja vali tarnemeetod.
Nii lihtne see ongi – ost ootab vaid paari klõpsu!
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ
For orders from European Union countries, please send a price inquiry to our email. To calculate the shipping cost, please provide the address. For companies, include your VAT number.

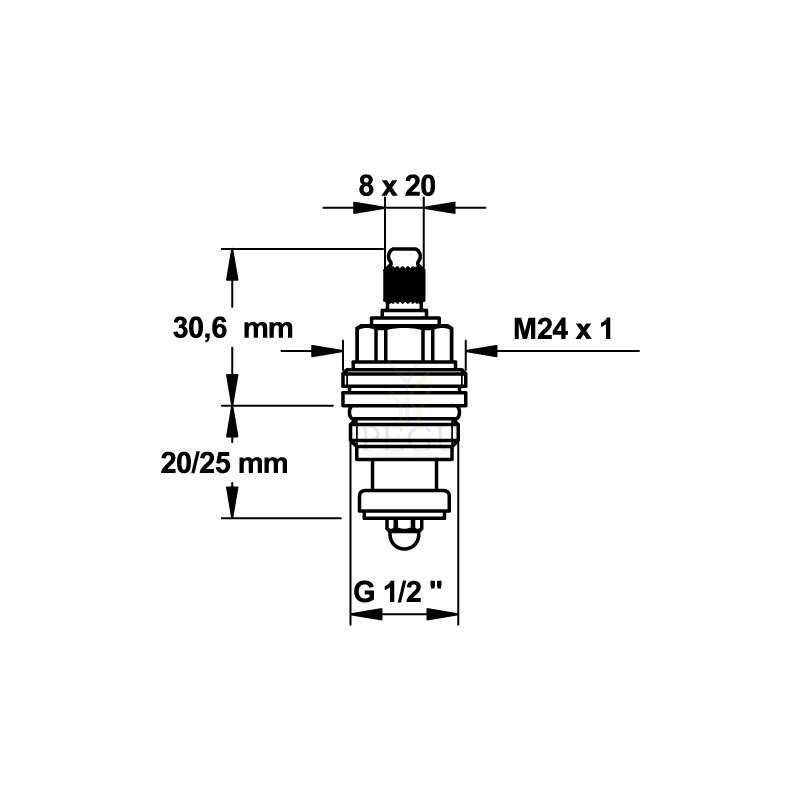

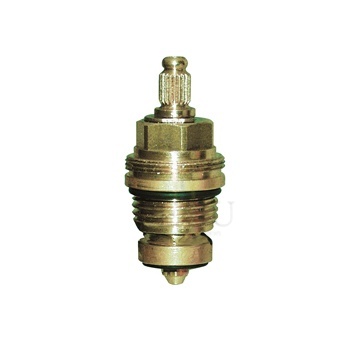

Sisu kraanile Presto MAESTRO G 1/2"
SIMPLE CARTRIDGE REPLACEMENT FOR PROFESSIONAL PRESTO TAP
Twin hole pre-rinse set with mixer
Ref. 5633UK
Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with 180mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Twin hole pre-rinse set with mixer
Ref. 5633UK
| Connector | M1/2" |
|---|---|
| Height | 1110-1230mm |
| Drop height | 345 - 585mm |
| Flow rate | 25 lpm |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
Wall-mounted pre-rinse set with mixer
Ref. G6433
Complete pre-rinse set without bib tap.
Wall-mounted mixer, F3/4" with 150mm centres with:
- Valve heads with control knobs.
- Non-return valves integrated in the mixer.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Wall-mounted pre-rinse set with mixer
Ref. G6433
| Connector | F3/4" |
|---|---|
| Flow rate | 9 lpm |
| Width to the wall | 35-162mm |
| Finish | Chrome-plated brass |
Pressure-balancing mixer set and column with retracting hand spray
Ref. 2599EP
Ideal for babies' baths.
Anti-scalding safety: HW flow rate is reduced if CW supply fails.
Securitouch thermal insulation prevents burns.
Retracting hand spray with 2 jet options: flow straightener/rain effect.
Swivelling column H. 200mm L. 220mm.
Retracting hand spray with two jet options (flow straightener/rain effect)
Ø 35mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.
Mixer body and column with smooth interiors.
Flow rate 12 lpm at 3 bar.
Sculptured control lever.
Mixed water outlet L. 160mm.
BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane flexible hose, smooth interior and exterior, low water volume (interior Ø 6mm).
Counterweight specific to flexible hose.
F⅜" PEX flexibles with filters and non-return valves.
Reinforced fixing via 2 stainless steel rods.
475,80 €
Ref: 70822 - Column – deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks Fast filling of tanks: 20L /min at 3 bar
Reinforced body / column interface
Robust mixing handle - possibility of installing it laterally
Product design
Adjustable wall support
Locking hook to avoid musculoskeletal disorder
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Single-lever mixer with ceramic cartridge with flow rate of 20L / min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black hand shower M 1/2'' with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-tartar shower nozzle - Locking hook for continuous flow - integrated NF check valve
Interchangeable anti-tartar flow straightener
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
20L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body, spout and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70802 - Deck-mounted single hole mixer with upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance
Robust spout: 22 mm in diameter
Intuitive and ergonomic knobs: easy grip
Hygiene: spout with smooth interior
Product design
Ease of cleaning
High spout to let large containers pass
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Deck-mounted single hole mixer with upward spout
360 ° swivel spout, projection 250 mm, height under spout 251 mm, diameter 22 mm. Spout thickness: 1.5 mm. 1/4 turn ceramic head with flow rate 37L / min at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
37L / min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with:
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
> Option:
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
