Ø 45 x 283 x 185 mm
low pressure

• Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
• Version: low pressure, suitable for unpressurised tanks. Operating pressure 2–6 bar.
• Solid stainless steel body; visible surfaces satin finished.
  Further available surfaces: see below.

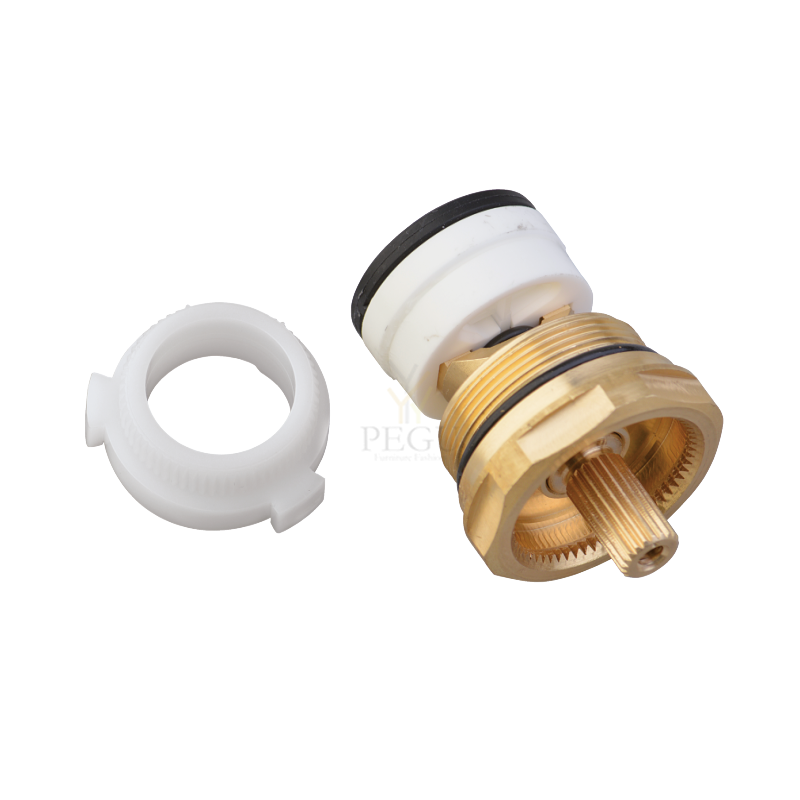

• High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
• Neoperl® air bubble spray M21 x 1 mm.
• Design height: 283 mm
  Outlet height: 199 mm
  Projection: 98 mm
  Length of lever: 140 mm
• Wear parts can be replaced as modules.
• Installation dimensions: Ø 33-40 mm, surface thickness max. 40 mm
• Mounting: With one counternut.
• Delivery includes fixing material and three flexiblen, stainless steel covered connecting tubes.

• Weight (in kg): 2,00

• Mirror in robust, germ-reducing and easy-care stainless steel mirror sheet metal (AISI 304).
• Mounting: With four Torx® locking screws.
• Delivery includes fixing material.
• Other dimensions available upon request.

• Weight (in kg): 2,8

Kätepaberidosaator R/V teras, 750 lehte poleeritud

298 x 448 x 120 mm
ca. 750 paper towels

• Paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• With deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 750 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material and one pack of paper towels.

• Weight (in kg): 4,1
