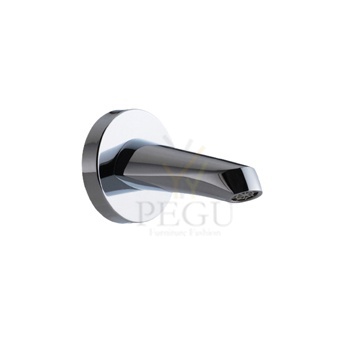

Tila seinast, 87 mm, seina paksus 200-300mm

Tootekood: P30906
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 122,00 €
115,90 €
Kuumakse alates: 9,78 €
Kogus: - +
   - või -

Tila seinast, 87 mm, seina paksus 20-30cm



> Working pressure :

1 to 5 bar

> Flow :

Full flow straightener
Water flow depending on the chosen tapware

> Functionality :

Wall-mounted chrome-plated brass spout without water retention

> Hydraulic supply :

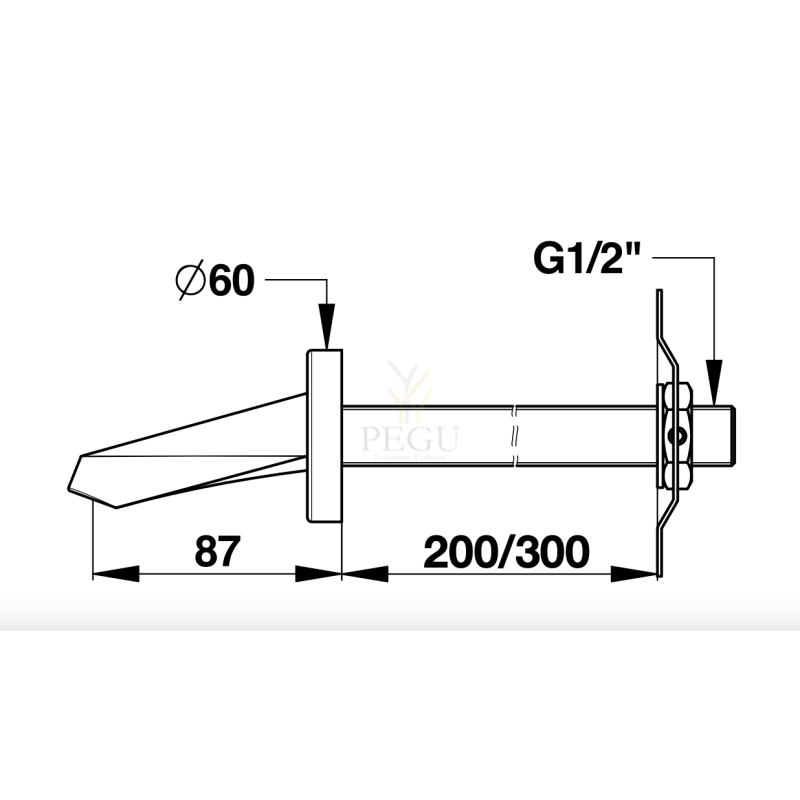

M G 1/2" (15x21) with threaded spigot for cross-partition installation from 200 to 300mm

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Delivered with :

1 suitable gasket 1 rose
1 flow straightener 1 nut

> Standards & approvals :

Brass body and component in accordance with EN 1982/CC754S, NF EN 12164/CW614N, NF EN 12165/CW617N Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
