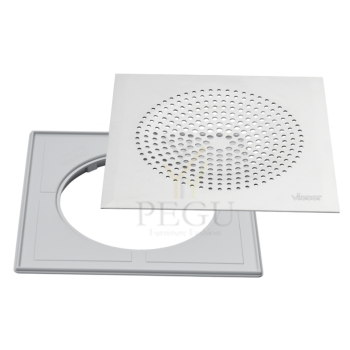

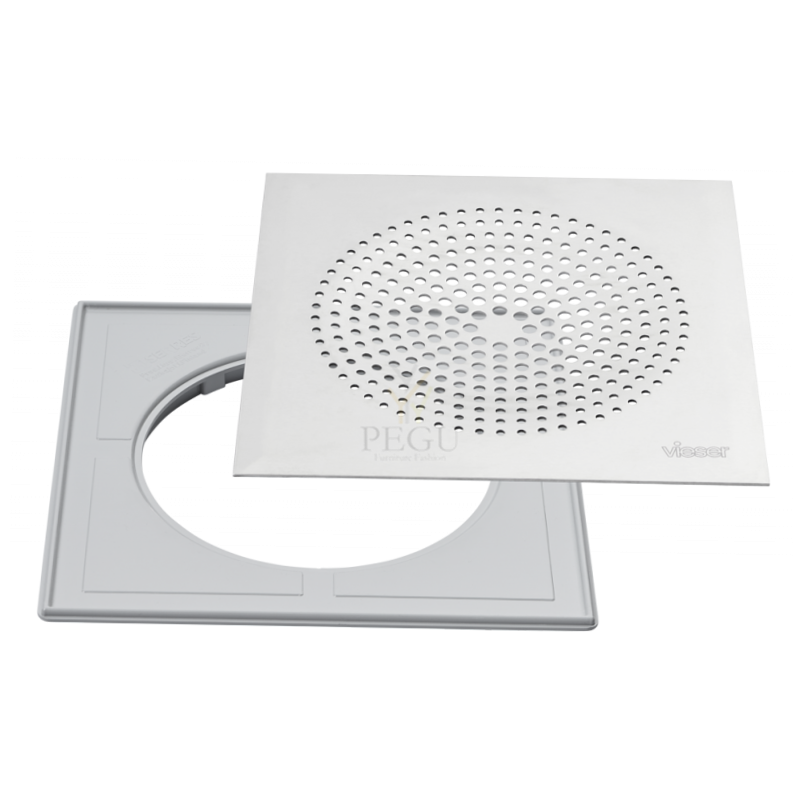

Trapikaan Vieser Modern 197x197 51241_2.png Zoom

Trapikaas plastraamiga 51241 Vieser Modren 197x197 mm RST

Tootekood: AKV51241
Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva
Hind:
57,95 €
Kuumakse alates: 4,96 €
Kogus: - +

Trapikaas plastraamiga 51241 Vieser Modren 197x197 mm

Roostevaba teras

Vieser Modern - Stainless steel grating with plastic frame – 197×197

HVAC No. 3315952


For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.
51241
HVAC No.
3315952
EAN
6418685512413
Package (box/pallet)
20/480
Package dimensions
26 x 2 x 22 cm
Package weight
0,6kg
Material
Grating: Stainless steel (AISI 304) Frame: ABS
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.



Sarnased tooted

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: Antrasiitti
Tootekood: LVI3316976 ,   Tarneaeg: 14-21 päeva
55,92 €

Vieser One 52641 Horisontaalne kuivtrapp 32/40



Vieser One untrapped drain DN32/40 without support legs



HVAC No. 3315942



Suitable for sewerage systems for regular wastewater.

The Vieser One untrapped drain is part of the Vieser floor drain system.

The untrapped drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool.

An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

You can download water proofing pictures as a PDF & DWG file.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Vieser untrapped drain is compatible with Vieser design floor drains:





Technical specifications

Vieser No.
52641
HVAC No.
3315942
EAN
6418685526410
Package (box/pallet)
15/180
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,54 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
0,6l/s
General information

The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating.

The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

Tootekood: AKV52641 ,   Tarneaeg: 3-7 päeva
25,42 €

Vieser One  6004309 Nurgatrapp 75 45°

Vieser One floor drain 45° DN75 (without support legs)

HVAC No. 3317304


Suitable for sewerage systems for regular wastewater.

The Vieser One floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.
6004309
HVAC No.
3317304
EAN
6430066742196
Package (box/pallet)
18/144
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9kg
Material
Polypropylene PP
Usage
The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.
Flow
1,4 l/s
General information

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.


Tootekood: AKV6004309 ,   Tarneaeg: 3-7 päeva
39,65 €

Vieser nurgatrapikaas Corner Core 376 x 376 x 526 RST

Roostavaba teras



Vieser Corner Core triangular floor drain 376 x 376 x 526



HVAC No. 3315980


An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Core adds a personal touch and a polished look to your bathroom.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system



  • Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
  • Suitable for both new construction and renovations.
  • To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
  • The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an easy-to-use installation template.
  • The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
  • The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate).
  • Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser Corner floor drain system - Tiling example

(DWG)Vieser Corner floor drain system - Tiling example



Technical specifications

Vieser No.
52928
HVAC No.
3315980
EAN
6430066741519
Package (box/pallet)
12/144
Package dimensions
410 x 410 x 580
Package weight
1,2kg
Material
Stainless steel (AISI 304)
Durability
200kg
Usage
For tiled floors on top of the floor drain. Installation takes place when the floor is being tiled. The gap between the floor drain and the triangular grating must not be sealed.
General information

The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an installation template.

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system



Tootekood: AKV52928 ,   Tarneaeg: 3-7 päeva
303,98 €

Vieser 6001188 DOT Accoya õlitatud D600MM ümmargune



Vieser Dot Cover Accoya, Oiled

HVAC No. 3315995
EAN 6430066741649

One cover option offered for the Vieser Dot Design floor drain system is Vieser Dot ⌀600mm Accoya, Oiled. Accoya is wood that has been treated using natural methods. Although the treatments provide the covers with a natural protection, we recommend treating the wooden covers with a protective agent once or twice a year.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Accoya wood, produced under the Accoya trademark, is acetylated radiata pine. Acetylation refers to a process in which wood is treated with acetic anhydride. Accoya is naturally renewable, and it is also more durable than many threatened tropical hardwoods. Accoya has been granted numerous environmental certificates, including the Nordic Swan Ecolabel. All Accoya® wood is procured from well-managed forests that meet environmental requirements and which have been granted FSC, PEFC or other regional certification.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Technical specifications

Vieser No.
6001188
HVAC No.
3315995
EAN
6430066741649
Package (box/pallet)
1/10
Package dimensions
66 x 4,5 x 66cm
Package weight
12,5kg
Material
Accoya, Oiled
The size of the wooden lath in the floor drain cover
32,72mm
The size of the openings in the floor drain cover
4mm
General information

The package contains: The Vieser Dot ⌀600 mm Accoya cover and the Vieser lifting tool to make cleaning the drain easier.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Tootekood: AKV6001188 ,   Tarneaeg: 3-7 päeva
1134,60 €
