Trapikaan Vieser 51254_2.png Zoom

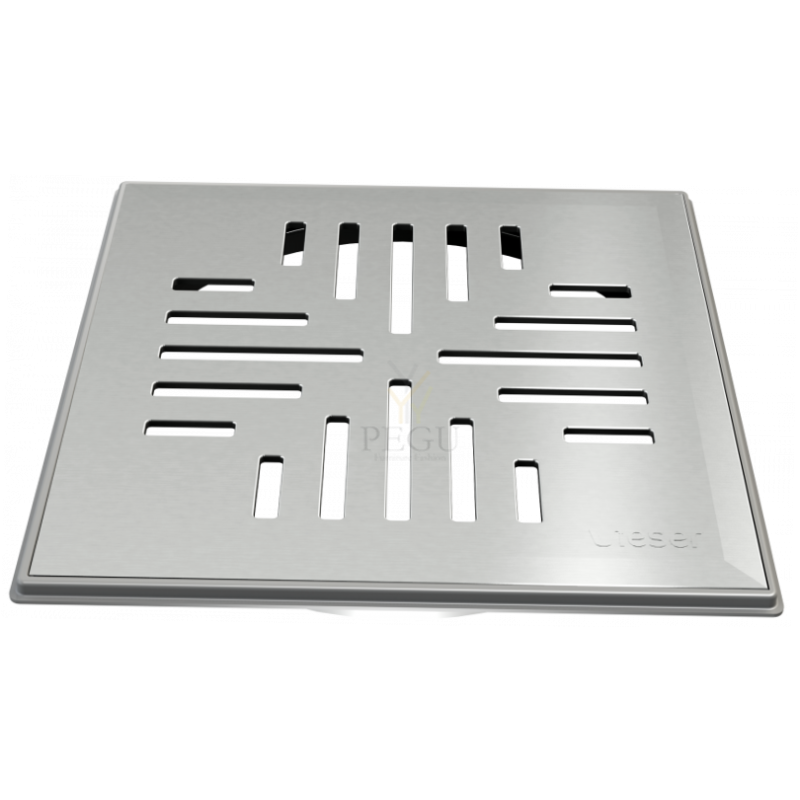

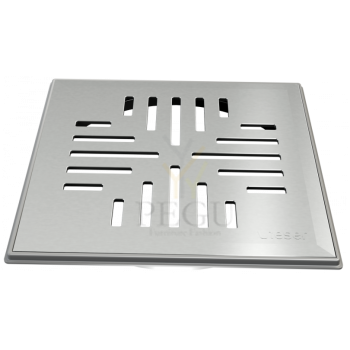

Trapikaas plastraamiga 51254 Vieser Classic 160x160 mm RST

Tootekood: AKV51254
Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva
Hind:
51,85 €
Kuumakse alates: 8,81 €
Kogus: - +

Trapikaas plastraamiga 51254 Vieser Classic 160x160 mm

Roostevaba teras

Vieser Classic - Stainless steel grating with plastic frame – 160×160

HVAC No. 3316255


For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor



Technical specifications

Vieser No.
51254
HVAC No.
3316255
EAN
6418685512543
Package (box/pallet)
20/800
Package dimensions
22 x 2 x 18,5 cm
Package weight
0,4kg
Material
Grating: Stainless steel (AISI 304) Frame: ABS
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.
