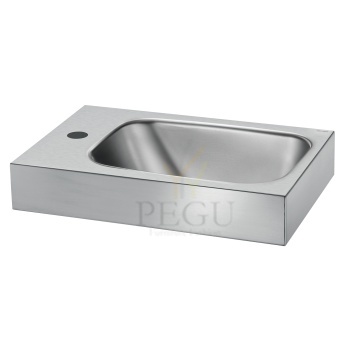

Valamu roostevaba teras Delabie LAVANDO seinale segistiavaga 450 x 300mm
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ
Teie valik on tehtud – nüüd on aeg tellida ja nautida!
PEGU.ee e-poest ostmine on kiire, lihtne ja turvaline:
✔ Lisage tooted ostukorvi ja täitke tellimusandmed.
✔ Valige sobiv tarneviis ja maksemeetod.
✔ Kinnitame tellimuse ning asume kohe selle täitmisele!
Kiire tarne, mugav ostlemine ja usaldusväärne teenindus – kõik selleks, et saaksite oma uue lemmiktoote kiiresti kätte!
PEGU.ee – kvaliteet, stiil ja mugavus ühes kohas!

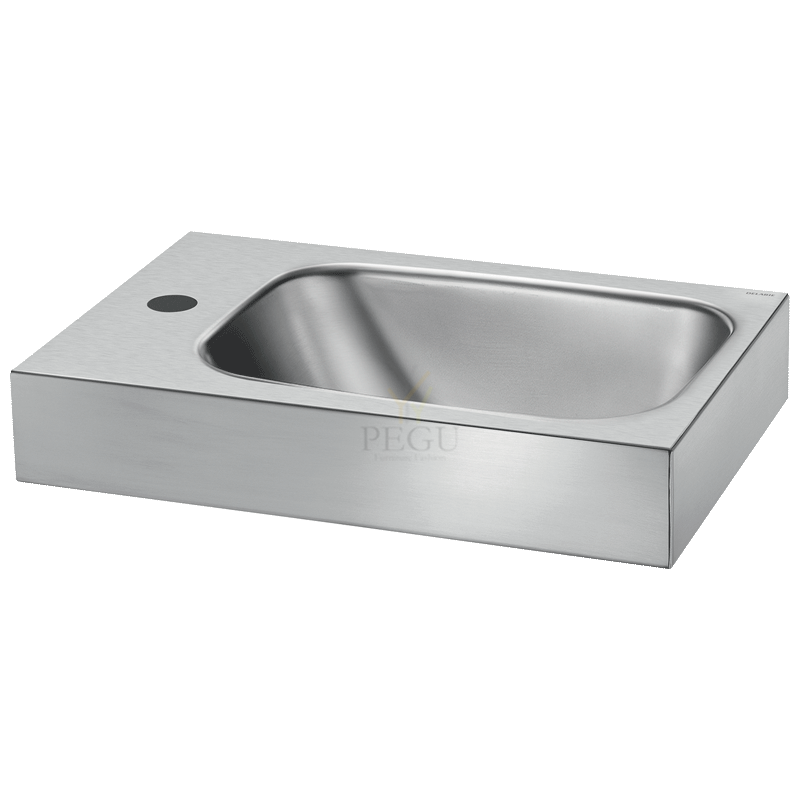

Valamu roostevaba teras Delabie LAVANDO seinale segistiavaga 450 x 300mm
LAVANDO WC hand washbasin
Ref. 121360
Design-led hand washbasin.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With tap hole Ø35mm on left side.
Supplied with waste 1¼".
Without overflow.
Supplied with fixings.
CE marked. Complies with norm EN 14688.
Weight: 3.2kg.

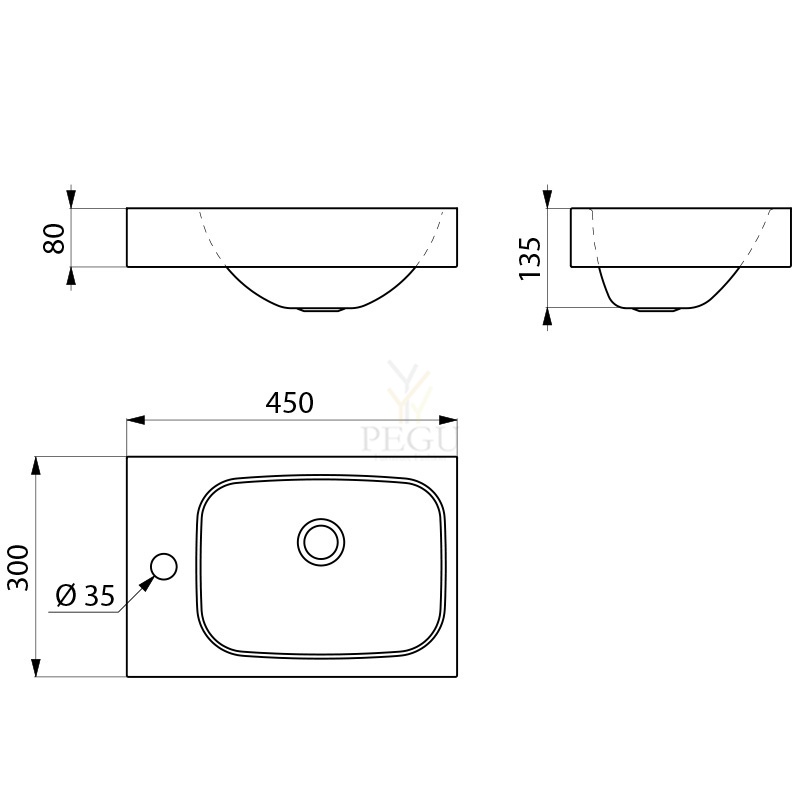

TECHNICAL CHARACTERISTICS
LAVANDO WC hand washbasin
Ref. 121360| Height | 135mm |
| Length | 450mm |
| Width | 300mm |
| Thickness | 1.2mm |
| Finish | Polished satin 304 stainless steel |
Failid
HEMI inset round washbasin Ø 310mm - Ref. 120470
Round basin for recessed installation from above or below.
Basin internal diameter: 310mm.
Cut-out diameter: 330mm for installation from above, 310mm for installation from below.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm. One-piece, seam-free pressed bowl.
Rounded edges prevent injury. Supplied with 1¼" waste. Without overflow.
CE marked.
Complies with European standard EN 14688. Weight: 1.5kg.
[Formerly ref: 0213470201]
DESCRIPTION
Loputussüsteem pissuaarile aegreleega 230V/AC antivandaalne
SLP 01Z
Time-controlled flushing unit, 230 V AC
Characteristics
- vandal-proof
- time-controlled flushing unit for urinal troughs SLPN 02(Z) - 05(Z)
- adjustable flushing time 0,5 - 15,5 s, standard 5 s
- parameters adjustment by remote control SLD 04
- adjustable flushing interval 10 min - 3 days, standard 1 h
- after switch on the power supply 230 V AC, SLP 01Z starts to flush in adjusted interval
| Order number | 01011 |
| Code | SLP 01Z |
Supply specification
Technical information
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 40 l/min (inf. data)
Water inlet: male thread G 1“
Water outlet: male thread G 1“
Pissuaari mehhanism infra-red paigalduse karbiga, 24 V DC
SLP 02K
Urinal infra-red flushing unit with a mounting box, 24 V DC
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
| Order number | 01022 |
| Code | SLP 02K |
Supply specification
Technical information
Mounting box dimension:140 x 140 x 75 mm
Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
