Tootegrupid
Deloabie roostavabateras  valamu seinale 2.jpg Zoom

Valamu roostevaba teras Delabie LAVANDO seinale segistiavaga 450 x 300mm

Tootekood: DE-121370
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 708,00 €
637,20 €
Kuumakse alates: 54,16 €
Kogus: - +

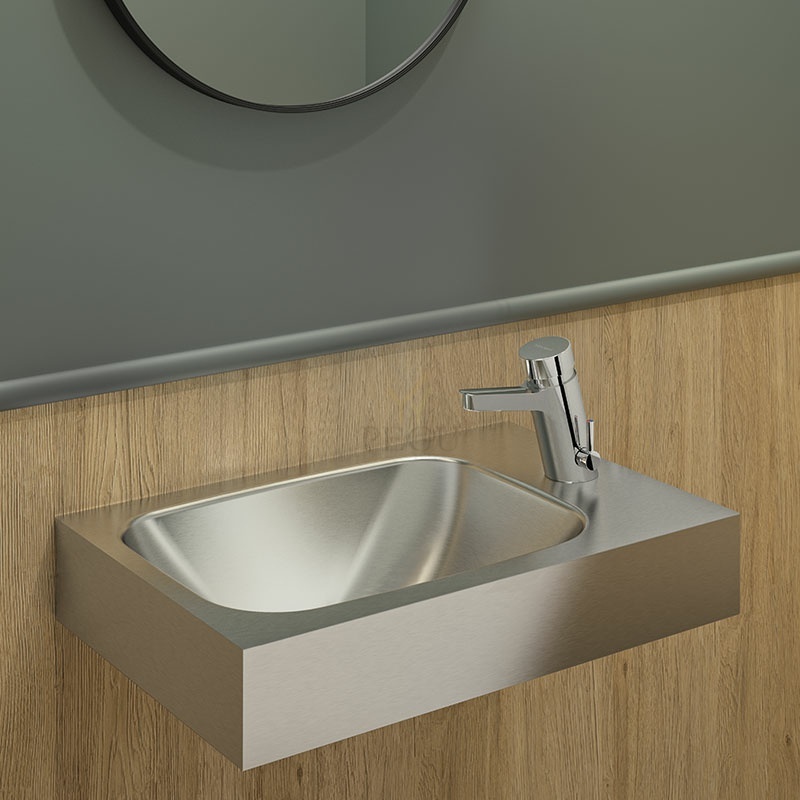

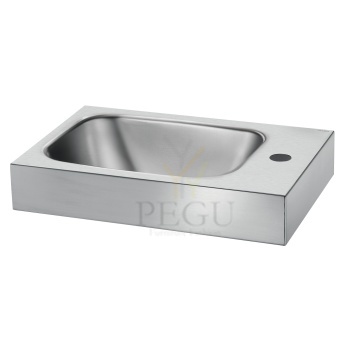

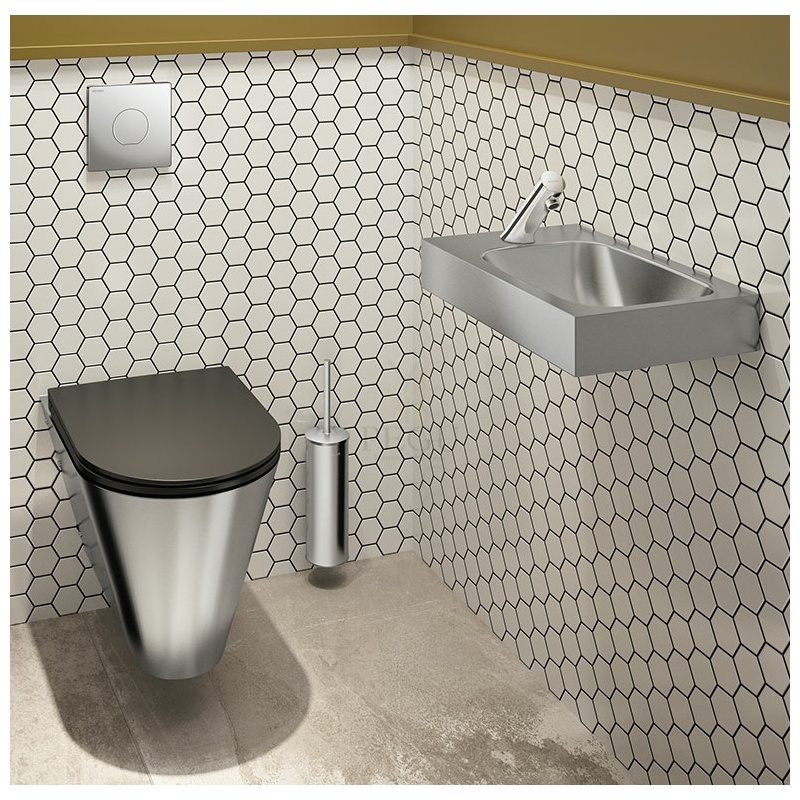

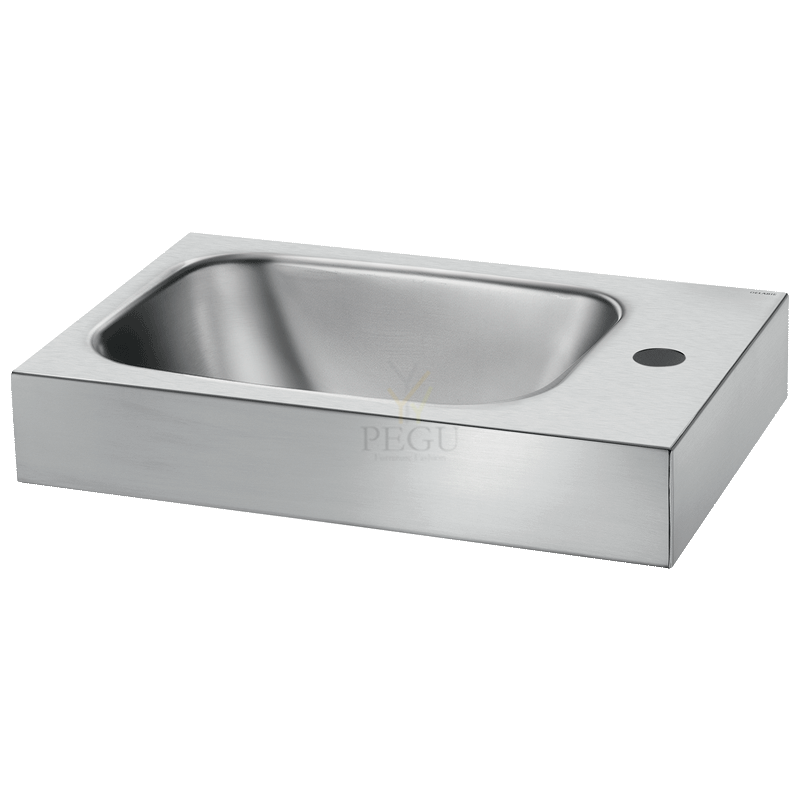

Valamu roostevaba teras Delabie LAVANDO seinale segistiavaga 450 x 300mm

LAVANDO WC hand washbasin

Ref. 121370

WC hand washbasin, 450 x 300mm.
Design-led hand washbasin.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With tap hole Ø35mm on right side.
Supplied with waste 1¼".
Without overflow.
Supplied with fixings.
CE marked. Complies with norm EN 14688.
Weight: 3.2kg.

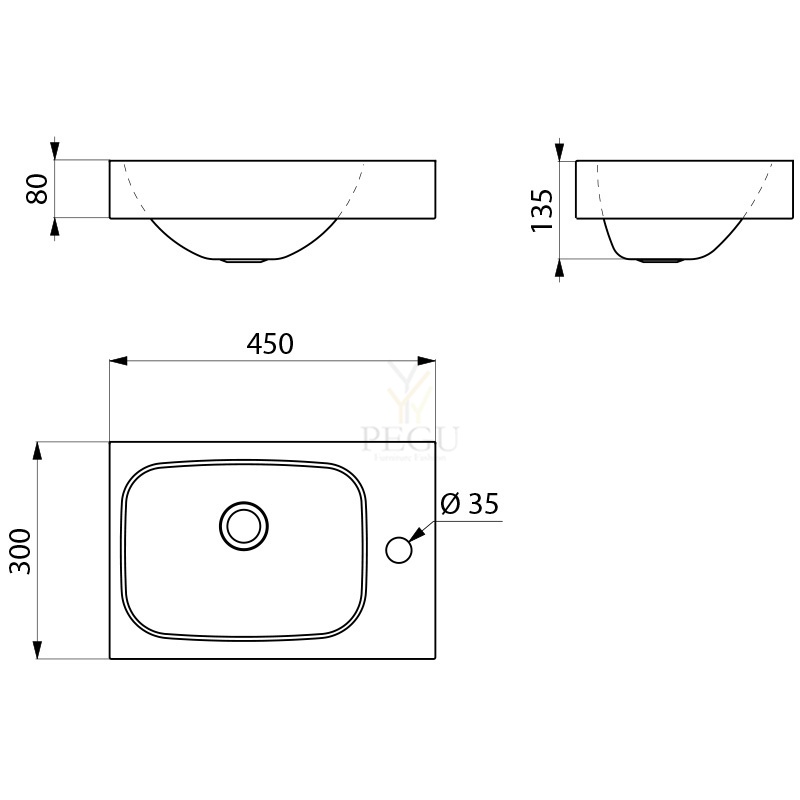

TECHNICAL CHARACTERISTICS

LAVANDO WC hand washbasin

Ref. 121370

Height 135mm
Length 450mm
Width 300mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
Sarnased tooted

Liivapüüdur SAND-02 Elcee 220, 3,5L, R/V teras, AISI304

Kasutusjuhend:

Liivapüüdur SAND-02 Elcee 220, 3,5L, roostevaba teras, AISI304

Liivapüüdur SAND-02 Elcee 220 on mõeldud liiva filtreerimiseks veest ning selle maht on 3,5 liitrit. Seade on valmistatud roostevabast terasest (AISI304) ja on ideaalne paigaldamiseks otse kraanikausi või valamualuse alla.

Paigaldamine:
Liivapüüdur on lihtne paigaldada otse kraanikausi või valamualuse alla, kasutades selleks sobivaid kinnitusvahendeid.

Kasutamine:
Liiv ja mustus kogunevad seadme alumisse kaussi. Seadme efektiivse töö tagamiseks on vajalik kaussi regulaarselt tühjendada.

Hooldus:
Kauss on kinnitatud korpuse külge kahest küljest kinnitustega. Kaussi puhastamiseks eemaldage see kinnitustest, tühjendage ja vajadusel puhastage.

Üldmõõtmed millimeetrites: Ø174 x 235

Sissevoolu mõõtmed millimeetrites: 1,5"

Väljavoolu mõõtmed millimeetrites: 1,5"

Materjal: AISI 304

Materjali paksus millimeetrites: 1,5

Kogukaal kilogrammides: 2,50



Wash trough acc. Separator SAND-02

Description

The sand catcher has a capacity of 3,5 litres and is ideal for filtering sand from water.
It is easy to mount directly under a washbasin or a wash trough.

The sand catcher is delivered with a flexible outlet that will enable straight or bent installation possibilities.

Material: Stainless steel AISI 304



Overall dimension in mm Ø174 x 235

Inlet dimension in mm 1.5"

Outlet dimension in mm 1.5"

Material AISI 304

Material thickness in mm 1.5

Gross weight in kg 2.50

Tootekood: I-SAND-02 ,   Tarneaeg: 3-4 nädalad
469,00 €
Tootekood: PINS-535-OVC + PWC-Wood mahagon ,   Tarneaeg: 8 nädalad
1795,00 €

AUM 026 INV is a stainless steel, partly wall-built in washbasin, containing the combination of a liquid soap dispenser, water tap and hand dryer in a small space. The washbasin is adjusted to be used also by wheelchair persons – it is shallow, completed with handles, the waste is hidden behind the wall. Controlled by durable piezo-pushbuttons, electronically controlled turn-off (the period of water running is settable by the owner). The washbasin is to be mounted through the wall, all technology components are behind the wall, and thus cannot be damaged by users (anti-vandal design).

A wall-hanged version may be supplied to order, or a version without any of the functions (e.g. onlz water plus soap, or water plus dryer). The washbasin is made of AISI 304 stainless steel. A recommended cleaning agent for stainless products maintenance: Würth – preservation (order no. 0893 121 K), cleaning (order no. 893 121 1).

Basic technical information
Power supply: 230 V, 50 Hz
IP protection: IP 55
Dimensions (visible from outside): 800 x 800 x 363 mm
Required thickness of wall: min. 100 mm
Outlet: d = 40 mm

Requirements for setting up the construction
  1. Opening in the wal 740 x 740 mm
  2. Prepared el. supply cable 3C x 1,5 s 230 V, 50 Hz
  3. Prepared water outlet according to technical scheme


Complete delivery
  • Stainless-steel washbasin with handles
  • Electronic hand dryer
  • Electronic soap dispenser
  • Electronic water tap
  • Through-wall frame with bolts
  • Waste with a stink trap
  • 230V / 12V source for the electronics

Tootekood: AZP-AUM 026.TV INV ,   Tarneaeg: 3-4 nädalad
4300,00 €

DRINKING SYSTEM

  • Frost-free drinking system for cattle and horses
  • Fresh and clean water for the animals all year round
  • Without wiring or electricity
  • A minimum of maintenance
  • No concern about filling the drinking vessels
  • No concern about cleaning the drinking vessels

Automaatjootjad sobivad kasutamiseks nii karjamaal kui ka tallides ning nende läheduses asuvates joogikohtades.
Jootjaid on lihtne kasutada ning hobused saavad kiiresti aru, et mugavam on vee juurdevoolu avamiseks vajutada klapile
mitte nina otsaga vaid selle ülaosaga. Kui koon (mokad) on joomiseks vabad, joobki hobune loomulikul viisil vee pindmiselt
kihilt. Seetõttu olemegi valinud jooginõuks lai ja sügav kauss, et tekiks joomiseks mugav veepind.

Töötamise põhimõte
Tõusutoru on varustatud isetühjeneva 3-tee
ventiiliga, mis on paigaldatud kaevu, mis omakorda
on süvistatud pinnasesse.
Kui jootjat ei kasutata on veest tühi nii ventiil kui
ka tõustoru, milles olev vesi võiks muidu külmuda.
Nii jootja ventiil ja tõusutoru on külmumiskindlad nii
kaua kuni on külmumiskindel ka vee toitetorustik.


Tootekood: FL-A362 ,   Tarneaeg: 14-21 päeva
1152,90 €

Joogifontään seinale sensoriga R/V teras AISI304 12V/50Hz

AFO 01.Yst. steel sensor controlled drinking fountain

AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

  • st. steel drinking fountain
  • nozzle
  • sensor and electronic
  • electromagnetic valve
  • connecting flexible hose
  • corner valve with filters
  • siphon
  • mounting material
water inlet G 1/2"
water pressure 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)
  2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)
outlet d = 40 mm
bowl inner dimension d = 245 mm
weigth 4 kg
suppply 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)
  6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)
power supply ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)

Tootekood: AZP-AFO01.Y ,   Tarneaeg: 3-4 nädalad
817,00 €
