Tootegrupid
Valamu RST UNITO Delabie 2.jpg Zoom

Valamu roostevaba teras Delabie UNITI seinale segistiavaga 395 x 405mm

Tootekood: DE-121830
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 699,00 €
629,10 €
Kuumakse alates: 53,47 €
Kogus: - +

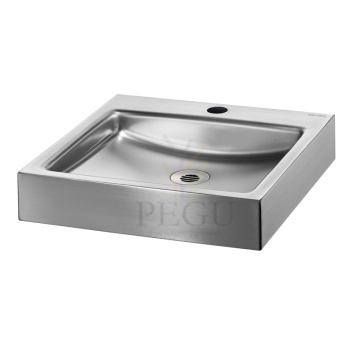

Valamu roostevaba teras Delabie UNITI seinale segistiavaga 395 x 405mm

UNITO wall-mounted washbasin

Ref. 121830

Wall-mounted washbasin, 395 x 405mm.
Sleek and timeless design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With Ø 35mm central tap hole.
Supplied with 1¼" waste.
Without overflow.
Supplied with fixings.
CE marked. Complies with European standard EN 14688.
Weight: 3.6kg.

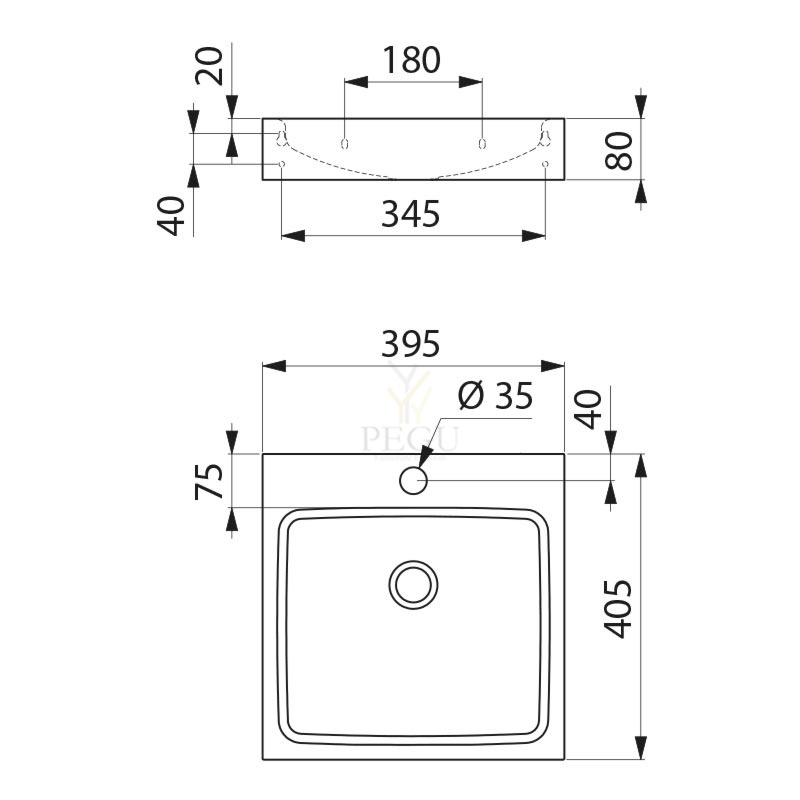

TECHNICAL CHARACTERISTICS

UNITO wall-mounted washbasin

Ref. 121830
Height 80mm
Length 395mm
Width 405mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
Sarnased tooted

Pesurenn roostevabast terasest 1800mm Intra PV180, konsoolidega

Pesurenn konsoolidega 1800mm

Tootekood: I-P180V ,   Tarneaeg: 1-4 nädalat
451,00 €
WC poti raam loputuskastiga , antivandaalse R/V teras katega


BSAZ 5

Wall module construction for WC with vandal-resistant st.steel cover






BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).



The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).








Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover


Basic technical information
Dimensions of wall module: (1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover: 510 × 230 × 30 mm
Water inlet: G 1/2"
Outlet: DN 100


Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)


Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons

Tootekood: AZP-BSAZ 5 ,   Tarneaeg: 3-4 nädalad
1055,00 €

Delabie Valamu HEMI d310mm AISI304 poleeritud roostevaba teras

HEMI inset round washbasin Ø 310mm - Ref. 120471

Round basin for recessed installation from above or below.

Basin internal diameter: 310mm.

Cut-out diameter: 330mm for installation from above, 310mm for installation from below.

Bacteriostatic 304 stainless steel.

304 stainless steel, bright polished

Stainless steel thickness: 1mm. One-piece, seam-free pressed bowl.

Rounded edges prevent injury. Supplied with 1¼" waste. Without overflow.

CE marked.

Complies with European standard EN 14688. Weight: 1.5kg.



Tootekood: DE-120471 ,   Tarneaeg: 14-21 päeva
244,80 € (10%)
272,00 €

REDO wall-mounted washbasin
Ref. 121710

Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.



TECHNICAL FEATURES

REDO wall-mounted washbasin
Ref. 121710

Height 150mm
Length 375mm
Width 430mm
Thickness 1.2mm
Finish 304 polished satin stainless steel

Tootekood: DE-121710 ,   Tarneaeg: 14 päeva
472,50 € (10%)
525,00 €
395x395x950 mm

Vandal resistant dinking fountain-glass filler


Bebedero para 1 usuario fabricado en acero inoxidable EN-10088 /1.4301 (AISI 304) de
calibre 18. Acabado superficie: Satinado-Brillo.
• Profundidad tarja: ~ 40 mm.
• Boquilla surtidor de agua de acero inoxidable antivandálica, antigiro y con barrera
sanitaria.
• Botón antivandálico.
• Puerta de registro con tornillos escamoteados.
• Entrada: Roscada, NPT 1/2”
• Salida: Manguera flexible ø25 mm.
• Sujecci
ó
n a la pared mediante tornillería
• Peso Neto: ~ 18.7 kg
• Sistema de anclaje de la puerta en el mueble que permite su apertura pero no su
retirada o caída.
• Parte inferior con sistema de nivelación regulable.
• Filos redondeado para evitar cortes.

• Bebedero 100% antivandálico.
Tootekood: FMM-1000A-1B ,   Tarneaeg: 7-14 päeva
793,00 €
