Valamusegisti madalsurve Wagner Ewar Roostevabast terasest AISI303 harjatud

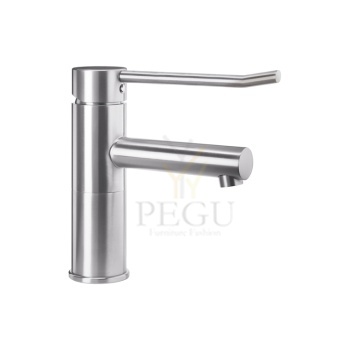

BASIN TAP WA 200-1
Ø 45 x 170 x 185 mm
low pressure
- Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
- Version: low pressure, suitable for unpressurised tanks. Operating pressure 2–6 bar.
- Solid stainless steel body; visible surfaces satin finished.
Further available surfaces: see below. - High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
- Neoperl® air bubble spray M21 x 1 mm.

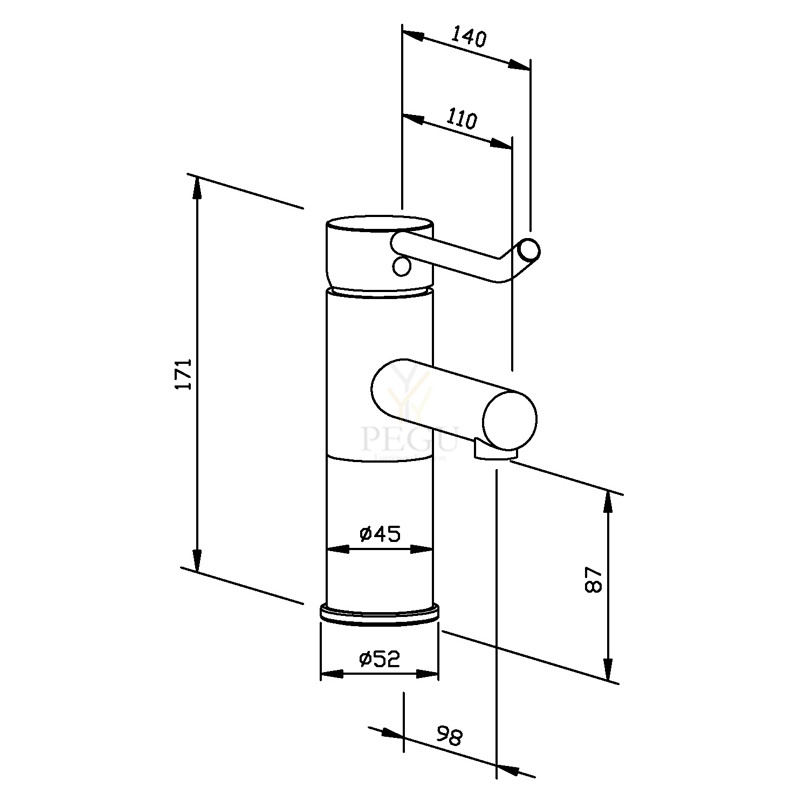

- Design height: 171 mm
Outlet height: 87 mm
Projection: 98 mm
Length of lever: 140 mm - Wear parts can be replaced as modules.
- Installation dimensions: Ø 33-40 mm
Surface thickness max. 40 mm - Mounting: With one counternut.
- Delivery includes fixing material and three flexible connecting hoses clad in stainless steel.
- Weight (in kg): 1,90
AVAILABLE SURFACES | ORDER NUMBERS |
---|---|
satin finished (standard) | 924277 |
highly polished | 931277 |
Single-lever basin tap in stainless steel (AISI 303) for counter mounting. Version: low pressure. Solid stainless steel body; visible surfaces satin finished. Ceramic mixer cartridge with adjustable temperature limit setting. Delivery includes fixing material and three flexible connecting hoses clad in stainless steel.
Dimensions: Ø 52 x 171 x 185 mm
Outlet height 87 mm
Projection 98 mm
Length of lever 140 mm
Article No. WA200-1
PERLATOR M22X1 924282
for WA100 - 210
(from 2018)
Ø 19 x 16 mm
0,01 kg
22,37 €
THREAD PIECE PERLATOR M22X1 923952
for WA100 - 210
(from 2018)
Ø 22 x 19 mm
ca. 18 g
54,90 €
CARTRIDGE 924260
for WA 100 - 210
Ø 35 x 60 mm
0,05 kg
54,90 €
