Valamusegisti termostaadiga Delabie H960015 SECURITHERM inva H95, L120
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Kohustuslik märge projekti spetsifikatsioonis: PEGU OÜ
Termostaat segisti valamule Delabie H960015 SECURITHERM inva H95, L120

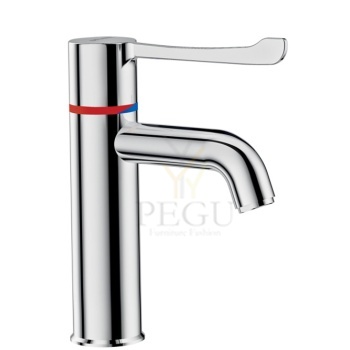

SECURITHERM thermostatic basin mixer
Ref. H960015
Thermostatic sequential mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Anti-scalding failsafe: shut-offs automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Single hole mixer with curved spout H. 95mm L. 120mm, equipped with a hygienic flow straightener with no impurity retention and will withstand thermal shocks.
Scale-resistant sequential thermostatic cartridge for single lever control of the flow rate and temperature.
Temperature control from cold water up to 40°C with temperature limiter set at 40°C.
Thermal or chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
No manual contact thanks to Hygiene control lever L. 146mm.
No pop-up waste.
PEX flexibles F3/8" supplied with stopcocks in chrome-plated brass, filters and Ø 15mm compression fittings.
Fixing reinforced by 2 stainless steel rods.
Mixer ideal for healthcare facilities, nursing homes, hospitals and clinics.
Mixer Suitable for people with reduced mobility.
Also available with copper tails.

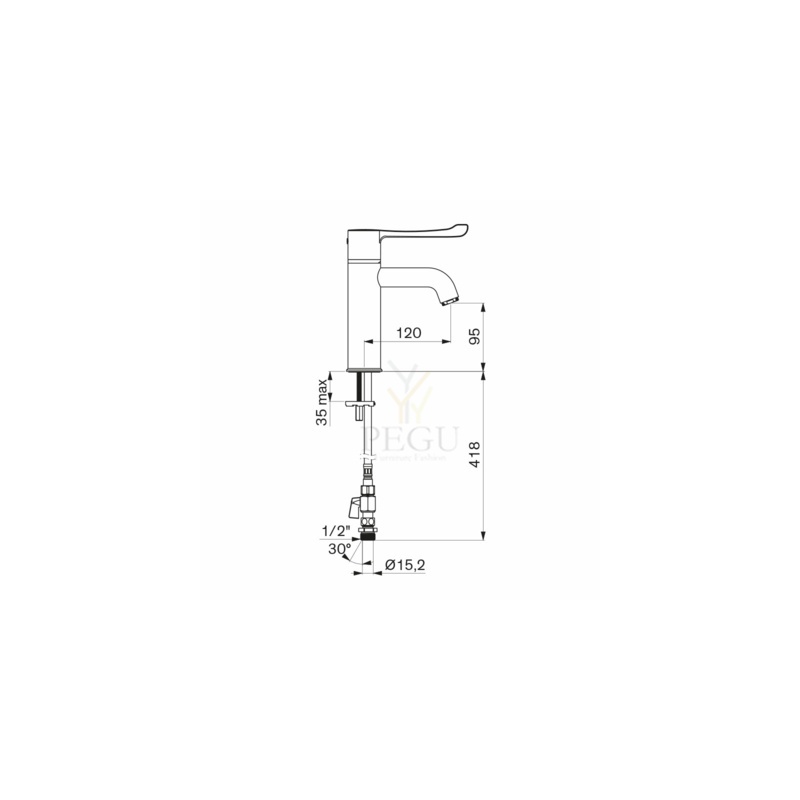

TECHNICAL CHARACTERISTICS
SECURITHERM thermostatic basin mixer
Ref. H960015| Connector | M1/2'' Ø 15mm |
| Technology | SECURITHERM Securitouch sequential mixer |
| Drop height | 95mm |
| Spout length | 120mm |
| Flow rate | 5 lpm |
| Temperature limiter | Yes |
| Finish | Chrome-plated brass |
Termostaatsegistid
Termostaatsegisti Thermixa 100
- Artikli number 57501
- Viimistlused Kroom
- Standardfunktsioonid
- Keraamiline tööorgan.
- Põletuskaitsega
- Veesäästu funktsioon Eco-Klik.
- 1/2" ühendus käsiduši voolikule.
- Kummiaeraator – lihtne puhastada.
- Standardne tsentrite vahe 150 mm.
- Varustatud ilukatete ja ekstsentrikutega.
- Ümberlüliti.
Duššikomplekt Üladušš+käsidušš+termostaat
- Põletuskaitsega
- Veesäästu funktsioon Eco-Klik.
- Kummiaeraator - lihtne puhastada.
- Standardne tsentrite vahe 150 mm.
- Varustatud ilukatete ja ekstsentrikutega.
- Ümberlüliti
- Sisaldab 300 mm peadušši, käsidušši ja voolikut
- 1750 mm dušivoolik metallkattega.
1256,00 €
100,65 €
- Article no.: 57970
- Finishes: Chrome, Silver (hose)
- Standard Features:
- Ceramic cartridge
- 3 spray modes
- Standard 150mm centres
- Including headshower, handshower and hose
- With wall plates & eccentric unions
620,00 €
General description
-
Wall-floor grab bar, with three support points, made of a diameter of 32 mm AISI 304 stainless steel tube, bent in an "L" shape at 90o and with a 32mm diameter lateral arm, welded on the lower part of the grab bar and also bent at 90°.
-
With snap flange covers that conceal the installation screws, improving the aesthetics of the bars once installed on the wall.
-
These grab bars offer a great safety and comfort to the user, helping to make the bathroom much safer for the elderly or those with reduced
mobility. Models suitable for public use.
-
Well suited for keeping bathrooms and public enclosures barrier-free.
-
Highest durability and great resistance to rusting.
-
Optionally, these grab bars can be electrically isolated, installing the electrical isolation kit code KA0020.
-
Supplied with plugs and screws to fix the bar to a brick wall.
Components and materials
-
BSD020C: right hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSI020C: left hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSD020CS: right hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
BSI020CS: left hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
TUBING: made of a 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screw holes for wall mounting.
-
SNAP FLANGE COVER: three units made of AISI 304 stainless steel, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
-
