Tootegrupid
390.jpg Zoom

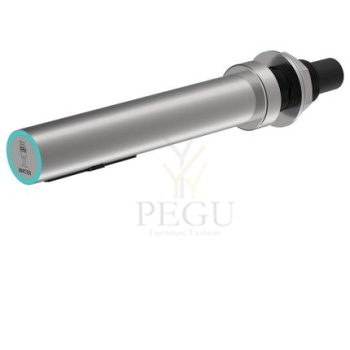

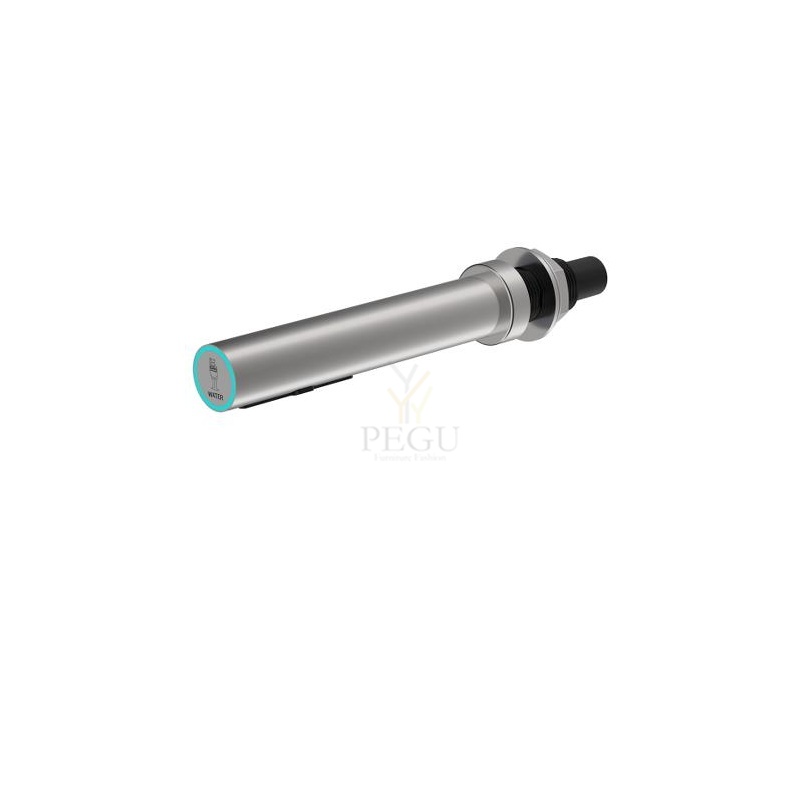

Veekraan kontaktivaba WaterTap 390

Tootekood: DAN390
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
866,20 €
Kuumakse alates: 74,01 €
Kogus: - +

390-WATERTAP WALL MOUNTED



DAN DRYER WaterTap is with automatic sensor for touch-free operation is a hygienic solution for all private and commercial washrooms.

The water faucet is part of a complete product line, which also includes hand dryer and soap dispenser. The product line is available for either deck or wall mounting.

The water tap features a minimalist, modern design in stainless steel with satin finish. It is easy to operate and to clean.



PRODUCT DESCRIPTION

• Wall mounting.

• Activation distance adjustable between 20-120 mm.

• Water pressure: 10-15 PSI.

• Water flow less than 3,8 l/m.

• Stainless steel with satin finish.

• Infra-red sensor and elektronic timer.

• 2-year warranty.




Sarnased tooted
Tootekood: D7651100 ,   Tarneaeg: 7-14 päeva
199,00 €

Sensoriga valamusegisti

kroom

VOLTA

Presto

kroom





Tootekood: P55160 ,   Tarneaeg: 7 päeva
695,40 €

Põlvekraan kas külma, või eelsegatud veele, isesulgev 390mm

15 sek on töötsükkel

Tootekood: P31683 ,   Tarneaeg: 7 päeva
176,90 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad
105,00 €

20 tk komplektis



Tootekood: P90207 ,   Tarneaeg: 7 päeva
22,37 €
Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
