Vieser 51183 Tõsterõngas 18mm
Vieser 51183 Tõsterõngas 18mm

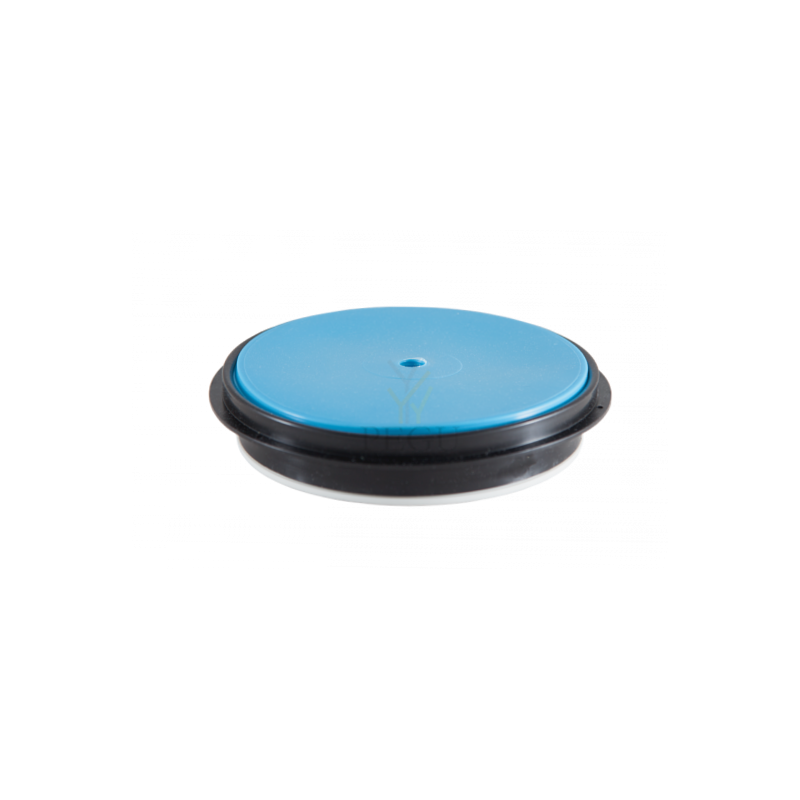

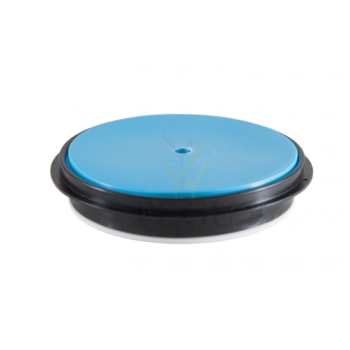

Vieser low model extension ring 18 mm
The package contains the extension ring, a white lip seal, a grey clamping ring and a white support ring.
Please note:
a grey clamping ring is included in the package. The grey clamping ring is meant to be used with this extension ring type only. A white clamping ring is supplied with all other Vieser extension rings and floor drains.
The white lip seal and grey clamping ring are meant to be used with a low extension ring only, and they are not compatible with other Vieser products.
A low extension ring must always be the uppermost extension ring and it cannot be extended with another extension ring.
Video
Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.
Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.
Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.
Lattiakaivon kannen lisätiedot:
- Valmistaja: LVI-Pörssi
- Kehyksen ulkomitat: 197 x 197 mm
- Korkeus 4 mm
- Materiaali: ruostumaton teräs (AISI304)
- Väri: Punainen
Vieser One 6004512 Horisontaaltrapp EXTRA madal 50 1x32 1.2L/sek
Vieser One horizontal drain DN50 1x32 extra low
The lowest floor drain on the market 69 mm
The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s The low structure is a significant benefit in both renovations and new construction.
Thanks to the efficient flow rate, the drain is suitable for use in both showers and bathtubs, and it is compatible with all Vieser drain covers and extension rings. The drain has one 32 mm side inlet.
Water trap based on membrane technology
The water trap is based on innovative membrane technology. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.
The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.
Hygienic and quiet
The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.
The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.
The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:
The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.
Technical specifications
The floor drain is compatible with Vieser extension rings, distance rings, membrane flange and gratings/covers. The drain has one 32 mm side inlet. The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.
Trapikaas reguleeritava terasraamiga 51291 Vieser Modren 197x197 mm RST
Roostevaba teras
Vieser Modern - Stainless steel grating with adjustable stainless steel frame – 197×197
The package contains square Vieser stainless steel grating and an adjustable steel frame.
To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction. The total adjustment range is 30 mm.
- Modern grating is our customer survey favourite
- Modern stainless steel grating and adjustable steel frame 197x197 mm
- Comes with an easy-to-install adjustable steel frame
Vieser’s drain and cover combination comes with a 10-year system guarantee.
Our stainless steel gratings are fully compatible with
all our drains and extension rings.
(PDF)Vieser round and square grating in tiled floor
(DWG)Vieser round and square grating in tiled floor
Technical specifications
The package contains a square stainless steel grating and an adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction.
Trapikaas plastraamiga 6005479 Vieser Grid 197x197 mm RST
Roostevaba teras
Vieser Grid with plastic frame 197x197
NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.
- Type approved based on European standard (EN 1253) – Withstands up to 300 kg, excellent flow properties
- Strong and pleasant underfoot – remains firmly in place
- Manufactured in Finland
- Compatible with all Vieser floor drains
The package includes the Vieser stainless steel Classic+ square grating and plastic frame.
Vieser’s drain and grating combination comes with a 10-year system guarantee.
Download a tiling example:
(PDF) Tiling example for Vieser round and square gratings
(DWG) Tiling example for Vieser round and square gratings
Technical specifications
Poripüüdja MAXI porandatrapp 1200x600 RST kogumiskaevuga
Roostevaba teras. Hor. 50 mm. Plaatporand
MUD STOPPER 600x1200 MAXI
Kavikan Kurasyöppö on ajatu nägu, vastupidav ja lihtne puhtana hoida, kuna poriallas on valmistatud roostevabast terasest. Toote kujunduses on mitmeid turvalisust suurendavaid detaile.
PÕRANDA-ALLIKAS JA SAJAVÕRGUD ON ROOSTEVABAST TERASEST • hügieeniline ja lihtne puhastada • kausil pole õmblusi, nurkad on ümardatud • kraan jääb korralikult sajavõrgu alla peitu • sajavõrgu ruudustik takistab libisemist • ümardused teevad pinnast paljale jalale meeldivaks
PORIMAHUTI EHITUS
-
SAJAVÕRK – roostevaba teras, sälgulaius 10 mm, sälgulaius 10 mm
-
SETTEKAST – plastik, läbimõõt 133 mm x 40 mm
-
LUKUKAADER – roostevaba teras
-
PÕRANDAKAUS – roostevaba teras, materjali paksus 1 mm, õmblusteta, nurgad ümardatud
-
PÕRANDAKANAL – Upovieser-toodetele kohandatud
