Horisontaalne trapp VIESER 50 mm

Vieser low model floor drain DN 50

HVAC No. 3315971

Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

Technical specifications

Vieser No.

52614

HVAC No.

3315971

EAN

6418685526144

Package (box/pallet)

24/192

Package dimensions

20 x 11 x 20 cm

Package weight

0,5 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,2l/s

General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.

Tootekood: AKV52614 , Tarneaeg: 3-7 päeva

18,30 €

Horisontaalne trapp VIESER 52615 75 mm

Vieser low model floor drain DN 75

HVAC No. 3315972

Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

Technical specifications

Vieser No.

52615

HVAC No.

3315972

EAN

6418685526151

Package (box/pallet)

24/192

Package dimensions

20 x 11 x 20 cm

Package weight

0,5 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,5l/s

General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.

Tootekood: AKV52615 , Tarneaeg: 3-7 päeva

18,30 €

Vieser One 6004308 Nurgatrapp 75 45° 3x32/40

Vieser One floor drain 45° DN75 3 x 32/40 (without support legs)

HVAC No. 3317303

Suitable for sewerage systems for regular wastewater.

The Vieser One floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

6004308

HVAC No.

3317303

EAN

6430066742172

Package (box/pallet)

15/120

Package dimensions

24 x 14,5 x 22,5 cm

Package weight

0,9kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,4 l/s

General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV6004308 , Tarneaeg: 3-7 päeva

39,65 €

Vieser One 6004309 Nurgatrapp 75 45°

Vieser One floor drain 45° DN75 (without support legs)

HVAC No. 3317304

Suitable for sewerage systems for regular wastewater.

The Vieser One floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package package contains the floor drain, protective lid, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

6004309

HVAC No.

3317304

EAN

6430066742196

Package (box/pallet)

18/144

Package dimensions

24 x 14,5 x 22,5 cm

Package weight

0,9kg

Material

Polypropylene PP

Usage

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

Flow

1,4 l/s

General information

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV6004309 , Tarneaeg: 3-7 päeva

39,65 €

Vieser One 52600 Horisontaaltrapp 50 3x32/40 tugijalgadega

Vieser One floor drain DN 50 3×32/40 with support legs

HVAC No. 3315930

EAN 6418685526007

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

52600

HVAC No.

3315930

EAN

6418685526007

Package (box/pallet)

12/96

Package dimensions

24 x 14,5 x 22,5 cm

Package weight

0,9 kg

Material

polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,2l/s

General information

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52600 , Tarneaeg: 3-7 päeva

47,78 €

Vieser One 52601 Horisontaaltrapp 75 3x32/40 tugijalgadega

Vieser One floor drain DN 75 3×32/40 with support legs

HVAC No. 3315931

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

echnical specifications

Vieser No.

52601

HVAC No.

3315931

EAN

6418685526014

Package (box/pallet)

12/96

Package dimensions

24 x 14,5 x 22,5 cm

Package weight

0,9 kg

Material

polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,6l/s

General information

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52601 , Tarneaeg: 3-7 päeva

47,78 €

Vieser One 52610 Horisontaaltrapp 75

Vieser One floor drain DN75 (without support legs)

HVAC No. 315956

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package package contains the floor drain, protective lid, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Vieser One floor drain is compatible with Vieser design floor drains:

Tootekood: AKV52610 , Tarneaeg: 3-7 päeva

36,60 €

VIESER ONE 52612 trap 50 3X32/40 külg väljajooks

Vieser One floor drain DN50 3×32/40 (without support legs)

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

52612

Package dimensions

23 x 14,5 x 22 cm

Package weight

0,9 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,2l/s

General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52612 , Tarneaeg: 7-14 päeva

36,60 €

Vieser One 52630 Vertikaaltrapp 75 3x32/40

Vieser One vertical floor drain DN 75 3×32/40

HVAC No. 3315935

Suitable for sewerage systems for regular wastewater.

The Vieser One vertical floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

52630

HVAC No.

3315935

EAN

6418685526304

Package (box/pallet)

15/120

Package dimensions

20 x 25 x 20 cm

Package weight

0,65 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

2,3l/s

General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52630 , Tarneaeg: 3-7 päeva

42,70 €

Vieser One 52631 Vertikaaltrapp 75

Vieser One vertical floor drain DN 75

HVAC No. 3315979

Suitable for sewerage systems for regular wastewater.

The Vieser One vertical floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

52631

HVAC No.

3315979

EAN

6418685526311

Package (box/pallet)

15/120

Package dimensions

20 x 25 x 20 cm

Package weight

0,65 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

2,3l/s

General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52631 , Tarneaeg: 3-7 päeva

42,70 €

Vieser One 52640 Horisontaalne kuivtrapp 32/40 tugijalgadega

Vieser One untrapped drain DN32/40 with support legs

HVAC No. 3315936

Suitable for sewerage systems for regular wastewater.

The Vieser One untrapped drain is part of the Vieser floor drain system.

The untrapped drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap.

Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

Technical specifications

Vieser No.

52640

HVAC No.

3315936

EAN

6418685526403

Package (box/pallet)

7/84

Package dimensions

24 x 14,5 x 22,5 cm

Package weight

0,54 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

0,6l/s

General information

The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating. The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

Tootekood: AKV52640 , Tarneaeg: 3-7 päeva

39,65 €

Vieser One 52641 Horisontaalne kuivtrapp 32/40

Vieser One 52641 Horisontaalne kuivtrapp 32/40

Vieser One untrapped drain DN32/40 without support legs

HVAC No. 3315942

Suitable for sewerage systems for regular wastewater.

The Vieser One untrapped drain is part of the Vieser floor drain system.

The untrapped drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool.

An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

You can download water proofing pictures as a PDF & DWG file.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Vieser untrapped drain is compatible with Vieser design floor drains:

Technical specifications

Vieser No.

52641

HVAC No.

3315942

EAN

6418685526410

Package (box/pallet)

15/180

Package dimensions

24 x 14,5 x 22,5 cm

Package weight

0,54 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

0,6l/s

General information

The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating.

The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

Tootekood: AKV52641 , Tarneaeg: 3-7 päeva

25,42 €

Vieser One 6004512 Horisontaaltrapp EXTRA madal 50 1x32 1.2L/sek

Vieser One horizontal drain DN50 1x32 extra low

HVAC No. 3317307

The lowest floor drain on the market 69 mm

The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s The low structure is a significant benefit in both renovations and new construction.

Thanks to the efficient flow rate, the drain is suitable for use in both showers and bathtubs, and it is compatible with all Vieser drain covers and extension rings. The drain has one 32 mm side inlet.

Water trap based on membrane technology

The water trap is based on innovative membrane technology. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.

Hygienic and quiet

The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.

The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.

The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:

The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.

Technical specifications

Vieser No.

6004512

HVAC No.

3317307

EAN

6430066742325

Package (box/pallet)

10/120

Package dimensions

35 x 25 x 70 cm

Package weight

0,5 kg

Material

Polypropylene PP

Usage

Suitable for regular residential wastewater sewage systems in accordance with the Finnish Ministry of the Environment’s decree on buildings’ water and sewer systems.

Flow

1,2 l/s

General information

The floor drain is compatible with Vieser extension rings, distance rings, membrane flange and gratings/covers. The drain has one 32 mm side inlet. The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.

Tootekood: AKV6004512 , Tarneaeg: 3-7 päeva

45,75 €

Vieser One 6004513 Horisontaaltrapp EXTRA madal 50 1x32 jalgadega

Vieser One horizontal drain DN50 1x32 extra low with support legs

HVAC No. 3317308

The lowest floor drain on the market 69 mm

Water trap based on membrane technology

The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.

Hygienic and quiet

The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.

The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.

The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:

The watertightness and proper functioning of Vieser floor drains have been proven through rigorous tests according to the standard EN 1253-2, on which the type approvals granted by RISE are also based.

The package includes the drain, water trap, casting shield, clamping ring, support legs and a tool for installing the clamping ring.

Technical specifications

Vieser No.

6004513

HVAC No.

3317308

EAN

6430066742332

Package (box/pallet)

10/80

Package dimensions

35 x 25 x 10 cm

Package weight

0,8 kg

Material

Polypropylene (PP)

Usage

Suitable for regular residential wastewater sewage systems in accordance with the Finnish Ministry of the Environment’s decree on buildings’ water and sewer systems.

Flow

1,2 l/s

General information

Tootekood: AKV6004513 , Tarneaeg: 3-7 päeva

52,87 €

VIESER ONE trap 52611 75 3X32/40 külg väljajooks

Vieser One floor drain DN75 3×32/40 (without support legs)

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

52611

HVAC No.

7110408

Package (box/pallet)

17/136

Package dimensions

23 x 14,5 x 22 cm

Package weight

0,9 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,6l/s

General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52611 , Tarneaeg: 7-14 päeva

36,60 €

Vieser 6001178 DOT ⌀600mm - Tray renn ümmargune RST

Roostevaba teras

Vieser Dot ⌀600mm - Tray

HVAC No. 3315981

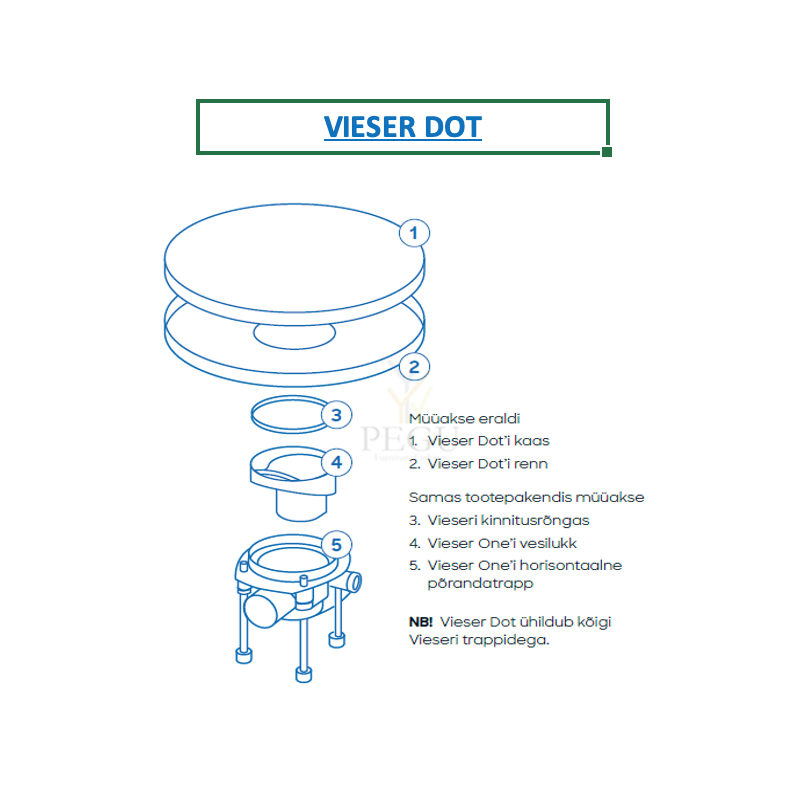

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately.

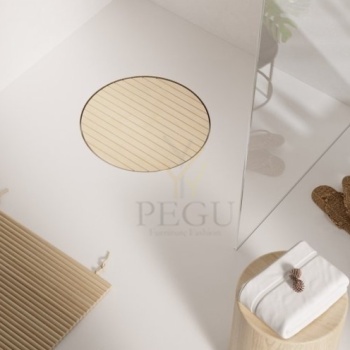

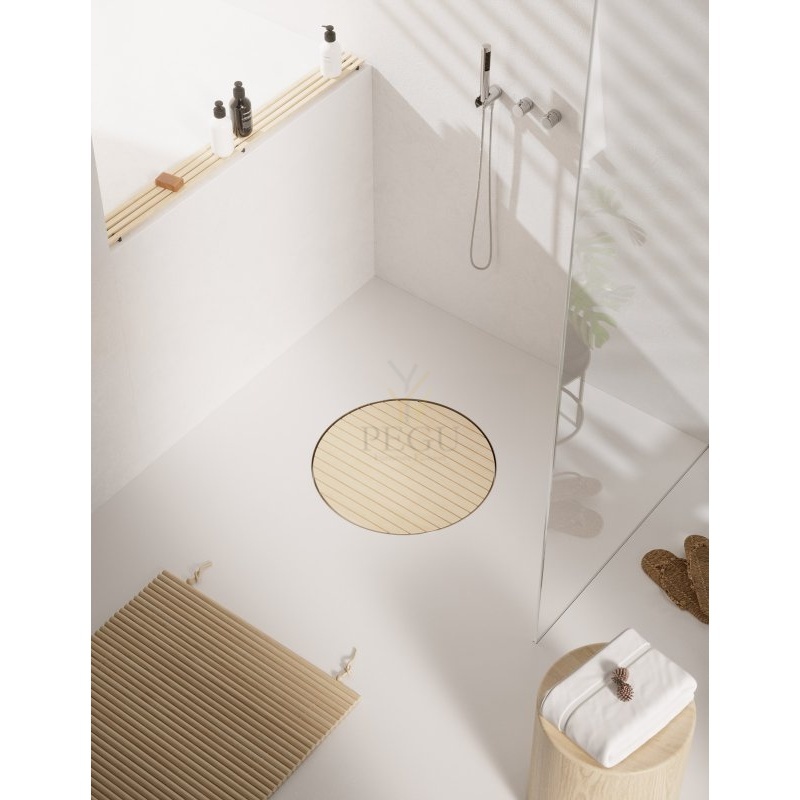

Vieser Dot, with its innovative shape and size, represents a new kind of floor drain system that adds the finishing touch to your bathroom’s interior.

Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
With Vieser One drains, you can also make use of three DN32/40 side inlets for the floor drain to facilitate the placement of the drain and the installation of the pipeline.
Suitable for both new construction and renovations.
The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
The Vieser Dot floor drain system has a patented solution that enables entirely safe installation and a completely watertight membrane joint. The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate) & (Vieser One and Vieser product certificate when using the Vieser membrane flange)
Vieser Dot is a very user-friendly floor drain system. Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Tootekood: AKV6001178 , Tarneaeg: 3-7 päeva

866,20 €
