Vieser One 52641 Horisontaalne kuivtrapp 32/40
Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva
Müüja: PEGU OÜ
Olete teinud oma valiku – nüüd jääb vaid nautida ostu!
Tellimuse vormistamine on kiire ja lihtne:
✔ Lisage soovitud tooted ostukorvi.
✔ Täitke andmed – kas eraisikuna või juriidilise isikuna.
✔ Valige sobiv tarneviis.
Pärast ostu kinnitamist saadetakse teile e-kirjaga teavitus ning meie asume tellimust täitma!
PEGU OÜ – neile, kes hindavad stiili, kvaliteeti ja laitmatut teenindust.

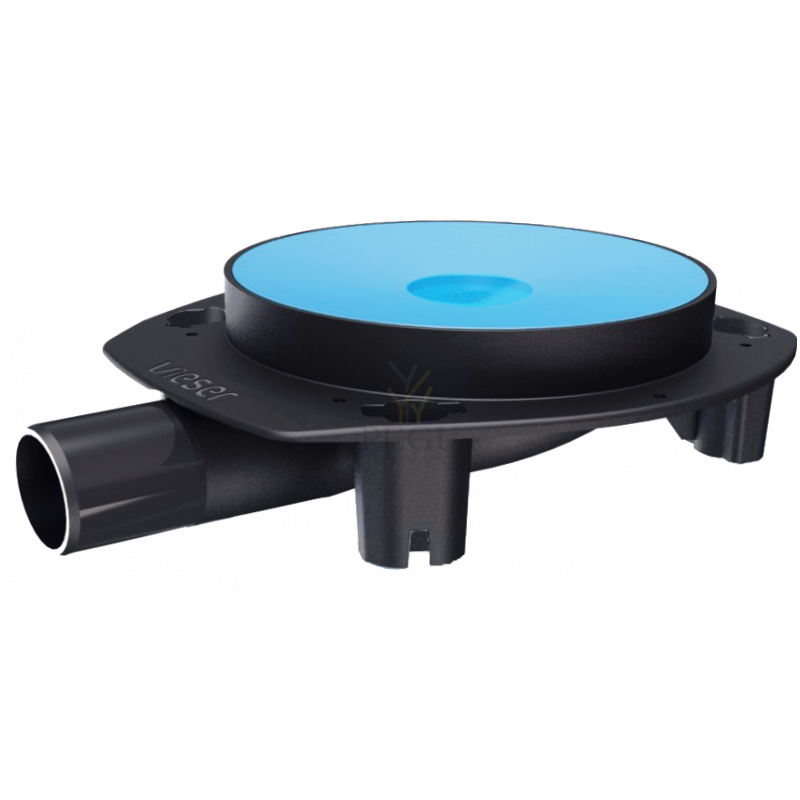

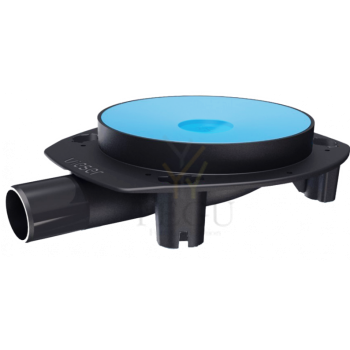

Vieser One 52641 Horisontaalne kuivtrapp 32/40
Vieser One untrapped drain DN32/40 without support legs
Suitable for sewerage systems for regular wastewater.
The Vieser One untrapped drain is part of the Vieser floor drain system.
The untrapped drain can be used with a Vieser extension rings, waterproofing flange or gratings.
The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool.
An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.
You can download water proofing pictures as a PDF & DWG file.
Vieser’s drain and cover combination comes with a 10-year system guarantee.
Vieser untrapped drain is compatible with Vieser design floor drains:
- Vieser Line (Vieser Line - Linear drain system)
- Vieser Dot (Vieser Dot - Design floor drain system)
- Vieser Square (Vieser Square - Design floor drain system)
- Vieser Corner (Vieser Corner floor drain system)
Technical specifications
The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating.
The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.
Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.
Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.
Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.
Lattiakaivon kannen lisätiedot:
- Valmistaja: LVI-Pörssi
- Kehyksen ulkomitat: 197 x 197 mm
- Korkeus 4 mm
- Materiaali: ruostumaton teräs (AISI304)
- Väri: teräs
Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.
Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.
Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.
Lattiakaivon kannen lisätiedot:
- Valmistaja: LVI-Pörssi
- Kehyksen ulkomitat: 197 x 197 mm
- Korkeus 4 mm
- Materiaali: ruostumaton teräs (AISI304)
- Väri: teräs
Vieser One 6004512 Horisontaaltrapp EXTRA madal 50 1x32 1.2L/sek
Vieser One horizontal drain DN50 1x32 extra low
The lowest floor drain on the market 69 mm
The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s The low structure is a significant benefit in both renovations and new construction.
Thanks to the efficient flow rate, the drain is suitable for use in both showers and bathtubs, and it is compatible with all Vieser drain covers and extension rings. The drain has one 32 mm side inlet.
Water trap based on membrane technology
The water trap is based on innovative membrane technology. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.
The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.
Hygienic and quiet
The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.
The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.
The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:
The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.
Technical specifications
The floor drain is compatible with Vieser extension rings, distance rings, membrane flange and gratings/covers. The drain has one 32 mm side inlet. The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.
Vieser 51208 Tõsterõngas külgavadega 3x32 mm
Vieser extension ring with side inlets 3x32mm
Compatible with all Vieser floor drains. Installed below the waterproofing.
Raises the floor drain by 66–91 mm.
Three 32-mm side inlets can be connected to the extension ring.
The package contains the extension ring, a grey lip seal and a white clamping ring.
Technical specifications
An extension ring that raises the floor drain by 66-91mm. The package contains the extension ring, a grey lip seal and a white clamping ring.
Vieser nurgatrapikaas 6005080 Corner Modern 376 x 376 x 526 RST
Roostavaba teras
Vieser Corner Modern triangular floor drain 376 x 376 x 526
An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Modern adds a personal touch and a polished look to your bathroom.
The Vieser floor drain is sold separately.
Choose the Vieser floor drain that is right for your Vieser Corner floor drain system
- Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
- Suitable for both new construction and renovations.
- To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
- The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an easy-to-use installation template.
- The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
- The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate).
- Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.
Vieser’s drain and cover combination comes with a 10-year system guarantee.
(PDF)Vieser Corner floor drain system - Tiling example
(DWG)Vieser Corner floor drain system - Tiling example
Technical specifications
The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an installation template.
To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
The Vieser floor drain is sold separately.
Choose the Vieser floor drain that is right for your Vieser Corner floor drain system
