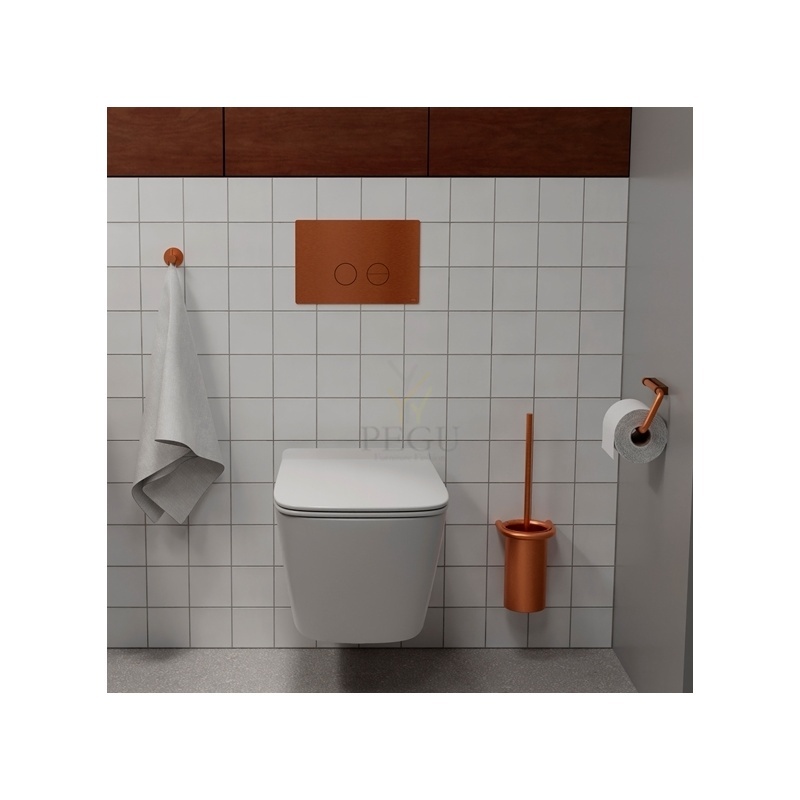

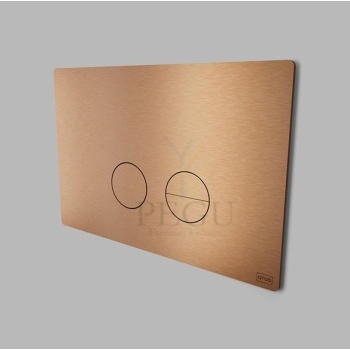

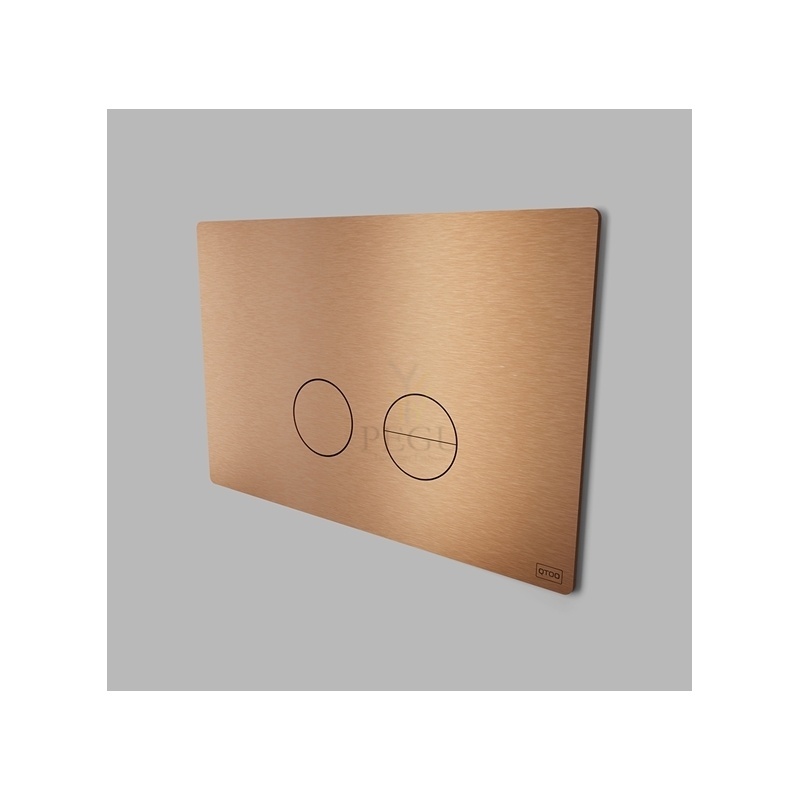

WC loputusplaat D Line Qtoo 235x155x4mm, Geberit Sigma 112 , PVD vask satiin
Kaubamärk:
Ühik: tk
Tarneaeg: 8-10 nädala
Müüja: PEGU OÜ
WC loputusplaat D Line Qtoo 235x155x4mm, Geberit Sigma 112 , PVD vask satiin
Joining our Qtoo collection of taps and shower fixtures is our take on the perfect flushing plate for your wall hung cisterns.
Staying true to our design principles ours is crafted in AISI 316 stainless steel. This is not only to uphold our 20-year product warranty, but also to offer our flushing plates in the d line colour palette to mix and match with our other collections and products.
Choose between steel, brass look (pvd), copper look (pvd) and black (pvd) in either satin or polished finish.
Dimensions: 235x155x4mm
Product:
Flushing plate for Geberit flushing mechanism
Tender text:
Qtoo collection, flushing plate for Geberit Sigma 112 flushing mechanism. Manufactured in the highest quality marine grade, AISI 316 stainless steel, protected against high levels of corrosion . 20-year warranty.
Product specification:
Dimensions: 170x255x4mm
Compatible with Geberit Sigma 112
Material: Marine grade AISI 316 stainless steel Minimum wall thickness: 24mm
Video
Failid
DESCRIPTION
TEMPOFIX 3 self-supporting frame system with electronic WC valve
Ref. 564005-464000
Please contact the sales office to check availability.
- Black powder-coated steel frame.
- Fixes to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer.
- PVC soil pipe, Ø 100mm outlet to be glued to waterproof seal, with 2 setting positions.
- Delivered pre-mounted.
- Compatible with solid walls from 10 - 120mm.
- 10-year warranty.
Fitted with a TEMPOMATIC dual control F¾" electronic direct flush valve:
- 230/6V mains supply (cable and transformer supplied).
- Satin finish stainless steel wall plate 186 x 186mm and chrome-plated metal button with integrated electronics.
- Waterproof recessing housing.
- Detection delay is 10 seconds.
- Voluntary activation (push-button with anti-blocking) or automatically when the user leaves.
- "Intelligent" automatic rinsing (flush volume adapts according to use).
- 3 programmes (rinsing volume can be set according to type of WC pan).
- Hygienic duty flush, every 24 hours (can be adjusted to 12 hours or OFF) after the last use.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate adjuster.
- Compatible with sea water and grey water.
Technical characteristics: see TEMPOMATIC dual control ref. 464SBOX-464000.
Kit contents:
(564005): frame system, soil pipe Ø 100mm, flush tube, recessed housing with cover, valve configured for system flush, vacuum breaker, stopcock, connection accessories.
(464000): control plate, transformer, collar for waterproofing, solenoid valve, cartridge.
TECHNICAL CHARACTERISTICS
TEMPOFIX 3 self-supporting frame system with electronic WC valve
Ref. 564005-464000| Supply | Mains supply 230/6V |
| Connector | ¾" |
| Technology | Electronic and time flow |
| Height | 1000 - 1320mm |
| Depth | 177mm |
| Width | 350mm |
| Finish | Satin finish stainless steel |
Delabie TEMPOMATIC WC ventiil 3/4" seina süvistav baas 6V bat kit 1/2 (liskas on vaja DE-464006)
Recessed waterproof housing for TEMPOMATIC dual control WC
Ref. 464PBOX
Flush system without cistern: directly connected to pipework.
Compatible with electronic WC valve.
CR123 6V Lithium battery-operated.
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, activation and electronic unit are all integrated and accessible from the front.
Backflow prevention device inside the housing.
Secure system flush without sensitive elements.
Outlet connection for PVC tube Ø26/32mm.
Order with control-plate reference 464006.
TECHNICAL CHARACTERISTICS
Recessed waterproof housing for TEMPOMATIC dual control WC
Ref. 464PBOX| Connector | F¾" |
| Technology | Electronic and time flow |
| Height | 150mm |
| Depth | 93 to 190mm |
| Width | 225mm |
WC loputusplaat D Line Qtoo 235x155x4mm, Geberit Sigma 112 , PVD must satiin
Flushing plate - charcoal look, satin
Joining our Qtoo collection of taps and shower fixtures is our take on the perfect flushing plate for your wall hung cisterns.
Staying true to our design principles ours is crafted in AISI 316 stainless steel. This is not only to uphold our 20-year product warranty, but also to offer our flushing plates in the d line colour palette to mix and match with our other collections and products.
Choose between steel, brass look (pvd), copper look (pvd) and black (pvd) in either satin or polished finish.
Dimensions: 235x155x4mm
Product:
Flushing plate for Geberit flushing mechanism
Tender text:
Qtoo collection, flushing plate for Geberit Sigma 112 flushing mechanism. Manufactured in the highest quality marine grade, AISI 316 stainless steel, protected against high levels of corrosion . 20-year warranty.
Product specification:
Dimensions: 170x255x4mm
Compatible with Geberit Sigma 112
Material: Marine grade AISI 316 stainless steel Minimum wall thickness: 24mm
