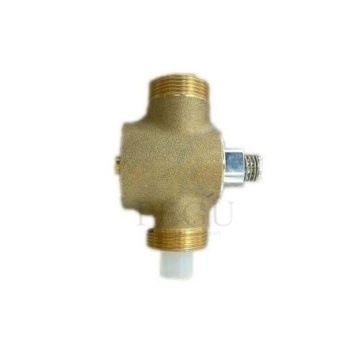

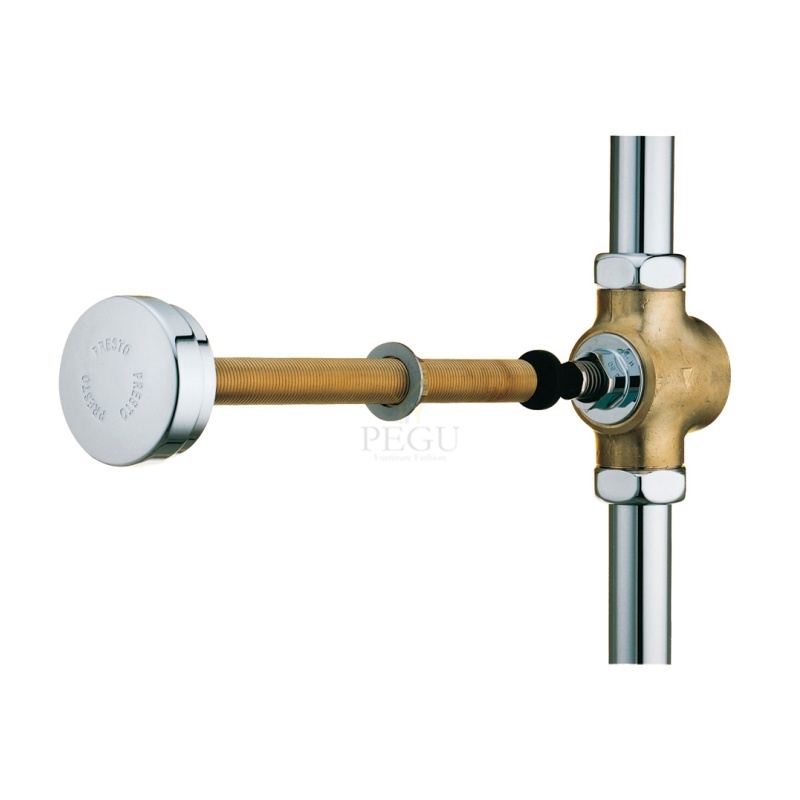

X.Eclair TC Presto ref.13120, läbi seina paigaldus,nuputa, auguta
X.Eclair TC Presto ref.13120, läbi seina paigaldus,nuputa auguta
Tagaseina auk on kini.
Recommended operating pressure: 1 to 5 bar
Flush volume: 6 to 9 l, adjustable by operating the shut-off valve Anti-water hammer device
Flow time: 7 to 9 seconds
Hydraulic supply: In line, double male G 1"1/4 (33x42) Outlet connection on flush tube Ø 32 mm
Material and colour of finish: Brass body, raw
Delivered with: 1 Flash box with syphonic action 1 Assembly instructions
Standards / Approvals : Brass body in compliance with NF EN1982 / NF EN12164 / NF EN12165 standards
Sisu
ALPA
Presto
kroom
30 sek. töötsükkel 3 bar
Sisu pedaalkraanile Presto SOL509
Presto isesulguv ventiil põlvekraanile P712 265mm P.31683
Delabie professionaalse köögisegistile pihusti-otsik 1/2" valge
White M1/2" hand spray
Ref. 433000
Scale-resistant diffuser (nozzle has no mesh).
Two jet options: rain effect - 8 lpm at 3 bar and concentrated jet - 9 lpm at 3 bar.
Reinforced polypropylene handle with non-slip grip (improved grip).
Chrome-plated solid brass.
Hand spray can be locked in open position using integrated collar.
TECHNICAL CHARACTERISTICS
White M1/2" hand spray
Ref. 433000Connector | M1/2" |
Height | 168mm |
Flow rate | 8 - 9 lpm |
Finish | Polypropylene |
Pissuaari ventiil antivandaalne Presto P12, 6 sek 1/2"
> Working pressure :
1 to 5 bar
> Flow :
9 l/min at 1 bar - 4-positions flow adjustment device Anti-water-hammering design
> Flow time :
6 seconds (± 2 sec.)
> Hydraulic supply :
In-line water inlet
M G 1/2" Inlet and outlet
> Delivered with :
1 Flat gasket and 1 Union nut 1 Nut for 12x14 tube
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
