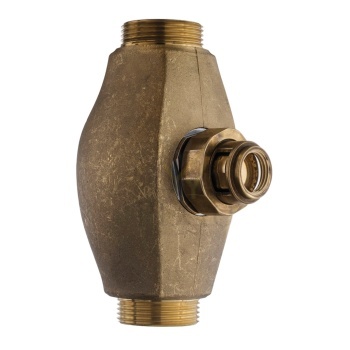

X.Eclair XL TC Presto ref.13070, läbi seina paigaldus, nuputa

X.Eclair XL TC Presto ref.13070, läbi seina paigaldus ,nuputa

Recommended operating pressure: 1 to 5 bar

Flush volume: 6 to 9 l, adjustable by operating the shut-off valve Anti-water hammer device

Flow time: 7 to 9 seconds

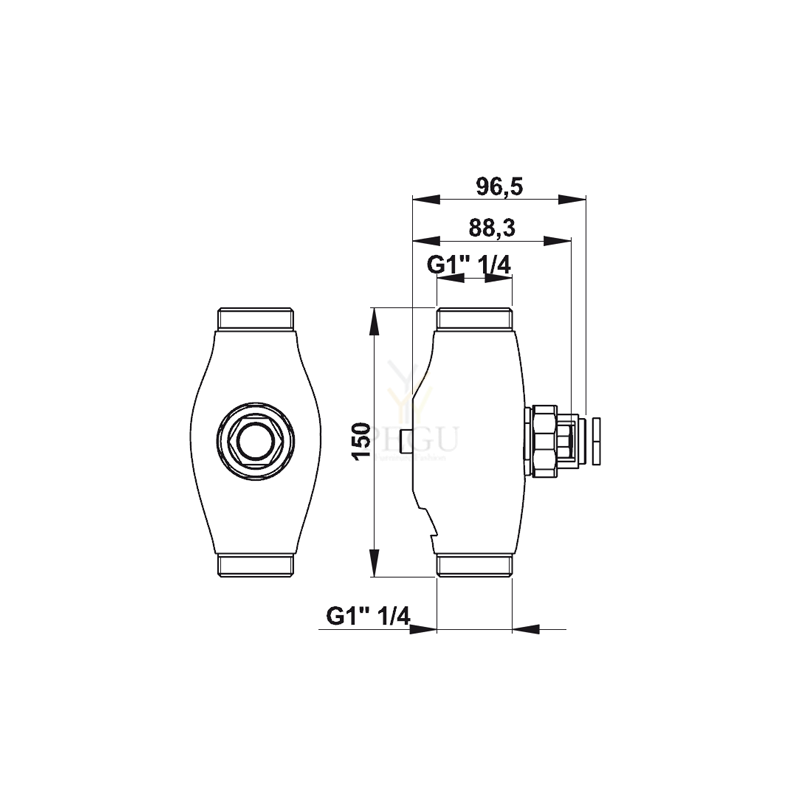

Hydraulic supply: In line, double male G 1"1/4 (33x42) Outlet connection on flush tube Ø 32 mm

Material and colour of finish: Brass body, raw

Delivered with: 1 Flash box with syphonic action 1 Assembly instructions

Standards / Approvals : Brass body in compliance with NF EN1982 / NF EN12164 / NF EN12165 standards
