Delabie

Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 815 x 620mm.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 21kg.
10-year warranty.

TECHNICAL FEATURES

MONOBLOCO S21 WC pan with cistern
Ref. 110390

Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 895 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 22kg.
10-year warranty.

TECHNICAL FEATURES

MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790

Wall-mounted washbasin, 540x480mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm for the bowl and 1.5mm for surround.
Rounded edges prevent injury.
Without tap hole.
Supplied with 1¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 4.65kg.

Wall-mounted washbasin, 620x505mm.
Suitable model for people with reduced mobility.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm for the bowl and 1.5mm for surround.
Rounded edges prevent injury.
Without tap hole.
Supplied with 1¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5kg.

Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.

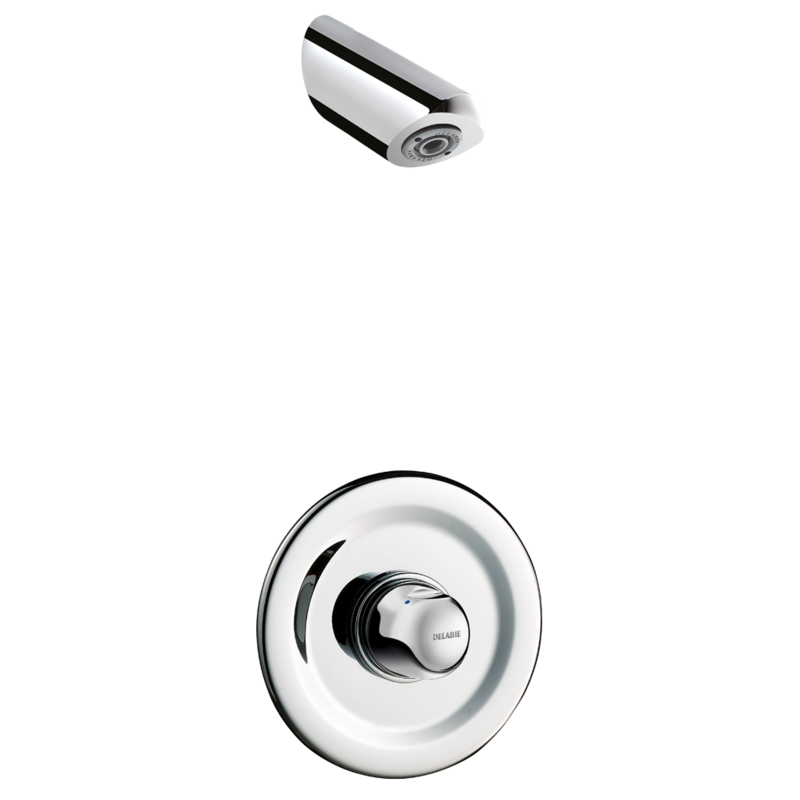

Recessed time flow shower kit:
Standard recessing housing. Recessing depth can be adjusted.
Chrome-plated wall plate Ø 195mm.Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX 3/4" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof TONIC JET shower head with scale-resistant nozzle and automatic flow rate regulation.
M1/2" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
10-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).

TECHNICAL FEATURES

TEMPOMIX shower kit
Ref. 790912

Wall-mounted wash trough for 4 posts - 2,400mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 20kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800007).

Splashback for CANAL wash trough.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Length: 2,400mm.

TECHNICAL FEATURES

Splashback 2400mm for CANAL wash trough
Ref. 100300

SPEEDJET 2 metallised anthracite two-way air pulse hand dryer.
High speed: dries in 10 to 12 seconds.
Comfort: warm air.
Antibacterial ABS for maximum hygiene.
Easy to clean and service: residual water on hands is eliminated with new automatic procedure using evaporation and sterilisation.
Features system that removes the need for a drip tray and prevents water reaching the wall or floor.
HEPA filter: prevents 99.99% of airborne bacteria.
Infrared automatic activation.
Intelligent technology: stops automatically when hands are removed.
Anti-blocking: stops automatically if used continuously for more than 30 seconds.
Dimensions: 180 x 320 x 540mm.
Weight: 7.2kg.
Energy saving: heating element stops automatically once temperature reaches > 25°C.
Low energy consumption: 1,050W in non-heating mode,1,550W in heating mode.
220-240V~ / 50-60 Hz.
Airflow: 61 l/second. Air speed: 540 km/h.
Noise level: 66 dBA.
Class II, IP21.
CE marked.

SPEEDJET 2 matte white two-way air pulse hand dryer.
High speed: dries in 10 to 12 seconds.
Comfort: warm air.
Antibacterial ABS for maximum hygiene.
Easy to clean and service: residual water on hands is eliminated with new automatic procedure using evaporation and sterilisation.
Features system that removes the need for a drip tray and prevents water reaching the wall or floor.
HEPA filter: prevents 99.99% of airborne bacteria.
Infrared automatic activation.
Intelligent technology: stops automatically when hands are removed.
Anti-blocking: stops automatically if used continuously for more than 30 seconds.
Dimensions: 180 x 320 x 540mm.
Weight: 7.2kg.
Energy saving: heating element stops automatically once temperature reaches > 25°C.
Low energy consumption: 1,050W in non-heating mode,1,550W in heating mode.
220-240V~ / 50-60 Hz.
Airflow: 61 l/second. Air speed: 540 km/h.
Noise level: 66 dBA.
Class II, IP21.
CE marked.

Automatic hand dryer.
Vandal-resistant model.
Automatically activated via optical cell.
360° rotating nozzle.
Metal thickness: 1.2mm.
Cover 304 stainless steel, bright polished finish.
Dimensions: 210 x 280 x 220mm.
Weight: 3.5kg.
Power: 2,000W. 50-60Hz.
Airflow: 95 l/second.
Low noise level: 68 dBA.
Maximum safety, Class II insulation(double electrical insulation), IP23.
CE marked, TÜV GS.

Automatic hand dryer.
Vandal-resistant model.
Automatically activated via optical cell.
360° rotating nozzle.
Metal thickness: 1.2mm.
White, enamelled cast steel cover.
Dimensions: 210 x 280 x 220mm.
Weight: 3.5kg.
Power: 2,000W.50-60 Hz.
Air flow: 95 l/sec.
Low noise level: 68 dBA.
Class II maximum security (double insulated electrical appliance), IP23.
CE, TÜV GS.

Automatic hand dryer.
Vandal-resistant model.
Automatically activated via optical cell.
360° rotating nozzle.
Metal thickness: 1.2mm.
Polished satin 304 stainless steel cover.
Dimensions: 210 x 280 x 220mm.
Weight: 3.5kg.
Power: 2,000W.50-60 Hz.
Air flow: 95 l/sec.
Low noise level: 68 dBA.
Class II maximum security (double insulated electrical appliance), IP23.
CE, TÜV GS.

HIGHFLOW air pulse hand dryer.
Robust model.
Lit central nozzle focuses the pulsed air onto hands at over 230km/h.
High speed: dries in 10 - 12 seconds.
Choice of warm or cold air via a concealed switch.
Infrared automatic activation.
Intelligent technology: stops automatically when hands are removed.
Anti-blocking: stops automatically if used continuously for more than 60 seconds.
Bacteriostatic 304 bright polished stainless steel.
Easy to clean: one-piece cover.
Stainless steel thickness: 1mm.
Dimensions: 175 x 238 x 267mm.
Weight: 4kg.
Airflow: 39 l/second.
Air speed: 230 km/h.
Low energy consumption: 1350W.
220-240 V~/50Hz.
Noise level: 70 dBA.
Class I, IP22.
CE marked.

HIGHFLOW air pulse hand dryer.
Robust model.
Lit central nozzle concentrates pulsed air onto hands at 230km/h.
High speed: dries in 10 to 12 seconds.
Choice of warm or cold air via concealed switch.
Infrared automatic activation.
Intelligent technology: stops automatically when hands are removed.
Anti-blocking: stops automatically if used continuously for more than 60 seconds.
Bacteriostatic 304 stainless steel.
Easy to clean: one-piece cover.
Stainless steel thickness: 1mm.
Dimensions: 175 x 238 x 267mm.
Weight: 4kg.
Airflow: 39 l/second.
Air speed: 230km/h.
Low energy consumption: 1,350W.
220-240V~ / 50 Hz.
Noise level: 70 dBA.
Class I, IPX1.
CE marked.

SPEEDJET metallic grey two-way air pulse hand dryer.
High speed: dries in 10 - 18 seconds.
Intelligent technology: stops automatically when hands are removed or after 18 seconds.
Removable drip tray prevents any water dripping onto the wall or floor: easy to clean and service.
ON/OFF button: easy to service.
Anti-bacterial air filter and activated carbon air filter.
Automatic activation via infrared detection.
LCD screen with animated user guide and automatic stand-by.
Dimensions: 250 x 292 x 650mm.
Weight: 11.4kg.
Brushless motor, no wear.
Energy saving: power 850W. No heating element.
220-240V~/50-60Hz.
Airflow: 42 l/second. Air speed: 310km/h.
Noise level: 75-80 dBA.
Class I, IP22.
CE marked.

Recessed time flow shower mixer with soft-touch operation:
Tamperproof chrome-plated metal wall plate 160 x 160mm.
Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Top inlet.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard pipe supply or "pipe in pipe".
- Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are integrated and can be accessed from the front.
- TEMPOMIX 3 single control mixer F½".
-Supplied in 2 kits: secure system flush without sensitive elements.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by installer).
Time flow ~30 seconds, can be adjusted.
Soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.

Cross wall time flow tap with swivel spout :
Time flow ~7 sec.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Solid chrome-plated brass body M1/2".
Control ≤ 200mm and spout ≤ 230mm cut-size.
Anti-rotating pin and back-nut. AB anti-blocking system.
AB anti-blocking system: water will flow only when the push-button is

Semi-recessed washbasin, 380x380mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Cutout diameter: 310mm.
Stainless steel thickness: 1.2mm.
Polished satin finish.
Stainless steel thickness: 1.2mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1¼" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.

TECHNICAL FEATURES

Semi-recessed QUADRA washbasin
Ref. 120650
