D Line FAT ukselink AISI 316 roostevaba teras messing
TENDER TEXT

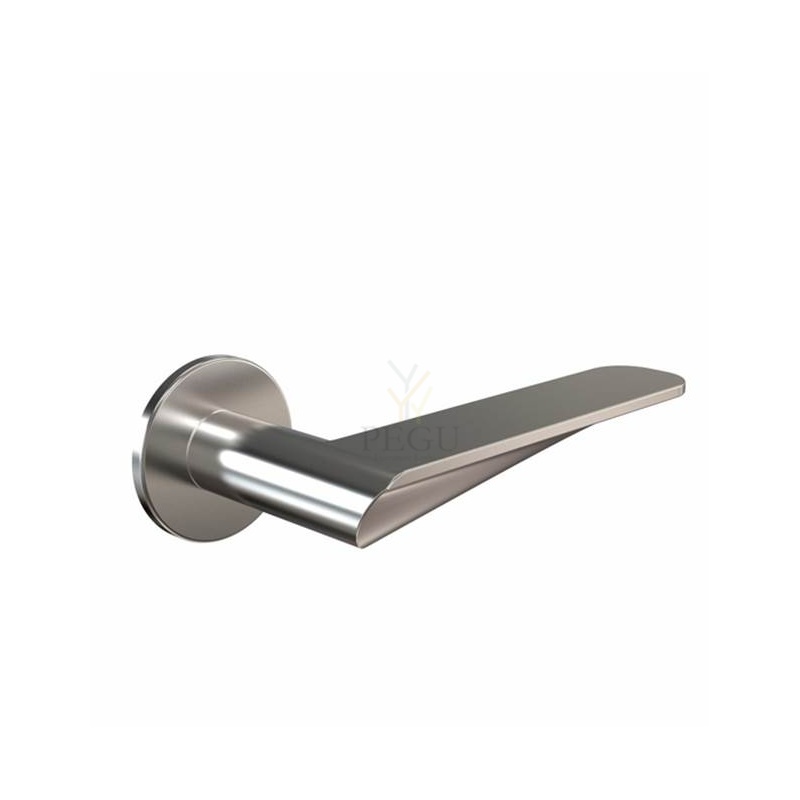

Fat lever handle. 8x8, Ø70 cc30-38, 33-59, satin. The FAT collection is a series of architectural hardware pieces designed by English industrial designer Tom Dixon. Angular and bulbous, the pieces are a testament to form following function, whilst maintaining a humorous silhouette and a reductionist aesthetic. FAT is part of a fuller series by Tom Dixon including dining chairs, bar stools and lounge chairs. Material: stainless steel AISI 316 satin finish. L:153 mm x W:82 mm x H:70 mm x D:Ø35mm.
PRODUCT SPECIFICATION
Dimensions: L:153 mm x W:82 mm x H:70 mm. Diameter : Ø35mm. Material: stainless steel AISI 316 Surface finish: satin grain 320, crafted by hand
Together with British designer Tom Dixon we’ve created FAT, a new line of hardware pieces.
Our Fat lever handle is enduringly crafted in the highly resilient AISI 316 stainless steel preferred by d line and enhanced by a 20-year product guarantee.
The Fat collection comprises a lever handle, key escutcheon and thumb turn, as well as a door knocker, pull handle, flush pull and door stop. Like the rest of the d line portfolio, each piece is minimalist enough to be timeless in its design, its beauty coming from its rounded profile and inflated silhouette, rather than from superfluous details.
Tom Dixon uses the word ‘fat’ to imply generosity and softness of form. The result lacks any trace of sharpness or angularity and is a collection of pumped-up pieces that are simply ‘fatter’ than the norm.
The collection is available in PVD charcoal, electric blue, PVD polished brass and our signature satin stainless steel.
To achieve the collection’s aesthetic, Tom Dixon has magnified the silhouette of each piece’s ‘normal’ aesthetic. That’s why the diameter of our Fat lever roses and escutcheons are Ø70mm. This means, that our Fat lever handle, escutcheons and thumb turns will match lock cases where the backset minus the rebate is a minimum of 40mm. The center distance between the lever handle and escutcheon/thumb turn should also be a minimum of 71mm. For further information, please contact us.
Wall mounted soap dispenser. 200ml. The different finishes make it easy to match with existing bathroom or kitchen interior or to brighten up a classic room with small spots of color and personality.
Suur valik kvaliteetseid segisteid ja vannitoaaksessuaare parimatelt tootjatelt! Santehnika müük soodsa hinnaga ja kiire tarnega. Vajadusel vormistame ka e-arve!
Dimensions: cca 140 x 100 x 62 mm Input voltage: 230V AC/50Hz Output voltage: stabilized 24V DC IP code: IP 55 Automatic washbasin taps and shower controls supply: 2 valves max. Automatic urinal flushing units supply: 5 valves max. Automatic toilet flushing unit supply: 4 valves max.Dimensions: cca 140 x 100 x 62 mm Input voltage: 230V AC/50Hz Output voltage: stabilized 24V DC IP code: IP 55 Automatic washbasin taps and shower controls supply: 2 valves max. Automatic urinal flushing units supply: 5 valves max. Automatic toilet flushing unit supply: 4 valves max.
Urinal Alessi with cover with a radar flushing unit, 24 V DC
Characteristics
easy installation
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01244
Code
SLP 24R
Supply specification
SLP 24R - Supply No. 01244 - ceramic urinal with radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, mounting set, siphon, plastic cover
Technical information
Dimension of mounting box: 140 x 140 x 75 mm Operating voltage: 24 V DC Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 3/4“ Water outlet: inlet fitting with a rubber sealing
Keraamiline HOME pissuaar Alessi LAUFEN radariga Sanela integreeritud adapter 230V/AC
SLP 25RZ
Urinal Alessi with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
easy installation
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01255
Code
SLP 25RZ
Supply specification
SLP 25RZ - Supply No. 01255 - ceramic urinal with radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, mounting set. siphon, power supply
Technical information
Dimension of mounting box: 140 x 140 x 75 mm Operating voltage: 230V AC/50Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 12 l/min. (inf. data) Water inlet: male thread G 3/4“ Water outlet: inlet fitting with a rubber seal
Keraamiline HOME pissuaar Alessi LAUFEN radariga Sanela, 24V DC
SLP 25R
Urinal Alessi with a radar flushing unit, 24 V DC
Characteristics
easy installation
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01254
Code
SLP 25R
Supply specification
SLP 25R - Supply No. 01254 - ceramic urinal with radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, mounting set, siphon
Technical information
Dimension of mounting box: 140 x 140 x 75 mm Operating voltage: 24 V DC Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 3/4“ Water outlet: inlet fitting with a rubber sealing
Urinal Alessi with cover with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
easy installation
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01245
Code
SLP 24RZ
Supply specification
SLP 24RZ - Supply No. 01245 - ceramic urinal with radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, mounting set, siphon, plastic cover, power supply
Technical information
Dimension of mounting box: 140 x 140 x 75 mm Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 3/4“ Water outlet: inlet fitting with a rubber sealing
Keraamiline pissuaar kaanega Vila radariga Sanela, integreeritud adapter 230V/ AC
SLP 37RZ
Urinal Vila with cover, with a radar flushing unit and with integrated power supply, 230 V AC
Characteristics
economy flushing by 1 liter of water
easy installation
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
water flow could be regulated by ball valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01375
Code
SLP 37RZ
Supply specification
SLP 37RZ - Supply No. 01375 - ceramic urinal with the radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, siphon, mounting set, plastic cover, power supply
Technical information
Mounting box dimension: 140 x 140 x 75 mm Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf.data) Water inlet: male thread G 3/4“ Water outlet: inlet fitting with a rubber sealing
Keraamiline pissuaar Antero radariga Sanela, integreeritud adapter 240V/ AC
SLP 20RZ
Urinal Antero with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
easy installation
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01205
Code
SLP 20RZ
Supply specification
SLP 20RZ - Supply No. 01205 - ceramic urinal with radar flushing unit, electromagnetic valve, connecting hoses, angle valve with a filter and check valve, inlet fitting with a rubber sealing, mounting set, power supply
Technical information
Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 1/2“ Water outlet: inlet fitting with a rubber seal
Keraamiline pissuaar Caprino Plus radariga Sanela, integreeritud adapter 230V/ AC
SLP 49RZ
Urinal Caprino Plus with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
economy flushing by 1 liter of water
easy installation by the help of paper drill template
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the ball valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01495
Code
SLP 49RZ
Supply specification
SLP 49RZ - Supply No. 01495 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template, power supply
Technical information
Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 1/2“ Water outlet: inlet fitting with a rubber sealing
Urinal Caprino with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
economy flushing by 1 liter of water
easy installation by the help of paper drill template
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal,when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01235
Code
SLP 23RZ
Supply specification
SLP 23RZ - Supply No. 01235 - ceramic urinal with radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with a filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template, power supply
Technical information
Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 1/2“ Water outlet: inlet fitting with a rubber sealing
Keraamiline pissuaar Chic radariga Sanela, integreeritud adapter 230V/ AC
SLP 27RZ
Urinal Chic with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
economy flushing by 1 liter of water
easy installation by the help of paper drill template
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01275
Code
SLP 27RZ
Supply specification
SLP 27RZ - Supply No. 01275 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber seal, siphon, paper drill template, power supply
Technical information
Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 1/2“ Water outlet: inlet fitting with a rubber sealing
Keraamiline pissuaar Domino ilma kaaneta, sensoriga, 230 V/DC
SLP 17
Urinal Domino with infra-red flushing unit, 24 V DC
Characteristics
system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
water flows after the user leaves active range
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 03
automatic hygiene flushing after 24 hours non-use
Order number
01170
Code
SLP 17
Supply specification
SLP 17 - Supply No. 01170 - ceramic urinal, flushing head with electronics, electromagnetic valve, angle valve, connecting hoses, mounting set
Technical information
Operating voltage: 24 V DC Active range: 0,6 - 0,75 m Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 1/2“ Water outlet: flushing head
Keraamiline pissuaar Golem radariga Sanela, 24V/ DC
SLP 19RS
Urinal Golem with a radar flushing unit, 24 V DC
Characteristics
economy flushing by 1 liter of water
easy installation by the help of paper drill template
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 to 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
11195
Code
SLP 19RS
SLP 19RS
Urinal Golem with a radar flushing unit, 24 V DC
Characteristics
economy flushing by 1 liter of water
easy installation by the help of paper drill template
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 to 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
11195
Code
SLP 19RS
Supply specification
SLP 19RS - Supply No. 11195 - ceramic urinal with radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template
Technical information
Operating voltage: 24 V DC Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 1/2“ Water outlet: inlet fitting with a rubber sealing
Supply specification
SLP 19RS - Supply No. 11195 - ceramic urinal with radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template
Technical information
Operating voltage: 24 V DC Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 1/2“ Water outlet: inlet fitting with a rubber sealing
Keraamiline pissuaar kaanega Arq GALA radariga Sanela, integreeritud adapter 230V/ AC
SLP 32RZ
Urinal Arq with cover with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
easy installation
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01325
Code
SLP 32RZ
Supply specification
SLP 32RZ - Supply No. 01325 - ceramic urinal with the radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and angle valve, inlet fitting with a rubber sealing, power supply
Technical information
Mounting box dimension: 140 x 140 x 75 mm Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 3/4“ Water outlet: inlet fitting with a rubber sealing
Keraamiline pissuaar Lema radariga Sanela, integreeritud adapter 230V/ AC
SLP 59RZ
Urinal Lema with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
easy installation by the help of paper drill template
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01593
Code
SLP 59RZ
Supply specification
SLP 59RZ - Supply No. 01595 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, mounting set, paper drill template, power supply
Technical information
Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 1/2“ Water outlet: inlet fitting with a rubber sealing
Keraamiline pissuaar Livo radariga Sanela, integreeritud adapter 230V/ AC
SLP 31RZ
Urinal Livo with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
economy flushing by 1 liter of water
easy installation by the help of paper drill template
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 (without the necessity to dismantle the urinal from the wall)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the ball valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01315
Code
SLP 31RZ
Supply specification
SLP 31RZ - Supply No. 01315 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber seal, siphon, mounting set, paper drill template, power supply
Technical information
Operating voltage:230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 1/2“ Water outlet: inlet fitting with a rubber sealing
Keraamiline pissuaar Roca Zoom radariga Sanela, integreeritud adapter 230V/ AC
SLP 35RZ
Urinal Roca Zoom with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
economy flushing by 1 liter of water
easy installation by the help of paper drill template
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the ball valve
radar flushing unit recharges a water to the siphon after each flushing
Code
SLP 35RZ
Order number
01355
Supply specification
SLP 35RZ - Supply No. 01355 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, paper drill template, power supply
Technical information
Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 1/2“ Water outlet: inlet fitting with a rubber sealing
Keraamiline pissuaar Vila ilma kaaneta, radariga, 230 V/ AC
SLP 12RZ
Urinal Vila without cover with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
economy flushing by 1 liter of water
easy installation
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
water flow could be regulated by ball valve
radar flushing unit recharges a water to the siphon after each flushing
Order number
01125
Code
SLP 12RZ
Supply specification
SLP 12RZ - Supply No. 01125 - ceramic urinal with the radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, siphon, mounting set, power supply
Technical information
Mounting box dimension: 140 x 140 x 75 mm Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf.data) Water inlet: male thread G 3/4“ Water outlet: inlet fitting with a rubber sealing
easy installation by the help of paper drill template
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing
Code
SLP 82RZ
Order number
01822
Supply specification
SLP 82RZ - Supply No. 01822 - ceramic urinal with the radar flushing unit, electromagnetic valve, connecting hoses, angle valve, inlet fitting, siphon, paper drill template, mounting set, power supply
Technical information
Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 1/2“ Water outlet: inlet fitting
time-controlled flushing unit for urinal troughs SLPN 02(Z) - 05(Z)
adjustable flushing time 0,5 - 15,5 s, standard 5 s
parameters adjustment by remote control SLD 04
adjustable flushing interval 10 min - 3 days, standard 1 h
after switch on the power supply 230 V AC, SLP 01Z starts to flush in adjusted interval
Order number
01011
Code
SLP 01Z
Supply specification
SLP 01Z - Supply No. 01011 stainless steel cover with electronics, stainless steel mounting box with brass screw coupling, power supply, remote control SLD 04
Technical information
Stainless steel cover dimension: 170 x 170 x 10 mm Mounting box dimension: 145 x 155 x 100 mm Operating voltage: 230 V AC/50 Hz Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 40 l/min (inf. data) Water inlet: male thread G 1“ Water outlet: male thread G 1“
ready to install for ALLIA urinal reference Satolas ready to install for DURAVIT urinal reference Ben / Katja / Pago // Jim / Starck 3 ready to install for IDEAL STANDARD urinal reference Esprit / San/ Remo ready to install for JACOB DELAFON urinal reference Kerax ready to install for LAUFEN urinal reference Caprino / Como ready to install for PORCHER urinal reference 2691 ready to install for ROCA urinal reference Mural / Urito ready to install for SELLES urinal reference Euroline 8645 / 8620/ / Mistral ready to install for SPHINX urinal reference Eurobase 75 / 85 // Europa 85 ready to install for VILLEROY & BOCH urinal reference Targa/ pro ready to install for VILLEROY & BOCH urinal reference Architect ready to install for VITRA urinal reference Architek
> Delivered with:
1 PRESTO 12, urinal valve compatible NF 1 Equipped pipe 1/2" with water effect 1 Flat gasket 1 Nut
1 Loose wall flange Instruction manual
> Standards & approvals:
Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Pissuaari mehhanism infra-red paigalduse karbiga, 24 V DC
SLP 02K
Urinal infra-red flushing unit with a mounting box, 24 V DC
Characteristics
system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
water flows after the user leaves active range
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 03
automatic hygiene flushing after 24 hours non-use
possibility to regulate a water flow by the ball valve
Order number
01022
Code
SLP 02K
Supply specification
SLP 02K - Supply No. 01022 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve
Technical information
Stainless steel cover dimension: 170 x 170 x 10 mm Mounting box dimension:140 x 140 x 75 mm Operating voltage: 24 V DC Active range: 0,6 - 0,75 m Recommended flow pressure: 0,1 - 0,6 MPa Rate of flow: 18 l/min (inf. data) Water inlet: male thread G 3/4“ Water outlet: male thread G 3/4“
