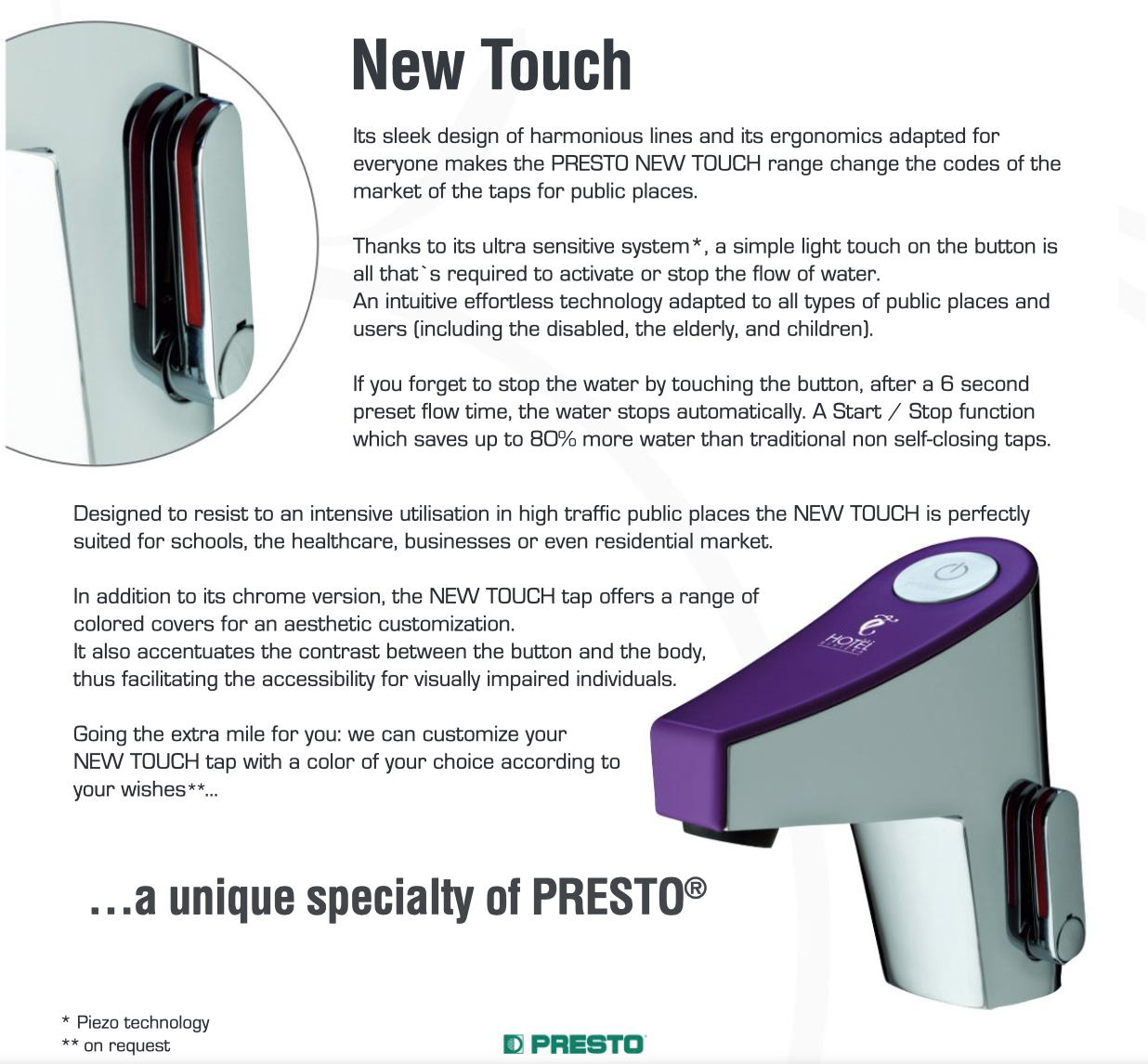

UUDIS! Presto segistid NEW TOUCH
> Working pressure :
1 to 5 bar
> Flow :
3l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design
> Flow time :
6 seconds (Adjustable from 1 s to 5 min) and Start/Stop function Duration and frequency of the "duty flush" function adjustable
> Hydraulic supply :
G 3/8'' (12x17)
> Power supply :
Integrated 6V CRP2 lithium battery
> Material and colour finish :
Chrome-plated metal alloy components Injected molded metal body and cover
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Temperature limiting system to avoid any risk of scalding Automatic shutdown of solenoid valve in case of power failure
> Delivered with :
2 PEX Hose Flexible with 3/8" Female Nut (12x17) and NF certified non return valve 2 strainer within a brass socket
2 Straight stop valves G 3/8" (12x17)
1 Fixing bracket
1 Flange gasket
1 Fastening nut Instruction manual
> Standards & approvals :
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
