Обязательно указать в спецификации проекта : PEGU OÜ
Бесконтактный сенсорный кран для раковины PRESTO Linea 3l/min 230V
Sensoriga kraan valamule kontaktivaba PRESTO Linea 64679 3l/min 230V
Range: PRESTO LINEA®

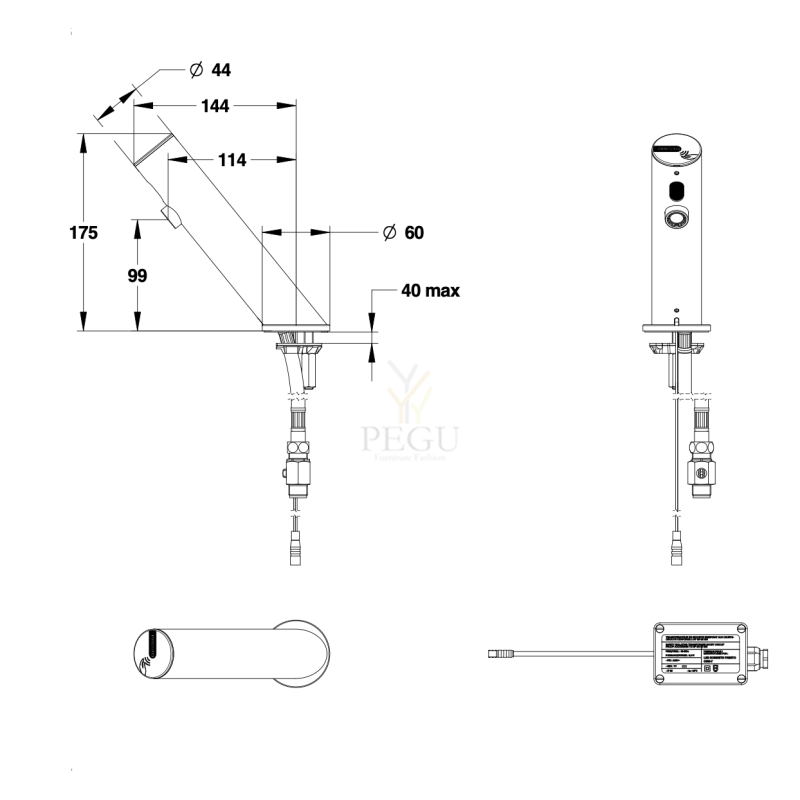

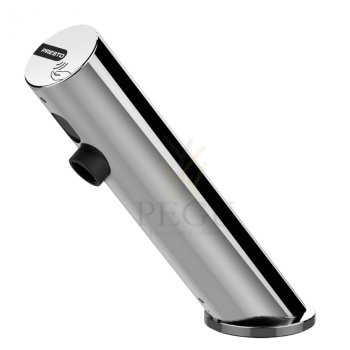

Ref: 57200 - Deck-mounted sensor single tap for washbasin, mains 230V, 3l/min with stop valve
> Working pressure:
1 to 5 bar
> Function:
Starts and stops automatically by hand detection
Sensor trigger suitable for PRM, elderly, children and disabled people
> Flow:
3l/min at 3 bar with integrated regulated anti-limescale aerator
> Hydraulic supply:
F G 3/8" (12x17) hose
> Power supply:
Mains-operated with 230 V AC / 7 V DC transformer in IP65 waterproof case
> Material and colour finish:
Chrome-plated brass body with smooth inside body Chrome-plated molded metal cover
> Thermal resistance:
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security:
Anti-overflow security time set to 30 seconds preventing the water to flow continuously Automatic shutdown of solenoid valve in case of power failure or sensor damage
Duty flush 30 sec every 24h after last use (adjustable flow time and frequency)
Low battery alert (blinking led light)
> Installation:
Recommended installation : 30 cm minimum between the sensor and the basin
> Delivered with:
1 Brass clamping nut, 1 Gasket and 1 WasheTr
1 PEX hose with revolving nut and filter gasket
1 M M G 3/8" (12x17) stop valve
1 Self-adhesive sticker
1 Instruction manual
> Standards & approvals:
Brass body in accordance with NF EN1982, EN12164, NF EN 12165,
UBA list compliant
200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
• Winner of a Red Dot Design Award!
• Holds approx. 9,5 dl liquid soap (= 800-950 doses).
• Battery-operated. Connection to power supply via a transformer.
• An intelligent sensor automatically sets the best sensor range.
• LED light indicates when dispenser is in use.
• Comes in trendy matt black and classic white as standard.
• Also available in all RAL colours and coated with different prints.
• Top plate in 6 optional standard designs.
• 2-year warranty.
| SPECIFICATIONS | |
|---|---|
| Product number: | 3056 / EAN no. 5-709818-030562 |
| Technical data: |
Touch-free soap dispenser for liquid soap/disinfectant. Matt black steel housing (RAL 9005, gloss 3). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
|
| Dimensions | H: 330 mm, W: 139 mm, D: 127 mm |
| Net Weight: | 2.3 kg |
automatic washing system for wellingtons with jets - 12V, 50Hz
| Radius of sensor | 0 – 0,4 m |
| Water inlet | G 1/2“ |
| Water pressure | 0,3 – 1,0 MPa |
| Outlet | d = 32 mm |
| Inner dimensions of the trough | 250 x 400 x 280 mm |
| Electricity protection | IP 55 |
| Power supply | 12 V, 50 Hz |
| Power requirement | 10 VA |
| Source of power supply | ZAC 1/20 (max. 2 x AMO 01) |
| ZAC 1/50 (max. 5 x AMO 01) | |
| Weight | 18 kg |
DAN DRYER WaterTap is with automatic sensor for touch-free operation is a hygienic solution for all private and commercial washrooms.
The water faucet is part of a complete product line, which also includes hand dryer and soap dispenser. The product line is available for either deck or wall mounting.
The water tap features a minimalist, modern design in stainless steel with satin finish. It is easy to operate and to clean.
• Wall mounting.
• Activation distance adjustable between 20-120 mm.
• Water pressure: 10-15 PSI.
• Water flow less than 3,8 l/m.
• Stainless steel with satin finish.
• Infra-red sensor and elektronic timer.
• 2-year warranty.
Бесконтактный водяной кран+дозатор для мыла MWS straight
Multifunctional touchless faucet, water and soap in one unit, countertop integration.
Simple Touchless operation, the untouchable™ makes use of an elegant infrared interface, operated through a simple process: select above, receive under. By swiping above the untouchable™ - in any direction - the dispenser cycles through the available liquids. When a desired liquid is selected, the hand is simply placed under the faucet. Compatible with 1,000 ml standard Euro bottles, suitable for low-viscosity soaps and lotions, refillable using bottles with wide neck, dosage (depending on viscosity): soap approx. 2 ml, value can be changed on request before delivery
| Stainless steel, ground | ||
| Water | ||
| Refillable | ||
| 1000 ml | ||
| Liquid soaps | ||
| Touchless |
Stainless steel KEG urinal with infra-red flushing unit, 24 V DC
| Code | SLPN 10E |
Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"
