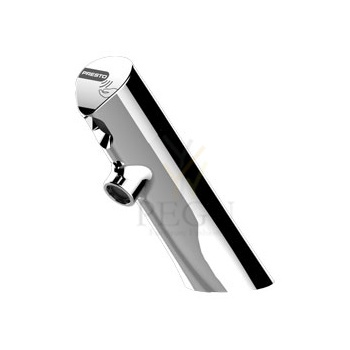

Бесконтактный сенсорный кран для раковины PRESTO SAFE 64681 ECO 1.9 l/min

Артикул: P64681
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
341,60 €
Kuumakse alates: 29,12 €
Кол-во: - +
   - или -

PRESTO SAFE

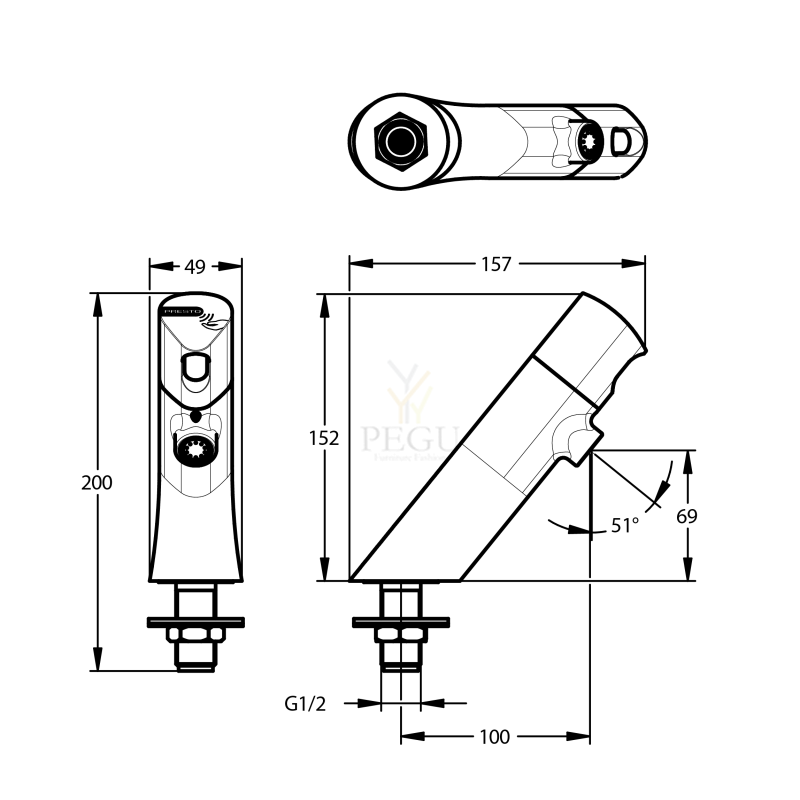

Ref: 64681 - Single deck-mounted sensor tap - 1,9l/min



> Working pressure :

2 to 5 bar

> Flow :

1.9 l/min with integrated spray flow regulator High quality anti-limescale aerator Anti-water-hammering design

> Flow time:

7 sec adjustable with PRESTOCOM : http://www.presto.fr/whatabout/prestocom/ Sensor trigger suitable for elderly and disabled people

> Hydraulic supply :

G 1/2" (15x21) - Cold or premixed water

> Power supply :

Integrated 9Vlithium battery

> Material and colour finish :

Brass body Chrome finishing

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Automatic shutdown of solenoid valve in case of power failure or sensor error Duty flush 30 sec each 24h after last use (adjustable flow time and frequency) Low battery alert (blinking led light)

> Delivered with :

1 Brass clamping nut
1 Gasket and 1 Washer 1 Filter gasket
1 Self-adhesive sticker Instruction manual

> Standards & approvals :

Brass body in accordance with NF EN1982, EN12164, NF EN 12165, UBA list compliant 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
ACS

Видео



Схожие продукты

Tradition

Käsidušš

Tootekood Viimistlus Seeria

7656700 EAN Nr.: 5708516710561 Kroom
Tradition

Standardomadused:

Veesäästu funktsioon Eco-Save 1 pihustusviis

Артикул: D7656700 ,   Время доставки: 7-14 дней
72,16 € (12%)
82,00 €
Артикул: P70573 ,   Время доставки: 7 дней
92,52 €

Töötsükkel 15 sek

Артикул: P68400 ,   Время доставки: 14 дней
315,00 €

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Comes in trendy matt black and classic white as standard.

• Also available in all RAL colours and coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3050 / EAN no. 5-709818-030500
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. White-painted steel housing (RAL 9003, gloss 60). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Артикул: DAN3050 92 ,   Время доставки: 14-21 день
444,28 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
375,00 €
